PPPC211 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HDR 21POS 0.1 GOLD PCB R/A

Part	Contact Finish Thickness - Post	Insulation Material	Contact Material	Contact Shape	Pitch - Mating	Pitch - Mating	Fastening Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Current Rating (Amps)	Contact Finish - Mating	Termination	Insulation Color	Number of Positions	Voltage Rating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Material Flammability Rating	Insulation Height	Insulation Height	Mounting Type	Connector Type	Contact Type	Contact Length - Post [x]	Contact Length - Post [x]

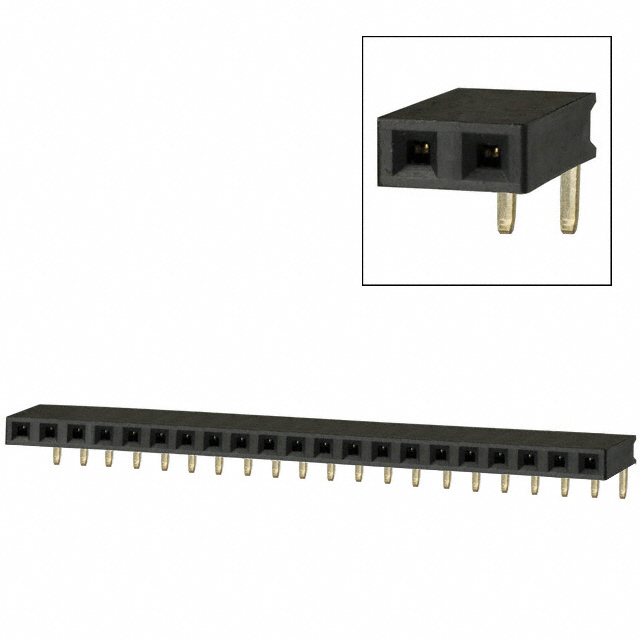

Sullins Connector Solutions PPPC211LGBN	Flash	Polyester	Phosphor Bronze	Square	0.1 "	2.54 mm	Push-Pull	1	-40 C	105 ░C	All	3 A	Gold	Solder	Black	21	250 V	Flash	0.124 in	3.15 mm	Gold	UL94 V-0	0.1 in	2.54 mm	Right Angle Through Hole	Header	Female Socket

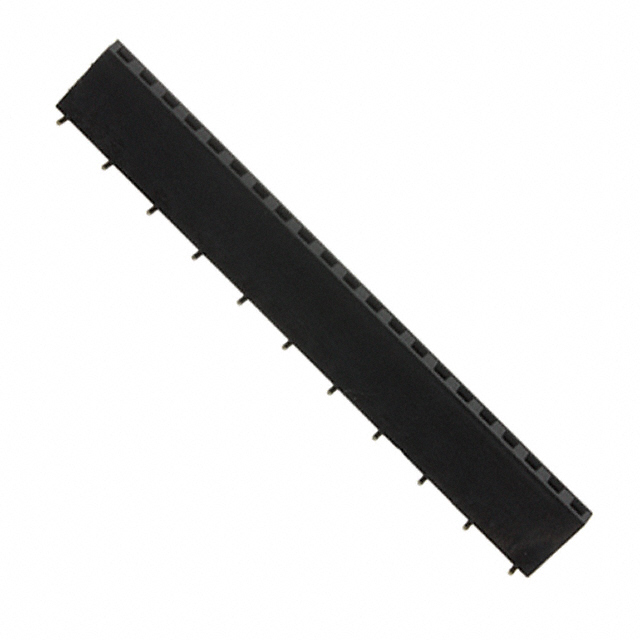

Sullins Connector Solutions PPPC211KFXC	Flash	Polyester	Phosphor Bronze	Square	0.1 "	2.54 mm	Push-Pull	1	-40 C	105 ░C	All	3 A	Gold	Solder	Black	21	250 V	Flash			Gold	UL94 V-0	0.28 in	7.1 mm	Surface Mount	Header Top or Bottom Entry	Female Socket
Sullins Connector Solutions PPPC211LGBN-RC	Flash	Polyester	Phosphor Bronze	Square	0.1 "	2.54 mm	Push-Pull	1	-40 C	105 ░C	All	3 A	Gold	Solder	Black	21	250 V	Flash	0.124 in	3.15 mm	Gold	UL94 V-0	0.1 in	2.54 mm	Right Angle Through Hole	Header	Female Socket

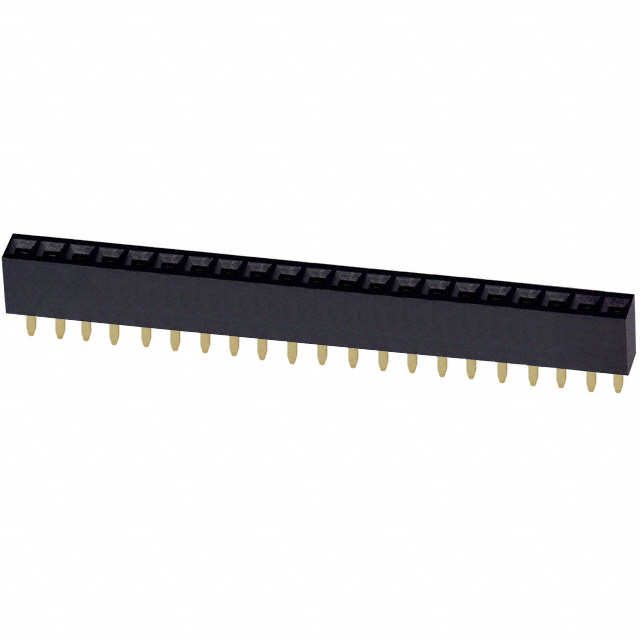

Sullins Connector Solutions PPPC211LFBN	Flash	Polyester	Phosphor Bronze	Square	0.1 "	2.54 mm	Push-Pull	1	-40 C	105 ░C	All	3 A	Gold	Solder	Black	21	250 V	Flash			Gold	UL94 V-0	0.335 "	8.51 mm	Through Hole	Header	Female Socket	0.126 "	3.2 mm
Sullins Connector Solutions PPPC211LFBN-RC	Flash	Polyester	Phosphor Bronze	Square	0.1 "	2.54 mm	Push-Pull	1	-40 C	105 ░C	All	3 A	Gold	Solder	Black	21	250 V	Flash			Gold	UL94 V-0	0.335 "	8.51 mm	Through Hole	Header	Female Socket	0.126 "	3.2 mm
