629W5W Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN D-SUB PLUG 5POS R/A SLDR
| Part | Voltage Rating | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Color | Shell Material, Finish | Connector Style | Number of Positions | Features | Connector Type | Material Flammability Rating | Contact Finish | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Ingress Protection | Shell Size, Connector Layout [x] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Current Rating (Amps) | Contact Type | Mounting Type | Flange Feature | Flange Feature | Termination | Contact Finish Thickness | Shell Size, Connector Layout | Current Rating (Amps) | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

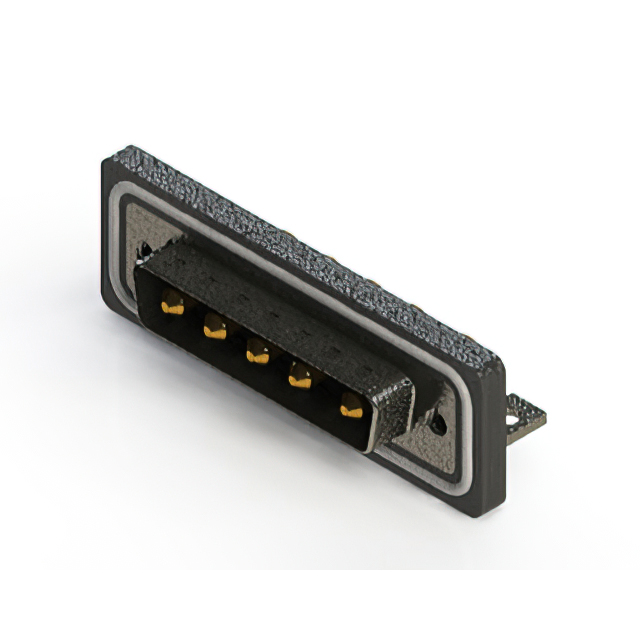

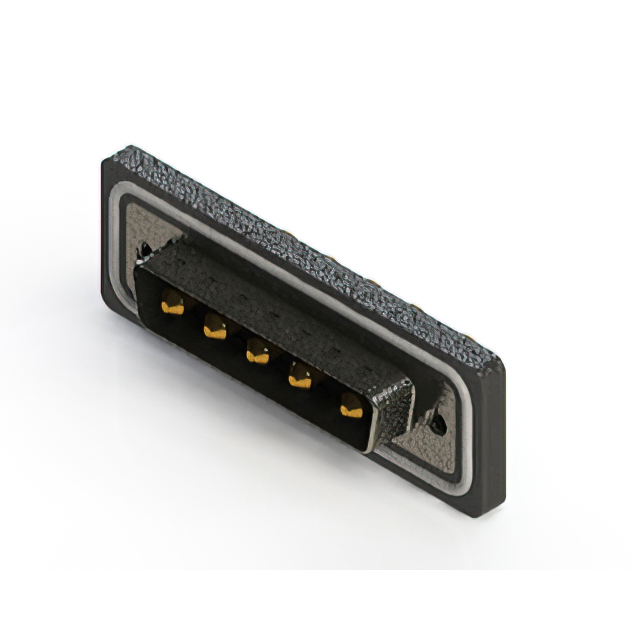

 EDAC Inc. | 125 VDC | Copper Alloy | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Black | Nickel Plated Steel | Combo D-Sub | 5 | Grounding Indents Shielded | Plug Male Pins | UL94 V-0 | Gold | 1 | 0.38 µm | 15 µin | IP67 - Dust Tight Waterproof | 3 | DB B | 5W5 | 30 A | Power | Panel Mount Right Angle Through Hole | Housing/Shell | 4-40 | Solder | ||||
 EDAC Inc. | 125 VDC | Copper Alloy | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Black | Nickel Plated Steel | Combo D-Sub | 5 | Board Lock Filter Grounding Indents Mounting Brackets Shielded | Plug Male Pins | UL94 V-0 | Gold | 1 | 0.38 µm | 15 µin | IP67 - Dust Tight Waterproof | 3 | DB B | 5W5 | 30 A | Power | Panel Mount Right Angle Through Hole | Housing/Shell (M3) | Solder | |||||
 EDAC Inc. | 125 VDC | Copper Alloy | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Black | Nickel Plated Steel | Combo D-Sub | 5 | Board Lock Filter Grounding Indents Mounting Brackets Shielded | Plug Male Pins | UL94 V-0 | Gold | 1 | IP67 - Dust Tight Waterproof | 3 | DB B | 5W5 | 20 A | Power | Panel Mount Right Angle Through Hole | Housing/Shell (M3) | Solder | Flash | ||||||
 EDAC Inc. | 125 VDC | Copper Alloy | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Black | Nickel Plated Steel | Combo D-Sub | 5 | Grounding Indents Mounting Brackets Shielded | Plug Male Pins | UL94 V-0 | Gold | 1 | 0.38 µm | 15 µin | IP67 - Dust Tight Waterproof | 3 | DB B | 5W5 | 30 A | Power | Panel Mount Right Angle Through Hole | Housing/Shell | 4-40 | Solder | ||||
 EDAC Inc. | 125 VDC | Copper Alloy | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Black | Nickel Plated Steel | Combo D-Sub | 5 | Board Lock Grounding Indents Mounting Brackets Shielded | Plug Male Pins | UL94 V-0 | Gold | 1 | 0.38 µm | 15 µin | IP67 - Dust Tight Waterproof | 3 | DB B | 5W5 | 30 A | Power | Panel Mount Right Angle Through Hole | Housing/Shell | 4-40 | Solder | ||||
 EDAC Inc. | 125 VDC | Copper Alloy | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Black | Nickel Plated Steel | Combo D-Sub | 5 | Grounding Indents Shielded | Plug Male Pins | UL94 V-0 | Gold | 1 | IP67 - Dust Tight Waterproof | 3 | DB B | 5W5 | 40 A | Power | Panel Mount Right Angle Through Hole | Housing/Shell (M3) | Solder | Flash | ||||||

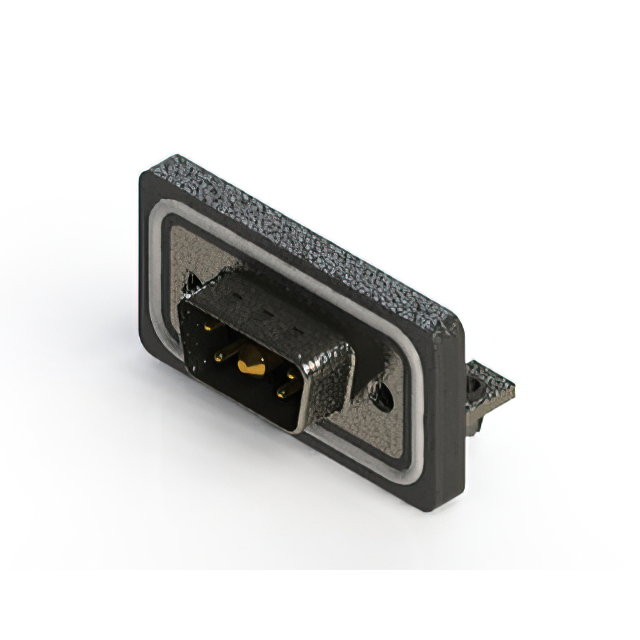

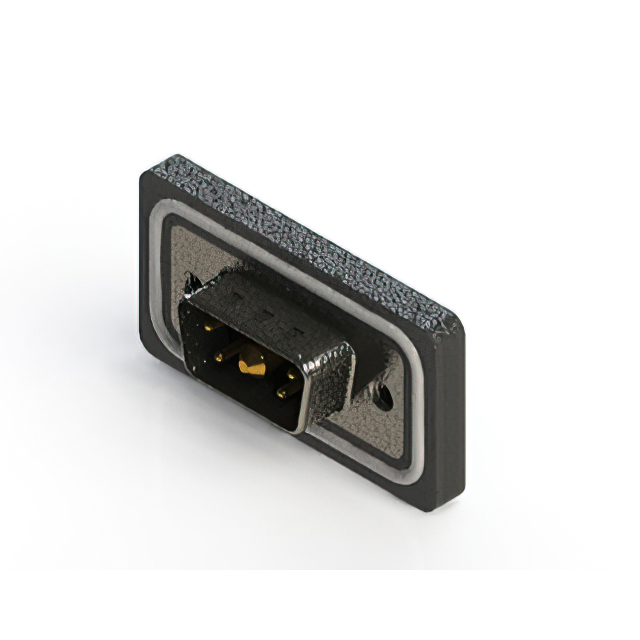

 EDAC Inc. | 125 VDC | Copper Alloy | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Black | Nickel Plated Steel | Combo D-Sub | 5 | Board Lock Grounding Indents Mounting Brackets Shielded | Plug Male Pins | UL94 V-0 | Gold | IP67 - Dust Tight Waterproof | 5W1 DE E | Signal and Power | Panel Mount Right Angle Through Hole | Housing/Shell | 4-40 | Solder | Flash | 1 | 10A 5A | 2 | ||||||
 EDAC Inc. | 125 VDC | Copper Alloy | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Black | Nickel Plated Steel | Combo D-Sub | 5 | Grounding Indents Shielded | Plug Male Pins | UL94 V-0 | Gold | 0.127 µm | 5 µin | IP67 - Dust Tight Waterproof | 5W1 DE E | 5 A 40 A | Signal and Power | Panel Mount Right Angle Through Hole | Housing/Shell (M3) | Solder | 1 | 2 | ||||||
 EDAC Inc. | 125 VDC | Copper Alloy | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Black | Nickel Plated Steel | Combo D-Sub | 5 | Board Lock Filter Grounding Indents Mounting Brackets Shielded | Plug Male Pins | UL94 V-0 | Gold | 0.38 µm | 15 µin | IP67 - Dust Tight Waterproof | 5W1 DE E | 5 A 30 A | Signal and Power | Panel Mount Right Angle Through Hole | Housing/Shell (M3) | Solder | 1 | 2 | ||||||
 EDAC Inc. | 125 VDC | Copper Alloy | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Black | Nickel Plated Steel | Combo D-Sub | 5 | Grounding Indents Shielded | Plug Male Pins | UL94 V-0 | Gold | IP67 - Dust Tight Waterproof | 5W1 DE E | 5 A 30 A | Signal and Power | Panel Mount Right Angle Through Hole | Housing/Shell | 4-40 | Solder | Flash | 1 | 2 |
