820-A Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

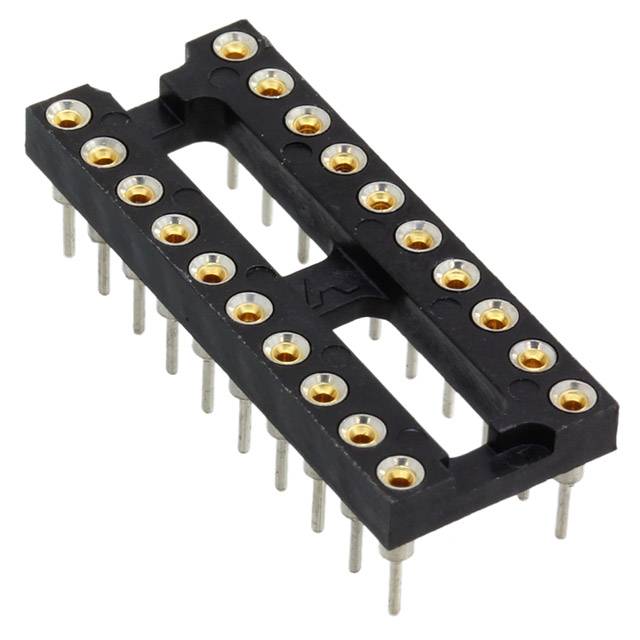

CONN IC DIP SOCKET 20POS GOLD
| Part | Termination Post Length | Termination Post Length | Material Flammability Rating | Contact Resistance | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Type | Type | Type | Number of Positions or Pins (Grid) | Pitch - Post | Pitch - Post | Contact Material - Mating | Contact Finish - Mating | Termination | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Contact Material - Post [custom] | Features | Housing Material | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.125 in | 3.18 mm | UL94 V-0 | 10 mOhm | 3 A | -55 C | 105 ░C | 7.62 mm | 0.3 in | DIP | 20 | 0.1 in | 2.54 mm | Copper Alloy | Gold | Solder | Tin-Lead | 0.1 " | 2.54 mm | Copper Alloy | Open Frame | Polyester | Through Hole |
