1032A Series
Manufacturer: Belden Inc.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

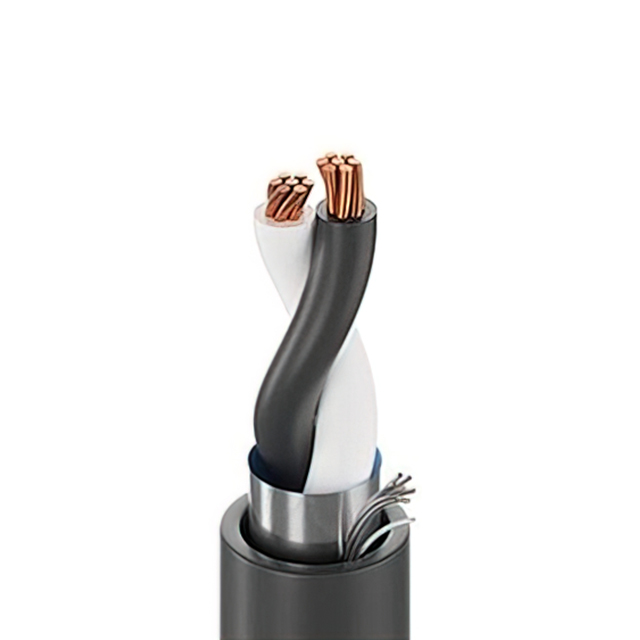

CABLE 2 COND 18AWG BLACK
| Part | Shield Coverage | Shield Material | Conductor Insulation | Jacket (Insulation) Thickness | Number of Conductors | Conductor Arrangement | Number of Conductors - Pair | Shield Type | Cable Type | Jacket (Insulation) Diameter | Conductor Material | Jacket Color | Length | Wire Gauge | Jacket (Insulation) Material | Conductor Strand Gauge | Conductor Strand Count | Operating Temperature (Min) | Operating Temperature (Max) | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Poly-Vinyl Chloride (PVC) | 0.037 in | 2 | Twisted | 1 | Foil | Conductor Multi | 0.237 in | Bare Copper | Black | 10000 ft | 18 AWG | Poly-Vinyl Chloride (PVC) | 26 AWG | 7 Strands | -30 °C | 105 °C | |
 Belden Inc. | 100 % | Aluminum | Poly-Vinyl Chloride (PVC) | 0.037 in | 2 | Twisted | 1 | Foil | Conductor Multi | 0.237 in | Bare Copper | Black | 1000 ft | 18 AWG | Poly-Vinyl Chloride (PVC) | 26 AWG | 7 Strands | -30 °C | 105 °C | 2464 Style UL |
Belden Inc. | 100 % | Aluminum | Poly-Vinyl Chloride (PVC) | 0.037 in | 2 | Twisted | 1 | Foil | Conductor Multi | 0.237 in | Bare Copper | Blue | 1000 ft | 18 AWG | Poly-Vinyl Chloride (PVC) | 26 AWG | 7 Strands | -30 °C | 105 °C | |
 Belden Inc. | 100 % | Aluminum | Poly-Vinyl Chloride (PVC) | 0.037 in | 2 | Twisted | 1 | Foil | Conductor Multi | 0.237 in | Bare Copper | Blue | 10000 ft | 18 AWG | Poly-Vinyl Chloride (PVC) | 26 AWG | 7 Strands | -30 °C | 105 °C |
