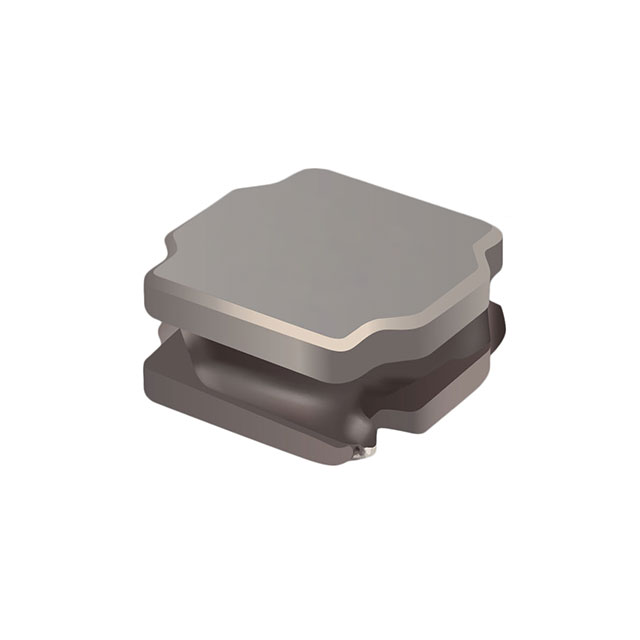

SRN8040TA Series

Catalog

IND,8X8X3.7MM,3.6UH30%,6.4A,SEMI-SHD,SMD /TAPE & REEL - 13" REEL

Part	Ratings	Package / Case	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max)	Height - Seated (Max) [Max]	Material - Core	Inductance	Inductance Frequency - Test	Tolerance	Shielding	Frequency - Self Resonant	Current - Saturation (Isat)	DC Resistance (DCR)	Q @ Freq	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current Rating (Amps)	Q @ Freq [custom]	Q @ Freq [custom]
Bourns Inc. SRN8040TA-3R6Y	AEC-Q200	Nonstandard	Drum Core Wirewound	8 mm	0.315 in	8 mm	0.315 in	Surface Mount	-55 C	125 °C	4 mm	0.157 in	Ferrite	3.6 µH	1 MHz	30 %	Shielded
Bourns Inc. SRN8040TA-R50Y	AEC-Q200	Nonstandard	Drum Core Wirewound	8 mm	0.315 in	8 mm	0.315 in	Surface Mount	-55 C	125 °C			Ferrite	500 nH	1 MHz	30 %	Shielded	165 MHz	17 A	5.5 mOhm	1 MHz 20	4.5 mm	0.177 in	12 Amps
Bourns Inc. SRN8040TA-560M	AEC-Q200	Nonstandard	Drum Core Wirewound	8 mm	0.315 in	8 mm	0.315 in	Surface Mount	-55 C	125 °C			Ferrite	56 µH	1 MHz	20 %	Shielded	10.5 MHz	1.9 A	160 mOhm	1 MHz 12	4.5 mm	0.177 in	1.75 A
Bourns Inc. SRN8040TA-1R0Y	AEC-Q200	Nonstandard	Drum Core Wirewound	8 mm	0.315 in	8 mm	0.315 in	Surface Mount	-55 C	125 °C			Ferrite	1 µH	1 MHz	30 %	Shielded	85 MHz		8.2 mOhm	1 MHz 15	4.5 mm	0.177 in	8.5 A
Bourns Inc. SRN8040TA-151M	AEC-Q200	Nonstandard	Drum Core Wirewound	8 mm	0.315 in	8 mm	0.315 in	Surface Mount	-55 C	125 °C			Ferrite	150 µH	1 MHz	20 %	Shielded	7 MHz	1.2 A	410 mOhm		4.5 mm	0.177 in	0.98 A	1 MHz	10
Bourns Inc. SRN8040TA-221M	AEC-Q200	Nonstandard	Drum Core Wirewound	8 mm	0.315 in	8 mm	0.315 in	Surface Mount	-55 C	125 °C			Ferrite	220 µH	1 MHz	20 %	Shielded	5.5 MHz	990 mA	610 mOhm		4.5 mm	0.177 in	0.85 A	1 MHz	10
Bourns Inc. SRN8040TA-100M	AEC-Q200	Nonstandard	Drum Core Wirewound	8 mm	0.315 in	8 mm	0.315 in	Surface Mount	-55 C	125 °C			Ferrite	10 µH	1 MHz	20 %	Shielded	25 MHz	5 A	33 mOhm	1 MHz 15	4.5 mm	0.177 in	4.6 A
Bourns Inc. SRN8040TA-1R5Y	AEC-Q200	Nonstandard	Drum Core Wirewound	8 mm	0.315 in	8 mm	0.315 in	Surface Mount	-55 C	125 °C			Ferrite	1.5 µH	1 MHz	30 %	Shielded	66 MHz	11.5 A	10 mOhm	1 MHz 15	4.5 mm	0.177 in	8 A
Bourns Inc. SRN8040TA-101M	AEC-Q200	Nonstandard	Drum Core Wirewound	8 mm	0.315 in	8 mm	0.315 in	Surface Mount	-55 C	125 °C			Ferrite	100 µH	1 MHz	20 %	Shielded	8 MHz	1.45 A	300 mOhm		4.5 mm	0.177 in	1.2 A	1 MHz	10
