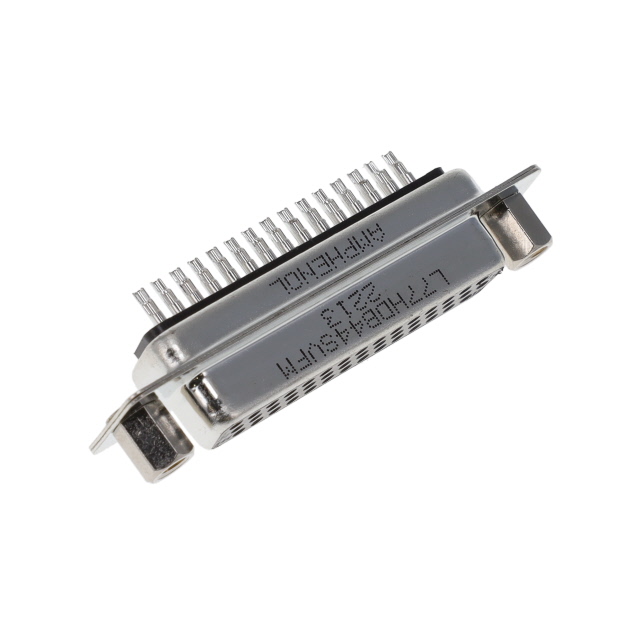

L77HDB44 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K
CONN D-SUB HD RCPT 44P R/A SLDR
| Part | Voltage Rating | Color | Dielectric Material | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Form | Contact Finish | Features | Material Flammability Rating | Connector Type | Shell Size, Connector Layout | Contact Type | Backset Spacing | Backset Spacing | Flange Feature | Connector Style | Mounting Type | Current Rating (Amps) | Number of Positions | Termination | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | 250 V | Black | Thermoplastic Glass Filled | Brass | -55 C | 105 ░C | Stamped | Gold | Board Lock Grounding Tabs | UL94 V-0 | Receptacle Female Sockets | 3 | Signal | 8.89 mm | 0.35 in | Board Side (M3) | D-Sub High Density | Right Angle Through Hole | 3 A | 44 | Solder | 3 | 30 Áin | 0.76 Ám | |
 Amphenol ICC (Commercial Products) | Polybutylene Terephthalate (PBT) Glass Filled | Phosphor Bronze | -55 C | 155 C | Stamped | Gold | UL94 V-0 | Receptacle Female Sockets | 3 | Signal | Housing/Shell (Unthreaded) | D-Sub High Density | Through Hole | 3 A | 44 | Solder | 3 | Flash | |||||||
 Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Phosphor Bronze | -55 C | 155 C | Stamped | Gold | UL94 V-0 | Receptacle Female Sockets | 3 | Signal | 4-40 Mating Side Female Screwlock | D-Sub High Density | Free Hanging (In-Line) | 3 A | 44 | 3 | 30 Áin | 0.76 Ám | |||||||
Amphenol ICC (Commercial Products) | 250 V | Thermoplastic Glass Filled | Phosphor Bronze | -55 C | 155 C | Stamped | Gold | UL94 V-0 | Receptacle Female Sockets | 3 | Signal | Mating Side Female Screwlock (M3) | D-Sub High Density | Free Hanging (In-Line) | 3 A | 44 | 3 | 30 Áin | 0.76 Ám | ||||||
 Amphenol ICC (Commercial Products) | 250 V | Black | Thermoplastic Glass Filled | Brass | -55 C | 105 ░C | Stamped | Gold | Board Lock Grounding Tabs | UL94 V-0 | Receptacle Female Sockets | 3 | Signal | 8.89 mm | 0.35 in | 4-40 Mating Side Female Screwlock | D-Sub High Density | Right Angle Through Hole | 3 A | 44 | Solder | 3 | 30 Áin | 0.76 Ám | |
 Amphenol ICC (Commercial Products) | 250 V | Black | Thermoplastic Glass Filled | Brass | -55 C | 105 ░C | Stamped | Gold | Board Lock Grounding Tabs | UL94 V-0 | Receptacle Female Sockets | 3 | Signal | 8.89 mm | 0.35 in | 4-40 Mating Side Female Screwlock | D-Sub High Density | Right Angle Through Hole | 3 A | 44 | Solder | 3 | 30 Áin | 0.76 Ám | |
 Amphenol ICC (Commercial Products) | 250 V | Black | Thermoplastic Glass Filled | Brass | -55 C | 105 ░C | Stamped | Gold | Board Lock Grounding Tabs | UL94 V-0 | Receptacle Female Sockets | 3 | Signal | 8.89 mm | 0.35 in | Board Side (M3) | D-Sub High Density | Right Angle Through Hole | 3 A | 44 | Solder | 3 | Flash | ||
 Amphenol ICC (Commercial Products) | 250 V | Thermoplastic Glass Filled | Phosphor Bronze | -55 C | 155 C | Stamped | Gold | UL94 V-0 | Receptacle Female Sockets | 3 | Signal | Mating Side Female Screwlock (M3) | D-Sub High Density | Free Hanging (In-Line) | 3 A | 44 | 3 | Flash | |||||||
 Amphenol ICC (Commercial Products) | 250 V | Black | Thermoplastic Glass Filled | Brass | -55 C | 105 ░C | Stamped | Gold | Board Lock Grounding Tabs | UL94 V-0 | Receptacle Female Sockets | 3 | Signal | 8.89 mm | 0.35 in | Board Side (4-40) | D-Sub High Density | Right Angle Through Hole | 3 A | 44 | Solder | 3 | Flash | ||
 Amphenol ICC (Commercial Products) | 250 V | Black | Thermoplastic Glass Filled | Brass | -55 C | 105 ░C | Stamped | Gold | Board Lock Grounding Tabs | UL94 V-0 | Receptacle Female Sockets | 3 | Signal | 8.89 mm | 0.35 in | Mating Side Female Screwlock (M3) | D-Sub High Density | Right Angle Through Hole | 3 A | 44 | Solder | 3 | 30 Áin | 0.76 Ám |
