S16B-PH Series

Catalog

CONN HEADER R/A 16POS 2MM

Part	Insulation Material	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Insulation Color	Mounting Type	Number of Rows [custom]	Contact Shape	Style	Number of Positions	Contact Length - Post	Contact Length - Post	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Fastening Type	Contact Material	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Shrouding	Voltage Rating	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Number of Positions Loaded	Termination	Number of Rows	Contact Length - Post [x]

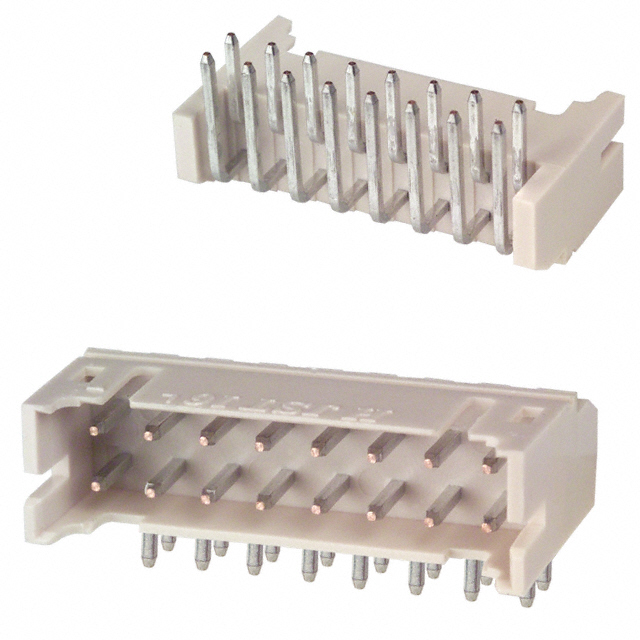

JST Sales America Inc. S16B-PHDSS	Glass Filled Nylon Polyamide (PA)	0.197 "	5 mm	2.9 mm	0.114 in	Tin	Natural	Right Angle Through Hole	2	Square	Board to Cable/Wire	16	0.118 in	3 mm	2 mm	0.079 in	Header	Detent Lock	Copper Alloy	0.079 "	2 mm	3 A	Shrouded - 4 Wall	250 V	Male Pin	85 °C	-25 °C	UL94 V-0	All	Solder
JST Sales America Inc. S16B-PH-KL	Nylon 6/6 Polyamide (PA66)	0.189 in	4.8 mm			Tin	Gray	Right Angle Through Hole		Square	Board to Cable/Wire	16		3.4 mm			Header	Detent Lock	Copper Alloy	0.079 "	2 mm	2 A	Shrouded - 4 Wall	100 V	Male Pin	85 °C	-25 °C	UL94 V-0	All	Press-Fit Solder	1	0.134 "

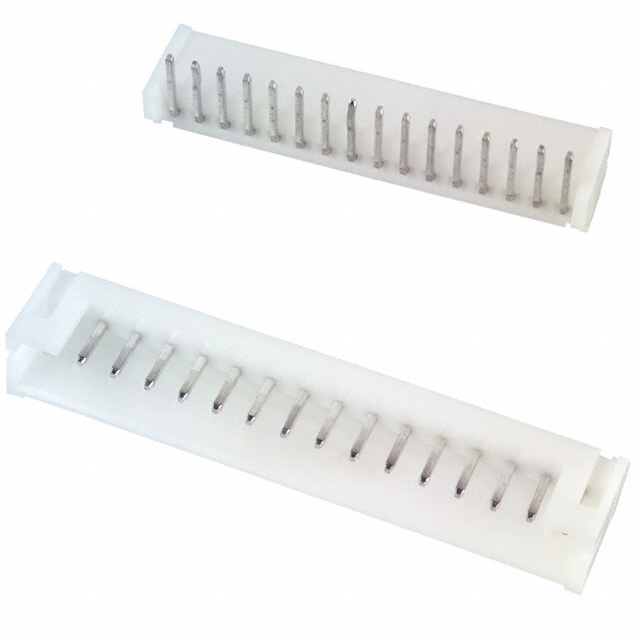

JST Sales America Inc. S16B-PH-K-S	Nylon 6/6 Polyamide (PA66)	0.189 in	4.8 mm	3.3 mm	0.13 in	Tin	Natural	Right Angle Through Hole		Square	Board to Cable/Wire	16		3.4 mm			Header	Detent Lock	Brass	0.079 "	2 mm	2 A	Shrouded - 4 Wall	100 V	Male Pin	85 °C	-25 °C	UL94 V-0	All	Press-Fit Solder	1	0.134 "
