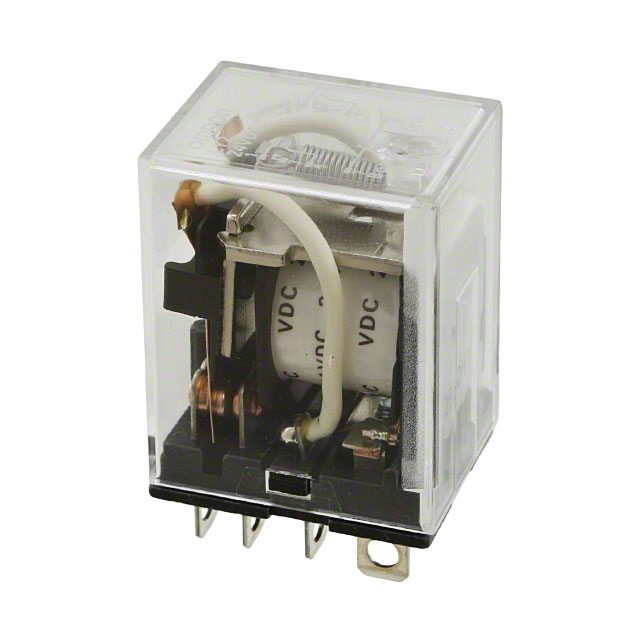

LY2-0-A Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE DPDT 10A 12V
| Part | Coil Type | Must Release Voltage | Approval Agency | Must Operate Voltage | Switching Voltage | Operate Time | Coil Current | Contact Form | Coil Resistance | Release Time | Contact Rating (Current) | Contact Material | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Coil Voltage | Load - Max Switching | Relay Type | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | Non Latching | 1.2 VDC | CE CSA TUV UR | 9.6 VDC | 125 VDC 250 VAC | 25 ms | 75 mA | DPDT (2 Form C) | 160 Ohms | 25 ms | 10 A | Silver Alloy | Through Hole | 55 °C | -25 °C | 12 VDC | 1250 W 2500 VA | General Purpose | PC Pin |

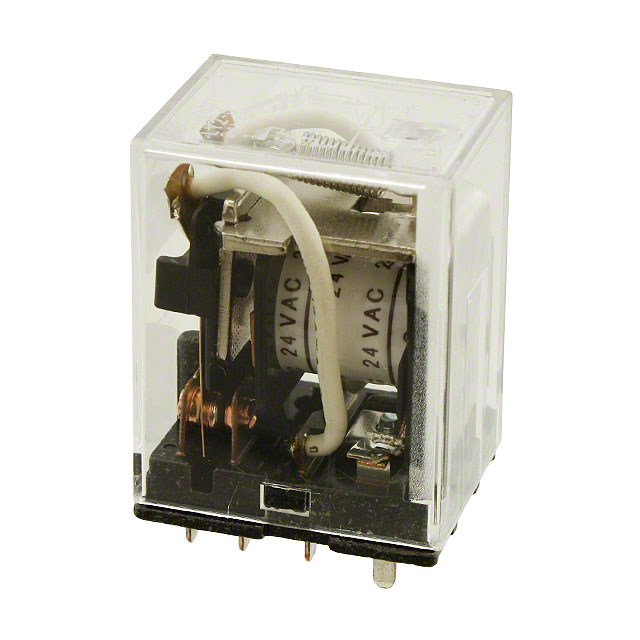

 Omron Electronics Inc-EMC Div | Non Latching | 7.2 VAC | CE CSA TUV UR | 19.2 VAC | 125 VDC 250 VAC | 25 ms | 46 mA | DPDT (2 Form C) | 180 Ohms | 25 ms | 10 A | Silver Alloy | Through Hole | 55 °C | -25 °C | 24 VAC | 1250 W 2500 VA | General Purpose | PC Pin |

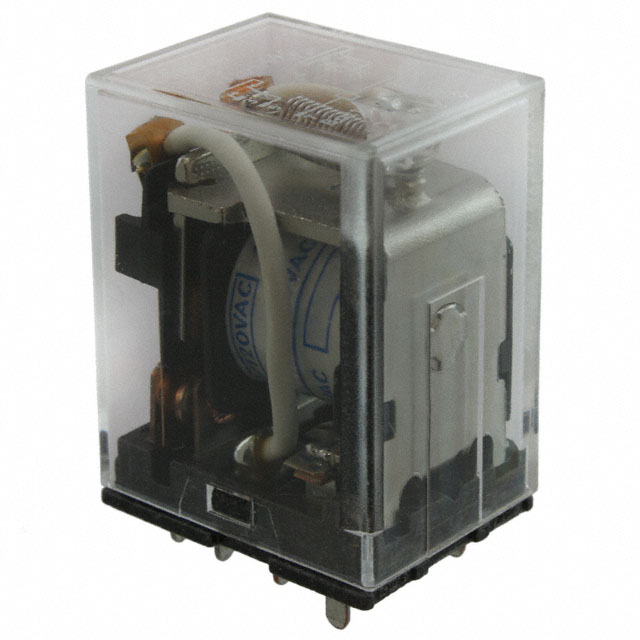

 Omron Electronics Inc-EMC Div | Non Latching | 36 VAC | CE CSA TUV UR | 96 VAC | 125 VDC 250 VAC | 25 ms | 9.2 mA | DPDT (2 Form C) | 4.43 kOhms | 25 ms | 10 A | Silver Alloy | Through Hole | 55 °C | -25 °C | 120 VAC | 1250 W 2500 VA | General Purpose | PC Pin |
 Omron Electronics Inc-EMC Div | Non Latching | 66 VAC | CE CSA TUV UR | 176 VAC | 125 VDC 250 VAC | 25 ms | 5.8 mA | DPDT (2 Form C) | 12.95 kOhms | 25 ms | 10 A | Silver Alloy | Through Hole | 55 °C | -25 °C | 220 VAC/DC | 1250 W 2500 VA | General Purpose | PC Pin |
