HLMP33 Series

Catalog

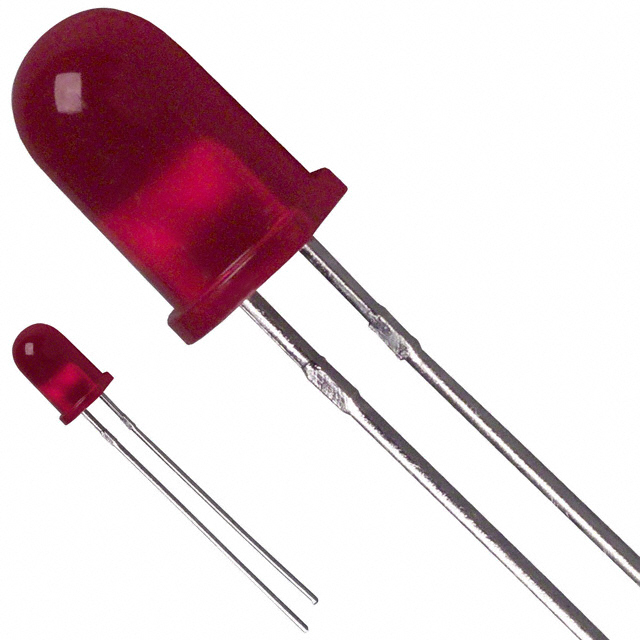

LED RED DIFFUSED T-1 3/4 T/H

Part	Height (Max) [Max]	Wavelength - Peak	Configuration	Millicandela Rating	Package / Case	Lens Color	Color	Viewing Angle	Current - Test	Voltage - Forward (Vf) (Typ)	Lens Size	Lens Size	Lens Transparency	Supplier Device Package	Lens Style	Mounting Type
ON Semiconductor HLMP3301	8.89 mm	635 nm	Standard	7 mcd	Radial	Red	Red	65 °	10 mA	2.2 V	T-1 3/4	5 mm	Diffused	T-1 3/4	Round with Domed Top	Through Hole
ON Semiconductor HLMP3316	8.89 mm	635 nm	Standard	35 mcd	Radial	Red	Red	35 °	10 mA	2.2 V	T-1 3/4	5 mm	Diffused	T-1 3/4	Round with Domed Top	Through Hole
ON Semiconductor HLMP3315	8.89 mm	635 nm	Standard	18 mcd	Radial	Red	Red	35 °	10 mA	2.2 V	T-1 3/4	5 mm	Diffused	T-1 3/4	Round with Domed Top	Through Hole
ON Semiconductor HLMP3300	8.89 mm	635 nm	Standard	3.5 mcd	Radial	Red	Red	65 °	10 mA	2.2 V	T-1 3/4	5 mm	Diffused	T-1 3/4	Round with Domed Top	Through Hole
