TS5A22362 Series

Catalog

0.65-V, 2:1 (SPDT), 2-CHANNEL ANALOG SWITCH WITH NEGATIVE SIGNALING CAPABILITY

Part	Supplier Device Package	Charge Injection	Multiplexer/Demultiplexer Circuit	Mounting Type	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Package / Case	Current - Leakage (IS(off)) (Max)	-3db Bandwidth	On-State Resistance (Max) [Max]	Crosstalk	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Number of Circuits	Switch Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Channel-to-Channel Matching (ΔRon)	Voltage - Supply, Single (V+) [Max]	Voltage - Supply, Single (V+) [Min]	Package / Case [x]	Package / Case [x]
Texas Instruments TS5A22362DRCR	10-VSON (3x3)	10 pC	2:1	Surface Mount	70 pF	70 pF	10-VFDFN Exposed Pad	50 nA	18.3 MHz	740 mOhm	-78 dB	80 ns	70 ns	2	SPDT	85 °C	-40 °C	40 mOhm	5.5 V	2.3 V

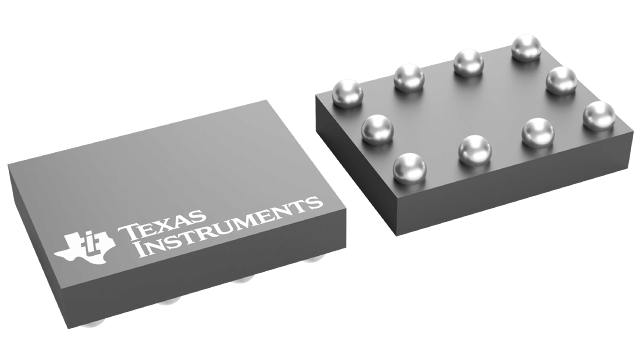

Texas Instruments TS5A22362YZPR	10-DSBGA	10 pC	2:1	Surface Mount	70 pF	70 pF	10-XFBGA DSBGA	50 nA	18.3 MHz	740 mOhm	-78 dB	80 ns	70 ns	2	SPDT	85 °C	-40 °C	40 mOhm	5.5 V	2.3 V
Texas Instruments TS5A22362DGSRG4	10-VSSOP	10 pC	2:1	Surface Mount	70 pF	70 pF	10-MSOP 10-TFSOP	50 nA	18.3 MHz	740 mOhm	-78 dB	80 ns	70 ns	2	SPDT	85 °C	-40 °C	40 mOhm	5.5 V	2.3 V	3 mm	0.118 in
Texas Instruments TS5A22362DGSR	10-VSSOP	10 pC	2:1	Surface Mount	70 pF	70 pF	10-MSOP 10-TFSOP	50 nA	18.3 MHz	740 mOhm	-78 dB	80 ns	70 ns	2	SPDT	85 °C	-40 °C	40 mOhm	5.5 V	2.3 V	3 mm	0.118 in
Texas Instruments TS5A22362DRCT-NM	10-VSON (3x3)	10 pC	2:1	Surface Mount	70 pF	70 pF	10-VFDFN Exposed Pad	50 nA	18.3 MHz	740 mOhm	-78 dB	80 ns	70 ns	2	SPDT	85 °C	-40 °C	40 mOhm	5.5 V	2.3 V
