LCC250 Series

Catalog

CONN TERM RECT TONG 250 MCM

Part	Terminal Type	Termination	Terminal Style	Contact Finish	Wire Gauge	Wire Gauge	Contact Material	Color	Mounting Type	Insulation	Tab Thickness	Tab Thickness	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Length - Overall [x]	Length - Overall [x]	Stud/Tab Size	Width - Outer Edges [y]	Width - Outer Edges [y]	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Stud/Tab Size	Diameter - Ring ID [diameter]
Panduit Corp LCC250-00W-X	Rectangular Tongue	Barrel Crimp	No Stud Hole	Electro-Tin	250 kcmil	250 MCM	Copper	Yellow	Free Hanging (In-Line)	Non-Insulated
Panduit Corp LCC250-12-X	Rectangular Tongue	Barrel Crimp	Two Stud Holes	Electro-Tin	250 kcmil	250 MCM	Copper	Yellow	Free Hanging (In-Line)	Non-Insulated	0.14 "	3.56 mm	0.77 "	19.56 mm	132.84 mm	5.23 in	1/2 Stud	1.17 in	29.72 mm	0.53 in	13.46 mm	16 mm	0.63 in

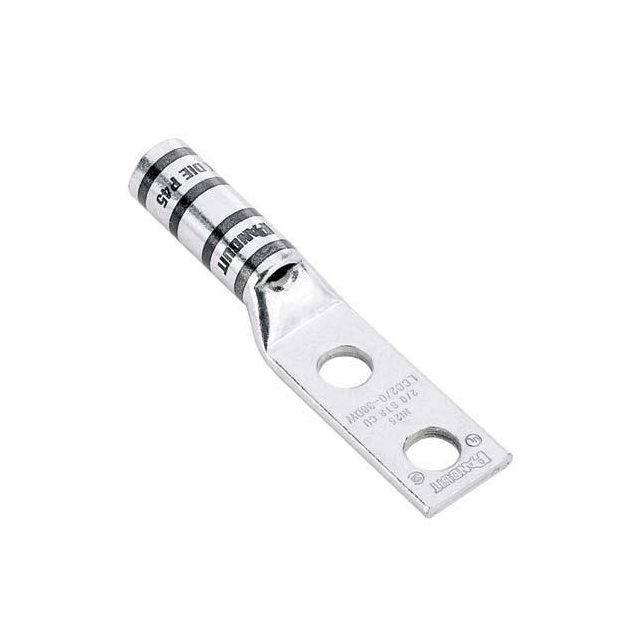

Panduit Corp LCC250-56DW-X	Rectangular Tongue	Barrel Crimp	Two Stud Holes	Electro-Tin	250 kcmil	250 MCM	Copper	Yellow	Free Hanging (In-Line)	Non-Insulated	0.14 "	3.56 mm	0.77 "	19.56 mm	97.03 mm	3.82 in		1.17 in	29.72 mm	0.34 in	8.64 mm	16 mm	0.63 in	0.3125 Stud

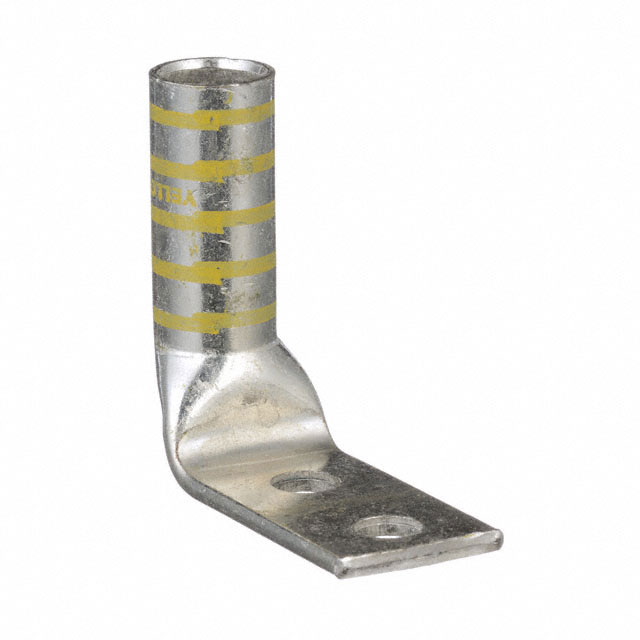

Panduit Corp LCC250-38DH-X	Rectangular Tongue	Barrel Crimp	Two Stud Holes	Electro-Tin	250 kcmil	250 MCM	Copper	Yellow	45° Angle Free Hanging (In-Line)	Non-Insulated	0.14 "	3.56 mm	0.77 "	19.56 mm			3/8 Stud	1.17 in	29.72 mm	10.41 mm		16 mm	0.63 in		0.41 "

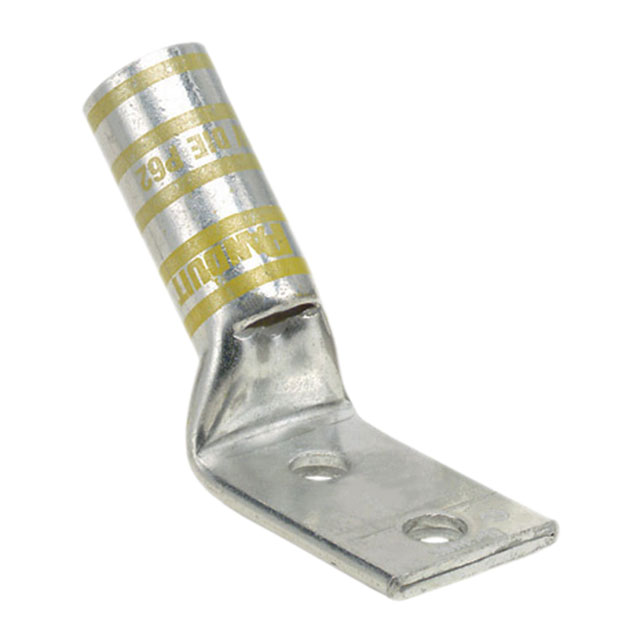

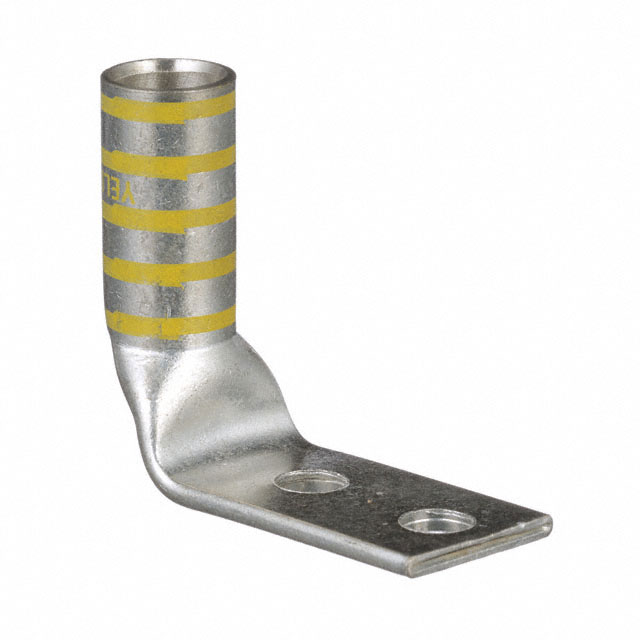

Panduit Corp LCC250-38DWH-X	Rectangular Tongue	Barrel Crimp	Two Stud Holes	Electro-Tin	250 kcmil	250 MCM	Copper	Yellow	45° Angle Free Hanging (In-Line)	Non-Insulated	0.14 "	3.56 mm	0.77 "	19.56 mm			3/8 Stud	1.17 in	29.72 mm	10.41 mm		16 mm	0.63 in		0.41 "

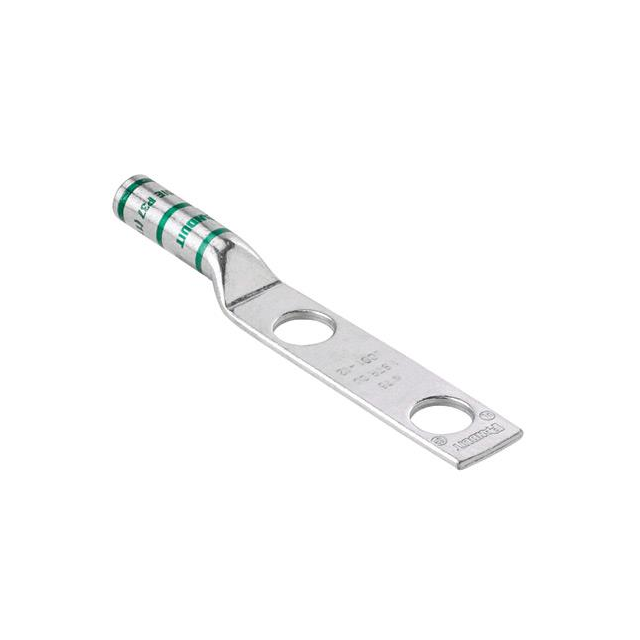

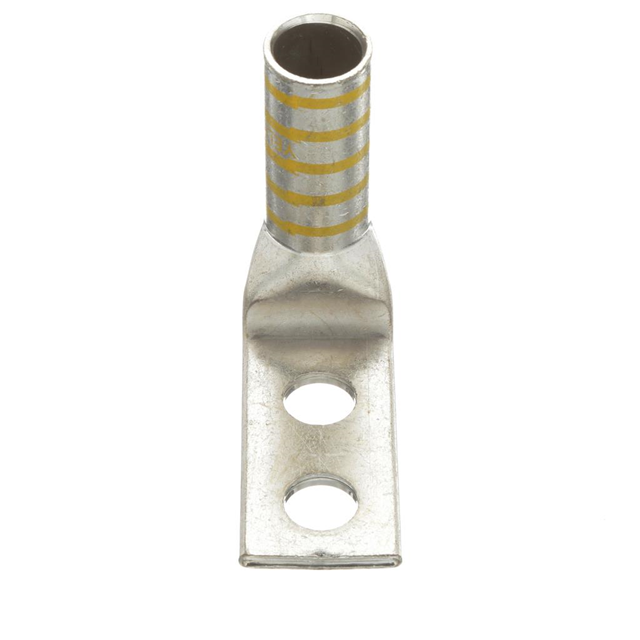

Panduit Corp LCC250-12D-X	Rectangular Tongue	Barrel Crimp	Two Stud Holes	Electro-Tin	250 kcmil	250 MCM	Copper	Yellow	Free Hanging (In-Line)	Non-Insulated	0.14 "	3.56 mm	0.77 "	19.56 mm	109.73 mm	4.32 in	1/2 Stud	1.17 in	29.72 mm	0.53 in	13.46 mm	16 mm	0.63 in

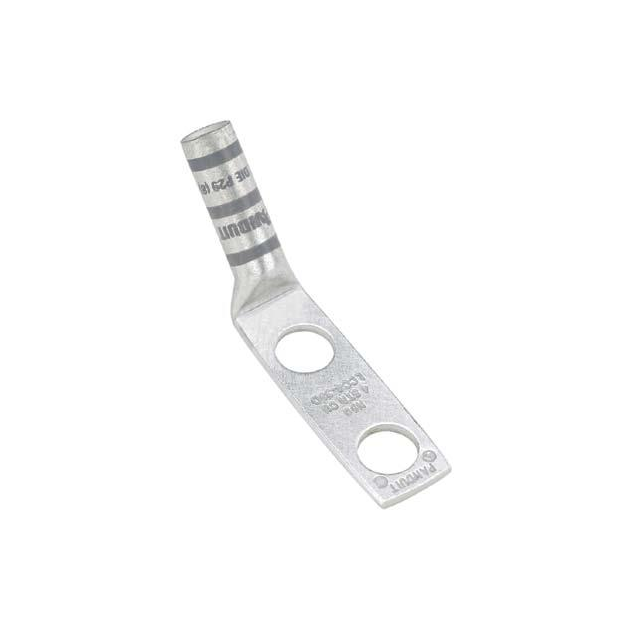

Panduit Corp LCC250-12H-X	Rectangular Tongue	Barrel Crimp	Two Stud Holes	Electro-Tin	250 kcmil	250 MCM	Copper	Yellow	45° Angle Free Hanging (In-Line)	Non-Insulated	0.14 "	3.56 mm	0.77 "	19.56 mm			1/2 Stud	1.17 in	29.72 mm	0.53 in	13.46 mm	16 mm	0.63 in
Panduit Corp LCC250-56DWH-X	Rectangular Tongue	Barrel Crimp	Two Stud Holes	Electro-Tin	250 kcmil	250 MCM	Copper	Yellow	45° Angle Free Hanging (In-Line)	Non-Insulated	0.14 "	3.56 mm	0.77 "	19.56 mm				1.17 in	29.72 mm	0.34 in	8.64 mm	16 mm	0.63 in	0.3125 Stud
