GBC14S Series

Catalog

CONN HEADER SMD R/A 14POS 2.54MM

Part	Contact Material	Mounting Type	Insulation Color	Shrouding	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Finish - Post	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Contact Type	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Number of Positions Loaded	Termination	Connector Type	Contact Finish - Mating	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating [x]	Contact Length - Mating	Number of Rows	Insulation Material	Style	Contact Length - Mating [x]

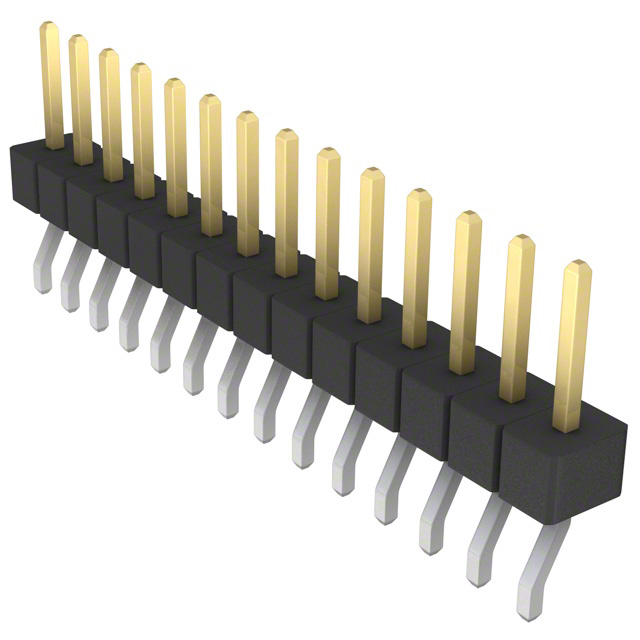

Sullins Connector Solutions GBC14SBSN-M89	Phosphor Bronze	Surface Mount Right Angle	Black	Unshrouded	0.1 in	2.54 mm	Square	Tin	3.56 mm	0.14 in	2.54 µm	100 µin	UL94 V-0	Male Pin	3 A	10 çin	0.25 çm	14	All	Solder	Breakaway Header	Gold	Push-Pull	-65 ░C	150 °C	0.23 in	5.84 mm	1	Nylon 9T Polyamide (PA9T)	Board to Board Cable
Sullins Connector Solutions GBC14SFBN-M30	Phosphor Bronze	Surface Mount	Black	Unshrouded	0.1 in	2.54 mm	Square	Tin	2.54 mm	0.1 in	2.54 µm	100 µin	UL94 V-0	Male Pin	3 A	10 çin	0.25 çm	14	All	Solder	Breakaway Header	Gold	Push-Pull	-65 ░C	150 °C	0.318 "		1	Nylon 9T Polyamide (PA9T)	Board to Board Cable	8.08 mm
