1241.7031 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

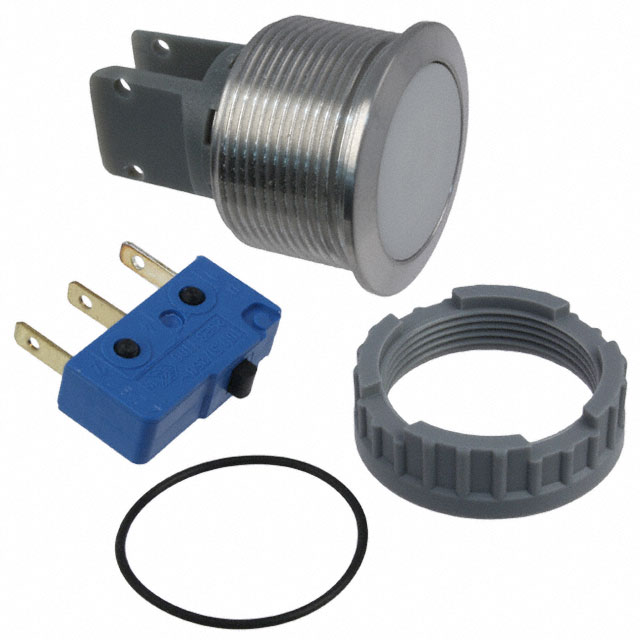

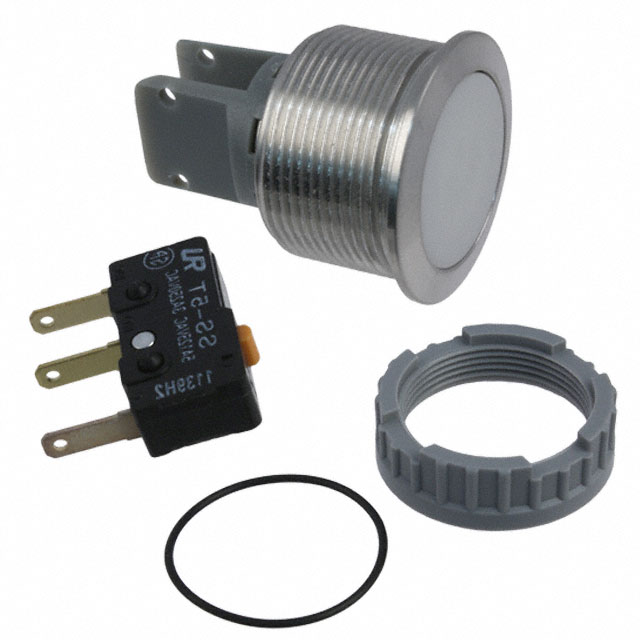

SWITCH PUSHBUTTON SPDT 5A 125V
| Part | Mechanical Life | Electrical Life | Operating Temperature [Max] | Operating Temperature [Min] | Color - Actuator/Cap | Ingress Protection | Voltage Rating - AC | Switch Function | Actuator Type | Circuit | Actuator Marking | Features | Type | Mounting Type | Current Rating (Amps) | Termination Style | Panel Cutout Dimensions [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 1500000 Cycles | 200000 Cycles | 85 °C | -25 °C | Clear | IP40 | 125 V | On-Mom | Button Flush Round | SPDT | No Marking | Ceramic Actuator | Anti-Vandal | Panel Mount Front | 5 A | Quick Connect - 0.110" (2.8mm) | 22.1 mm |
 SCHURTER Inc. | 1500000 Cycles | 50000 Cycles | 85 °C | -25 °C | Clear | IP40 | 250 V | On-Mom | Button Flush Round | SPDT | No Marking | Ceramic Actuator | Anti-Vandal | Panel Mount Front | 10 A | Quick Connect - 0.110" (2.8mm) | 22.1 mm |
