3.14.100 Series

Manufacturer: RAFI USA

Catalog

SWITCH TACTILE SPST-NO 0.1A 35V

Part	Actuator Type	Termination Style	Circuit	Illumination	Contact Rating @ Voltage	Outline [x]	Outline [y]	Actuator Orientation	Mounting Type	Switch Travel	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Actuator Height off PCB, Vertical [z]	Mechanical Life	Operating Force	Actuator Height off PCB, Vertical	Illumination Type, Color

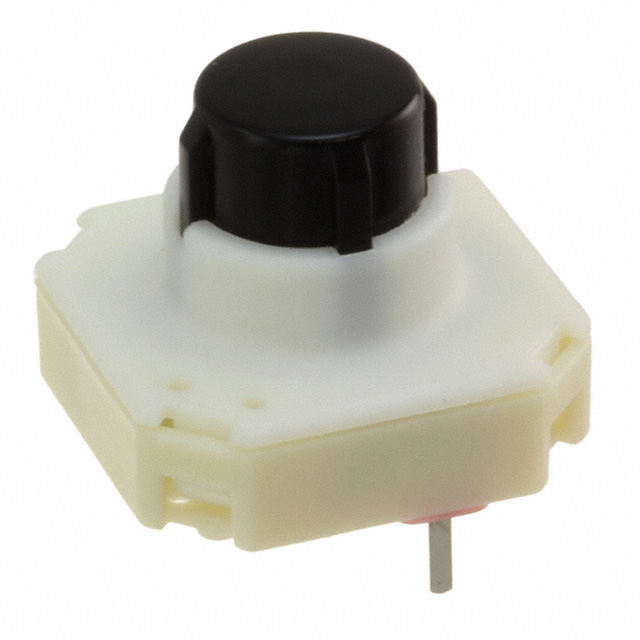

RAFI USA 3.14.100.801/0000	Round Button	PC Pin	SPST-NO	Non-Illuminated	0.1 A 35 VAC/DC	15 mm	15 mm	Top Actuated	Through Hole	0.5 mm	-25 °C	70 °C	Off-Mom	12.5 mm	1000000 Cycles	296 gf
RAFI USA 3.14.100.040/0000	Square Button	PC Pin	SPST-NO	Illuminated	0.1 A 35 VAC/DC	15 mm	15 mm	Top Actuated	Through Hole	0.5 mm	-25 °C	70 °C	Off-Mom		1000000 Cycles	296 gf	9.7 mm	Blue LED
RAFI USA 3.14.100.041/0000	Square Button	PC Pin	SPST-NO	Illuminated	0.25 A 35 VAC/DC	15 mm	15 mm	Top Actuated	Through Hole	0.5 mm	-25 °C	70 °C	Off-Mom		1000000 Cycles	296 gf	9.7 mm	LED Red

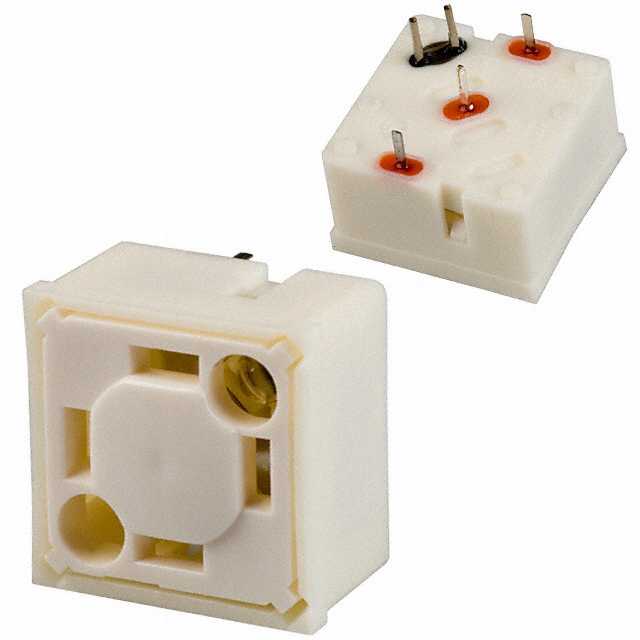

RAFI USA 3.14.100.030/0000	Square Button	PC Pin	SPST-NO	Illuminated	0.1 A 35 VAC/DC	15 mm	15 mm	Top Actuated	Through Hole	0.5 mm	-25 °C	70 °C	Off-Mom		1000000 Cycles	296 gf	9.7 mm	Blue LED
RAFI USA 3.14.100.707/0000	Square Button	PC Pin	SPST-NO	Non-Illuminated	0.25 A 35 VAC/DC	15 mm	15 mm	Top Actuated	Through Hole		-25 °C	70 °C	Off-Mom	12.5 mm		296 gf

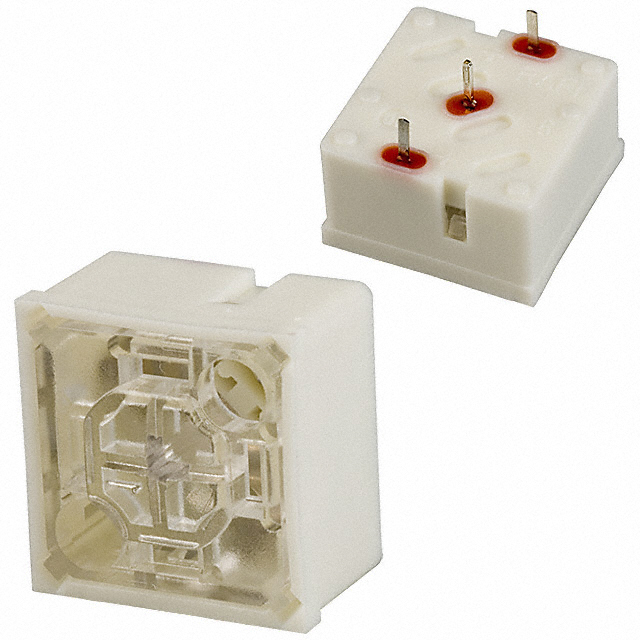

RAFI USA 3.14.100.006/0000	Square Button	PC Pin	SPST-NO	Non-Illuminated	0.25 A 35 VAC/DC	15 mm	15 mm	Top Actuated	Through Hole	0.5 mm	-25 °C	70 °C	Off-Mom		1000000 Cycles	296 gf	9.7 mm
RAFI USA 3.14.100.606/0000	Plunger for Cap	PC Pin	SPST-NO	Non-Illuminated	0.25 A 35 VAC/DC	15 mm	15 mm	Top Actuated	Through Hole	0.5 mm	-25 °C	70 °C	Off-Mom	6.2 mm	1000000 Cycles	296 gf
RAFI USA 3.14.100.506/0000	Round Button	PC Pin	SPST-NO	Non-Illuminated	0.25 A 35 VAC/DC	15 mm	15 mm	Top Actuated	Through Hole		-25 °C	70 °C	Off-Mom			296 gf	9.7 mm
RAFI USA 3.14.100.744/0000
RAFI USA 3.14.100.830/0000	Round Button	PC Pin	SPST-NO	Illuminated	0.1 A 35 VAC/DC	15 mm	15 mm	Top Actuated	Through Hole	0.5 mm	-25 °C	70 °C	Off-Mom	12.5 mm	1000000 Cycles	296 gf		Green LED
