VTD48E Series

Catalog

VTM CURRENT MULTIPLIER EVAL BRD

Part	Supplied Contents	Power - Output	Board Type	Outputs and Type	Outputs and Type	Current - Output	Main Purpose	Voltage - Input [Min]	Voltage - Input [Max]	Frequency - Switching	Voltage - Output	Utilized IC / Part	Regulator Topology	Contents	Voltage - Output [Max]	Voltage - Output [Min]
Vicor Corporation VTD48EF040T050B00	Board(s)	200 W	Fully Populated	1 Isolated Output Isolated	1	50 A	DC/DC Step Down	26 V	55 V	1.43 MHz	4 V	VTM48Ex040y050B00	Buck	Board(s)

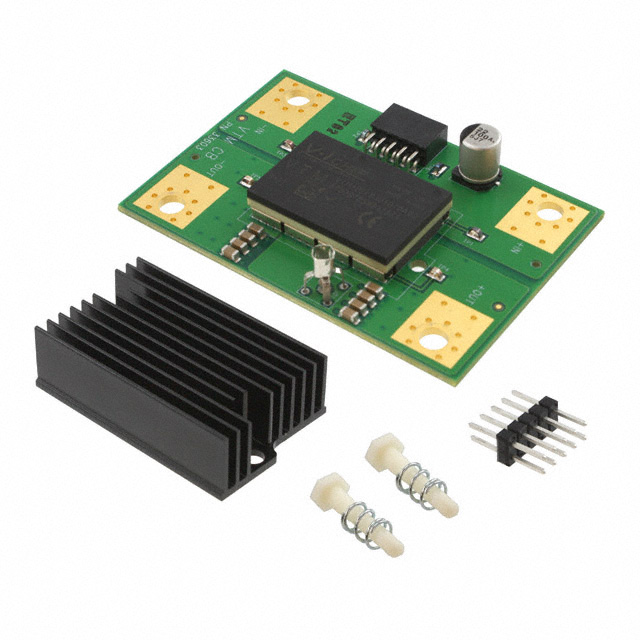

Vicor Corporation VTD48EF030T070A00	Board(s)	230 W	Fully Populated	1 Isolated Output Isolated	1	70 A	DC/DC Step Down	26 V	55 V	1.43 MHz	3 V	VTM48Ex030y070A00	Buck	Board(s)
Vicor Corporation VTD48EH120T010B00	Board(s)	135 W	Fully Populated	1 Isolated Output Isolated	1	10 A	DC/DC Step Down with LDO	26 V	55 V	1.5 MHz	12 V	VTM48EH120x010B00	Buck	Board(s)

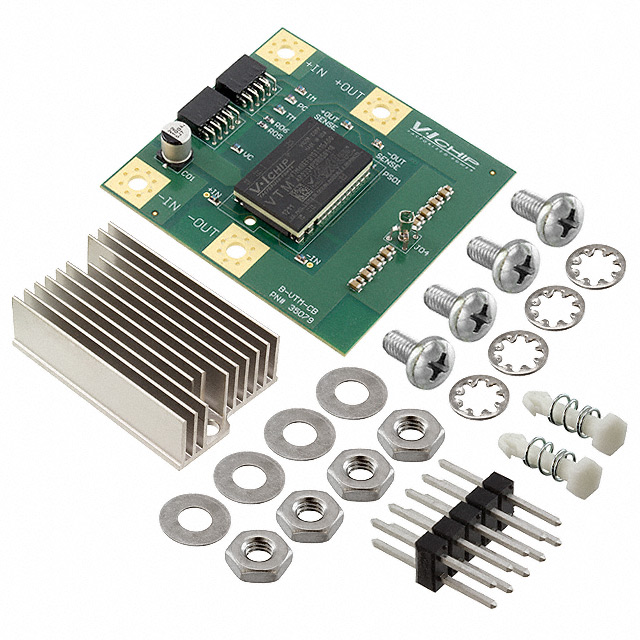

Vicor Corporation VTD48EF015T115A00	Board(s)		Fully Populated	1 Isolated Output Isolated	1	115 A	DC/DC Step Down	26 V	55 V	1.4 MHz		VTM48EF015T115A	Buck	Board(s)	1.71 V	0.81 V

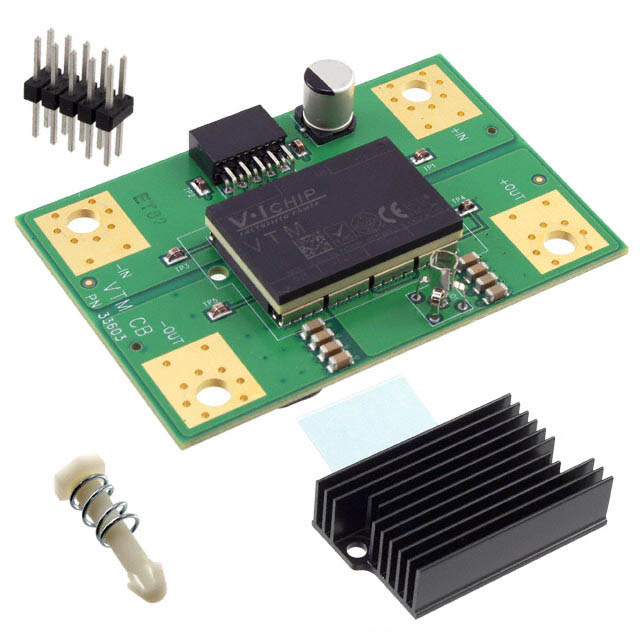

Vicor Corporation VTD48EF120T025A00	Board(s)	300 W	Fully Populated	1 Isolated Output Isolated	1	25 A	DC/DC Step Down	26 V	55 V	1.95 MHz	12 V	VTM48Ex120y025A00	Buck	Board(s)
Vicor Corporation VTD48EF240T012A00	Board(s)	300 W	Fully Populated	1 Isolated Output Isolated	1	12 A	DC/DC Step Down	26 V	55 V	3.54 MHz	24 V	VTM48Ex240y012A00	Buck	Board(s)

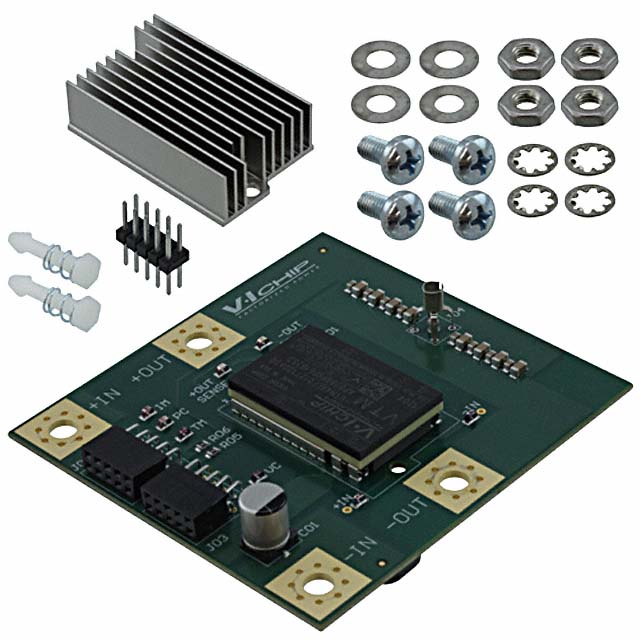

Vicor Corporation VTD48EF012T130A00	Board(s)	130 W	Fully Populated	1 Isolated Output Isolated	1	130 A	DC/DC Step Down	26 V	55 V	1.2 MHz	1 V	VTM48EF012T130A	Buck	Board(s)
Vicor Corporation VTD48EF060T040A00	Board(s)	264 W	Fully Populated	1 Isolated Output Isolated	1	40 A	DC/DC Step Down	26 V	55 V	1.21 MHz	6 V	VTM48Ex060y040A00	Buck	Board(s)
Vicor Corporation VTD48EF160T015A00	Board(s)	240 W	Fully Populated	1 Isolated Output Isolated	1	15 A	DC/DC Step Down	26 V	55 V	1.65 MHz	16 V	VTM48Ex160y015A00	Buck	Board(s)
Vicor Corporation VTD48EF320T009A00	Board(s)	300 W	Fully Populated	1 Isolated Output Isolated	1	9.4 A	DC/DC Step Down	26 V	55 V	1.6 MHz	32 VDC	VTM48Ex320y009A00	Buck	Board(s)
