M2-A1-67 Series

Manufacturer: Adam Tech

Catalog

CONN M.2 FMALE 67POS 0.020 GOLD

Part	Material - Insulation	Features	Number of Rows [custom]	Card Thickness	Card Thickness	Contact Finish Thickness	Contact Material	Read Out	Card Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Gender	Contact Finish	Color	Pitch	Pitch	Mounting Type	Termination
Adam Tech M2-A1-67-R-SMT-8.5-KA-T/R	Liquid Crystal Polymer (LCP)	Board Guide Keyed	2	0.031 in	0.79 mm	Flash	Phosphor Bronze	Dual	M.2 (NGFF) Mini Card	85 °C	-40 C	67	Female	Gold	Black	0.02 "	0.5 mm	Right Angle Surface Mount	Solder
Adam Tech M2-A1-67-R-SMT-4.10-KB-T/R	Liquid Crystal Polymer (LCP)	Board Guide Keyed	2	0.031 in	0.79 mm	Flash	Phosphor Bronze	Dual	M.2 (NGFF) Mini Card	85 °C	-40 C	67	Female	Gold	Black	0.02 "	0.5 mm	Right Angle Surface Mount	Solder

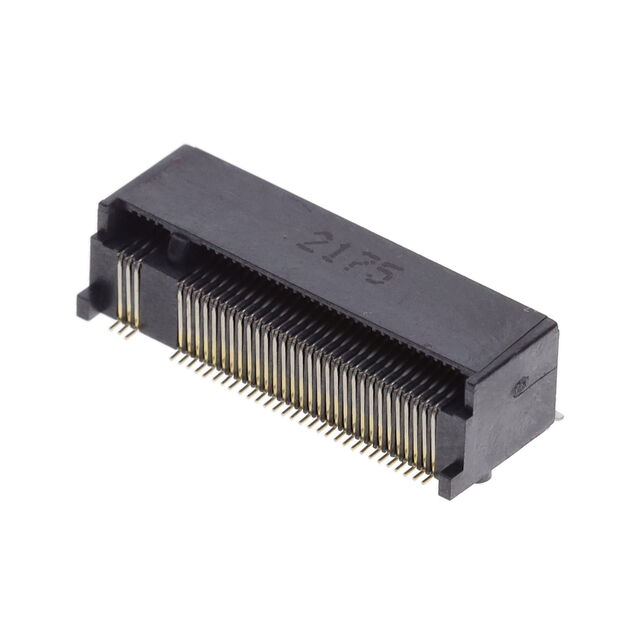

Adam Tech M2-A1-67-R-SMT-5.80-KA-T/R	Liquid Crystal Polymer (LCP)	Board Guide Keyed	2	0.031 in	0.79 mm	Flash	Phosphor Bronze	Dual	M.2 (NGFF) Mini Card	85 °C	-40 C	67	Female	Gold	Black	0.02 "	0.5 mm	Right Angle Surface Mount	Solder
Adam Tech M2-A1-67-R-SMT-2.15-KM-T/R	Liquid Crystal Polymer (LCP)	Board Guide Keyed	2	0.031 in	0.79 mm	Flash	Phosphor Bronze	Dual	M.2 (NGFF) Mini Card	85 °C	-40 C	67	Female	Gold	Black	0.02 "	0.5 mm	Right Angle Surface Mount	Solder

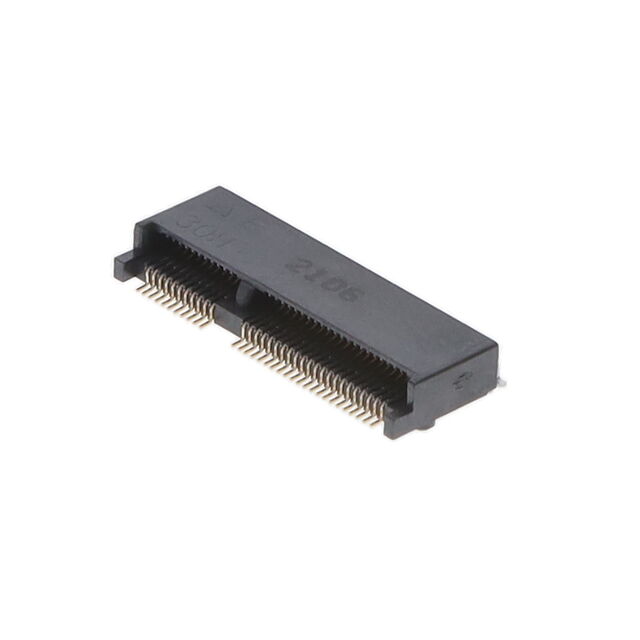

Adam Tech M2-A1-67-R-SMT-3.10-KE-T/R	Liquid Crystal Polymer (LCP)	Board Guide Keyed	2	0.031 in	0.79 mm	Flash	Phosphor Bronze	Dual	M.2 (NGFF) Mini Card	85 °C	-40 C	67	Female	Gold	Black	0.02 "	0.5 mm	Right Angle Surface Mount	Solder

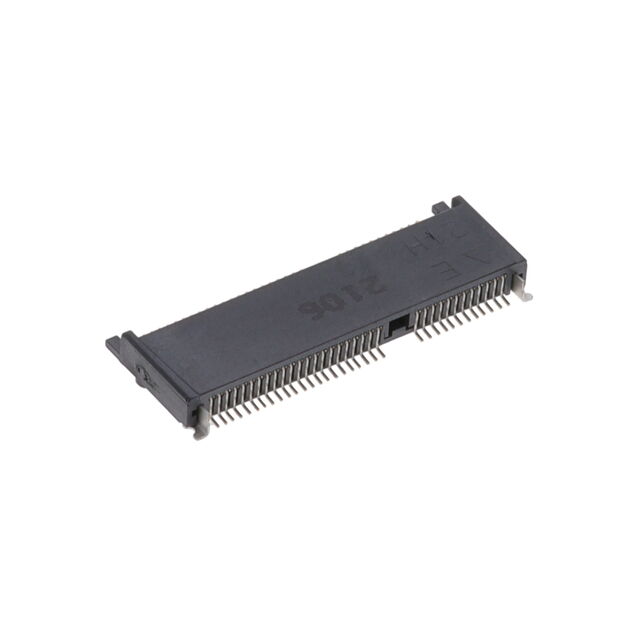

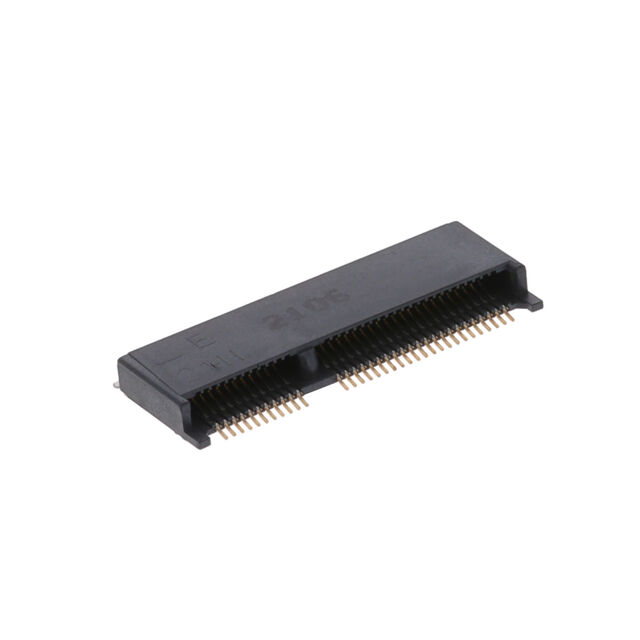

Adam Tech M2-A1-67-R-SMT-2.15-KE-T/R	Liquid Crystal Polymer (LCP)	Board Guide Keyed	2	0.031 in	0.79 mm	Flash	Phosphor Bronze	Dual	M.2 (NGFF) Mini Card	85 °C	-40 C	67	Female	Gold	Black	0.02 "	0.5 mm	Right Angle Surface Mount	Solder

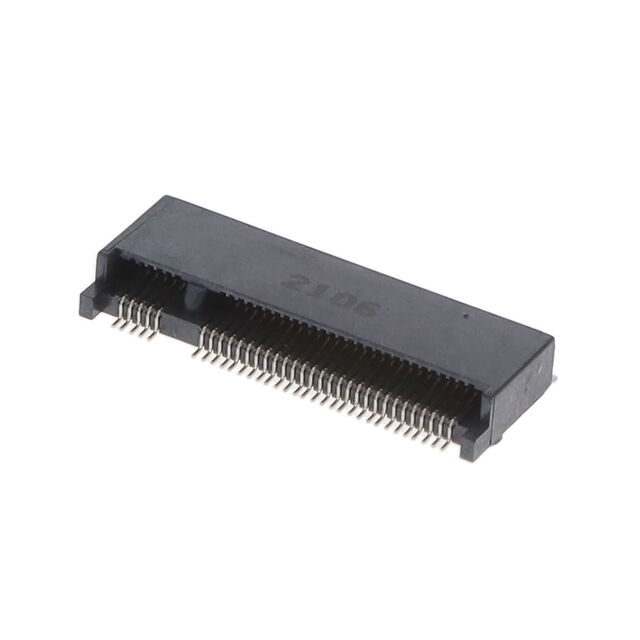

Adam Tech M2-A1-67-R-SMT-3.10-KB-T/R	Liquid Crystal Polymer (LCP)	Board Guide Keyed	2	0.031 in	0.79 mm	Flash	Phosphor Bronze	Dual	M.2 (NGFF) Mini Card	85 °C	-40 C	67	Female	Gold	Black	0.02 "	0.5 mm	Right Angle Surface Mount	Solder
Adam Tech M2-A1-67-R-SMT-2.15-KA-T/R	Liquid Crystal Polymer (LCP)	Board Guide Keyed	2	0.031 in	0.79 mm	Flash	Phosphor Bronze	Dual	M.2 (NGFF) Mini Card	85 °C	-40 C	67	Female	Gold	Black	0.02 "	0.5 mm	Right Angle Surface Mount	Solder
Adam Tech M2-A1-67-R-SMT-4.10-KA-T/R	Liquid Crystal Polymer (LCP)	Board Guide Keyed	2	0.031 in	0.79 mm	Flash	Phosphor Bronze	Dual	M.2 (NGFF) Mini Card	85 °C	-40 C	67	Female	Gold	Black	0.02 "	0.5 mm	Right Angle Surface Mount	Solder

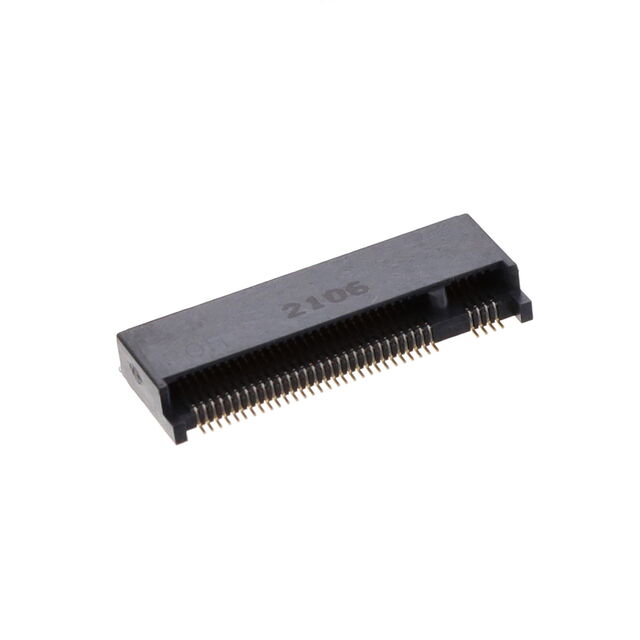

Adam Tech M2-A1-67-R-SMT-3.10-KM-T/R	Liquid Crystal Polymer (LCP)	Board Guide Keyed	2	0.031 in	0.79 mm	Flash	Phosphor Bronze	Dual	M.2 (NGFF) Mini Card	85 °C	-40 C	67	Female	Gold	Black	0.02 "	0.5 mm	Right Angle Surface Mount	Solder
