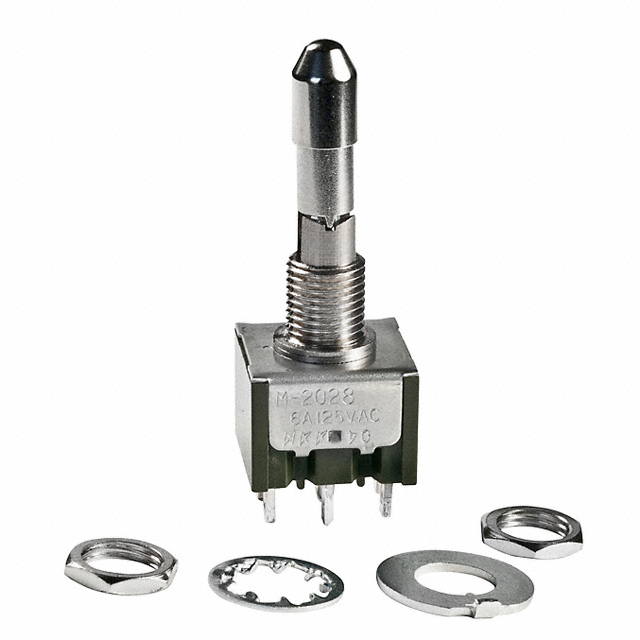

M2028LL Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE DPDT 6A 125V
| Part | Electrical Life | Actuator Material | Panel Cutout Dimensions [diameter] | Actuator Type | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - DC | Mounting Type | Termination Style | Features | Current Rating (Amps) | Illumination | Switch Function | Actuator Length [x] | Circuit | Voltage Rating - AC | Bushing Thread |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | Brass Chrome Plated | 6.5 mm | Locking Lever | IP67 - Dust Tight Waterproof | 85 °C | -30 ░C | 30 V | Panel Mount | Solder Lug | Epoxy Sealed Terminals | 3 A 6 A | Non-Illuminated | Mom-Off-Mom | 16.5 mm | DPDT | 125 V | 1/4-40 |
 NKK Switches | 25000 Steps | Brass Chrome Plated | 6.5 mm | Locking Lever | 85 °C | -30 ░C | 30 V | Panel Mount | Solder Lug | Epoxy Sealed Terminals | 3 A 6 A | Non-Illuminated | Mom-Off-Mom | 16.5 mm | DPDT | 125 V | 1/4-40 | |
NKK Switches | 25000 Steps | Brass Chrome Plated | 6.5 mm | Locking Lever | IP67 - Dust Tight Waterproof | 85 °C | -30 ░C | 30 V | Panel Mount | Solder Lug | Black Cap | 3 A 6 A | Non-Illuminated | Mom-Off-Mom | 16.5 mm | DPDT | 125 V | 1/4-40 |
