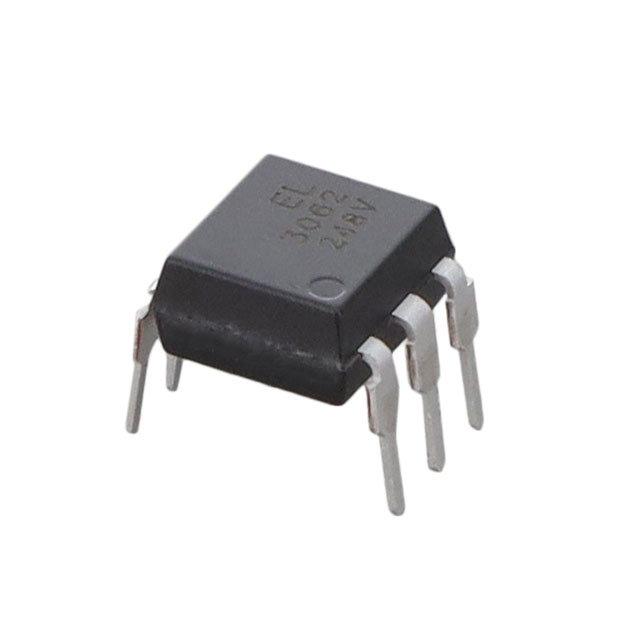

EL3062 Series

Manufacturer: Everlight Electronics Co Ltd

Catalog

OPTOISOLATOR 5KV TRIAC 6DIP

Part	Output Type	Package / Case	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Current - Hold (Ih)	Current - LED Trigger (Ift) (Max) [Max]	Approval Agency	Current - On State (It (RMS)) (Max) [Max]	Mounting Type	Voltage - Off State	Static dV/dt (Min) [Min]	Current - DC Forward (If) (Max) [Max]	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Number of Channels [custom]
Everlight Electronics Co Ltd EL3062M	Triac	6-DIP	10.16 mm	0.4 in	100 °C	-55 C	280 µA	10 mA	CSA DEMKO FIMKO NEMKO SEMKO UL	100 mA	Through Hole	600 V	1 kV/µs	60 mA	1.5 V	6-DIP	1
Everlight Electronics Co Ltd EL3062-V	Triac	6-DIP (0.300" 7.62mm)			100 °C	-55 C	280 µA	10 mA	CSA DEMKO FIMKO NEMKO SEMKO UL VDE	100 mA	Through Hole	600 V	1 kV/µs	60 mA	1.5 V	6-DIP	1
Everlight Electronics Co Ltd EL3062S(TB)-V	Triac	6-SMD Gull Wing			100 °C	-55 C	280 µA	10 mA	CSA DEMKO FIMKO NEMKO SEMKO UL VDE	100 mA	Surface Mount	600 V	1 kV/µs	60 mA	1.5 V	6-SMD	1
Everlight Electronics Co Ltd EL3062S1(TA)-V	Triac	6-SMD Gull Wing			100 °C	-55 C	280 µA	10 mA	CSA DEMKO FIMKO NEMKO SEMKO UL VDE	100 mA	Surface Mount	600 V	1 kV/µs	60 mA	1.5 V	6-SMD	1
Everlight Electronics Co Ltd EL3062S1(TB)	Triac	6-SMD Gull Wing			100 °C	-55 C	280 µA	10 mA	CSA DEMKO FIMKO NEMKO SEMKO UL	100 mA	Surface Mount	600 V	1 kV/µs	60 mA	1.5 V	6-SMD	1
Everlight Electronics Co Ltd EL3062M-V	Triac	6-DIP	10.16 mm	0.4 in	100 °C	-55 C	280 µA	10 mA	CSA DEMKO FIMKO NEMKO SEMKO UL VDE	100 mA	Through Hole	600 V	1 kV/µs	60 mA	1.5 V	6-DIP	1
Everlight Electronics Co Ltd EL3062S1(TB)-V	Triac	6-SMD Gull Wing			100 °C	-55 C	280 µA	10 mA	CSA DEMKO FIMKO NEMKO SEMKO UL VDE	100 mA	Surface Mount	600 V	1 kV/µs	60 mA	1.5 V	6-SMD	1
Everlight Electronics Co Ltd EL3062S(TA)-V	Triac	6-SMD Gull Wing			100 °C	-55 C	280 µA	10 mA	CSA DEMKO FIMKO NEMKO SEMKO UL VDE	100 mA	Surface Mount	600 V	1 kV/µs	60 mA	1.5 V	6-SMD	1
