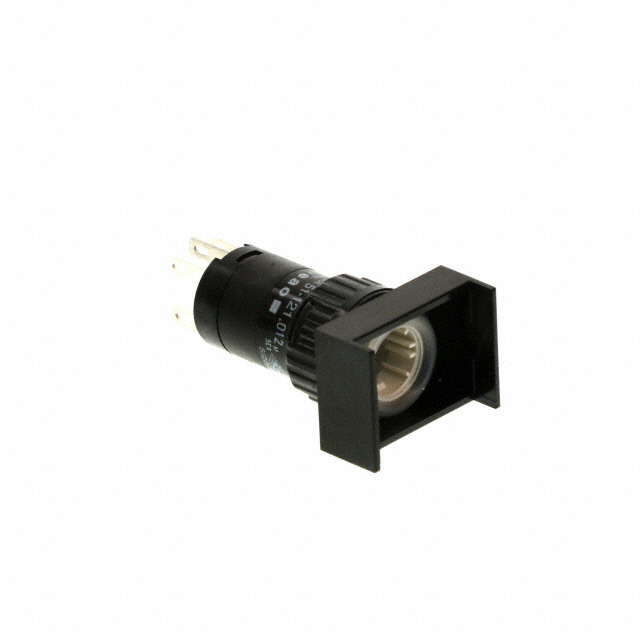

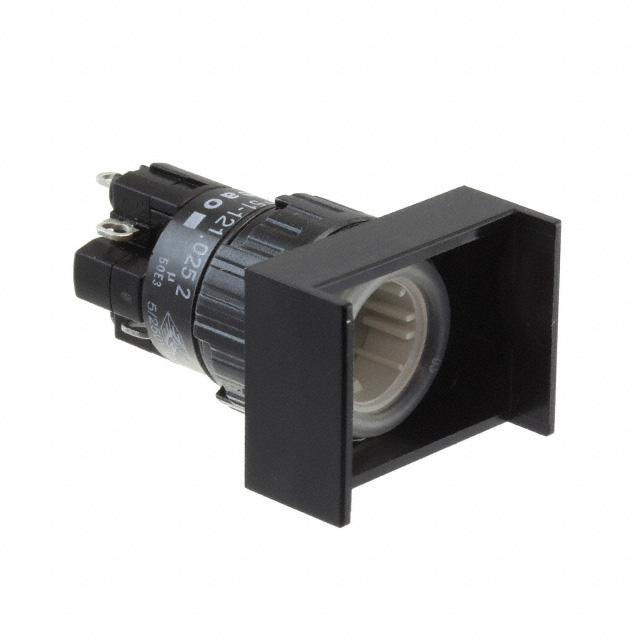

51-121 Series
Manufacturer: EAO
Beta
⌘K
SWITCH PB DPST-NO/NC 5A 250V
| Part | Circuit | Current Rating (Amps) | Actuator Marking | Termination Style | Mechanical Life | Voltage Rating - AC | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Actuator Type | Switch Function | Ingress Protection | Type | Panel Cutout Dimensions [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EAO | DPST-NO/NC | 5 A | No Marking | Solder Lug | 2000000 Cycles | 250 V | 55 °C | -25 °C | Panel Mount Front | Rectangular Button (Not Included) | Off-Mom On-Mom | IP65 - Dust Tight Water Resistant | Standard | 16 mm |
 EAO | DPST-NO/NC | 5 A | No Marking | 2000000 Cycles | 250 V | 55 °C | -25 °C | Panel Mount Front | Rectangular Button (Not Included) | Off-Mom On-Mom | IP65 - Dust Tight Water Resistant | Standard | 16 mm |
