1971818 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

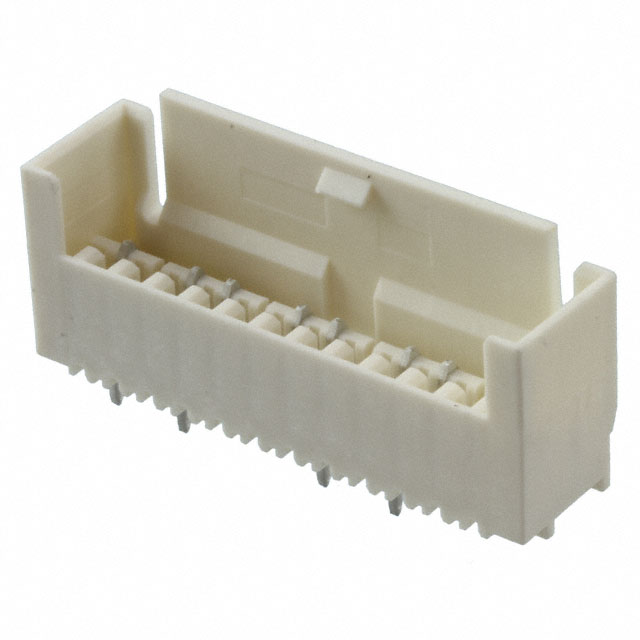

CONN HEADER VERT 12POS 2.5MM
| Part | Number of Positions Loaded | Mounting Type | Termination | Style | Applications | Insulation Height | Insulation Height | Contact Length - Post | Contact Length - Post | Material Flammability Rating | Contact Finish - Post | Contact Type | Number of Positions | Pitch - Mating | Pitch - Mating | Fastening Type | Shrouding | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Contact Shape | Insulation Color | Connector Type | Insulation Material | Features | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | All | Through Hole | Solder | Board to Cable/Wire | General Purpose | 0.61 in | 15.49 mm | 0.114 in | 2.9 mm | UL94 V-0 | Tin | Tab | 12 | 2.5 mm | 0.098 in | Locking Ramp | Shrouded - 4 Wall | 1 | -40 °C | 120 °C | Rectangular | Natural | Header | Nylon Polyamide (PA) | Board Guide Glow Wire Compliant | Copper Alloy |
