H3490 Series

Catalog

PCB SOCKET, 1POS, GOLD, TH ROHS COMPLIANT: YES

Part	Insertion Force [Max]	Insertion Force [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Length - Overall [x]	Length - Overall [x]	Flange Diameter [diameter]	Flange Diameter [diameter]	Socket Depth [x]	Socket Depth [x]	Contact Material	Mounting Hole Diameter [Min]	Mounting Hole Diameter [Min]	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Max]	Contact Finish	Termination	Tail Type

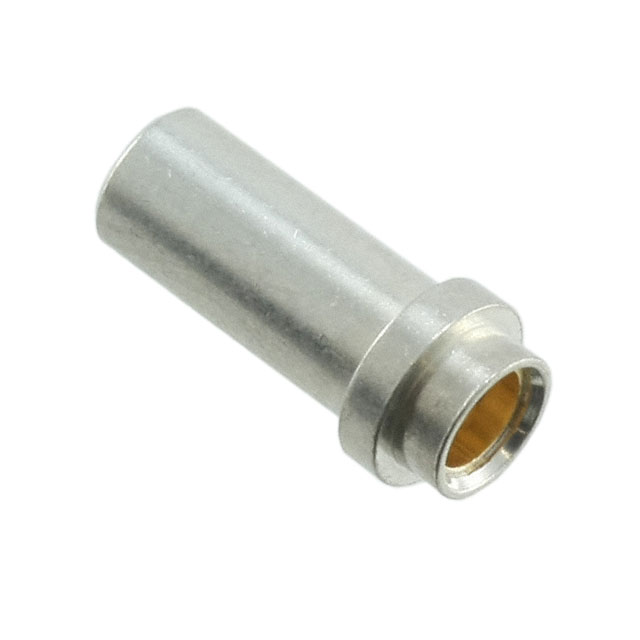

Harwin Inc. H3490-01	6 N	2.99 N	-55 C	125 °C	2 mm	0.091 in	0.079 in	2.3 mm	0.417 in	10.59 mm	0.187 in	4.75 mm	4.09 mm	0.161 in	Beryllium Copper	3.66 mm	0.144 in	0.148 in	3.77 mm	Gold	Solder	No Tail
