1274684 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

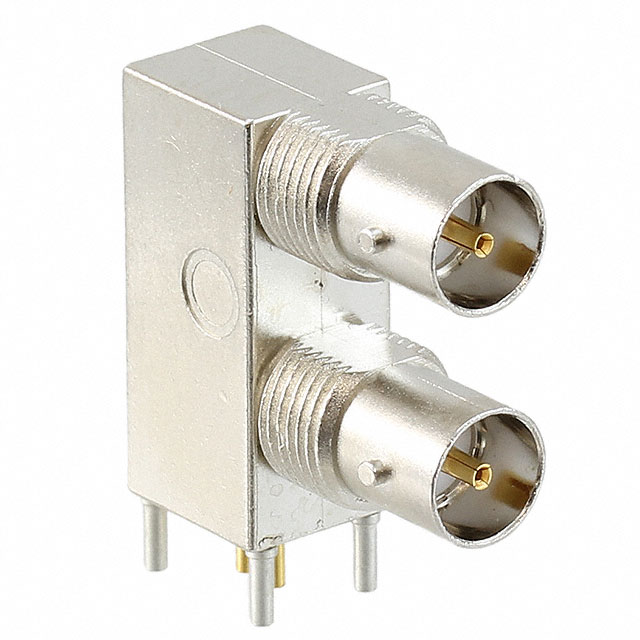

CONN MINI BNC JACK R/A 75OHM PCB
| Part | Body Finish | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Body Material | Voltage Rating | Mating Cycles | Connector Style | Number of Ports | Center Contact Material | Fastening Type | Housing Color | Contact Termination | Frequency - Max [Max] | Impedance | Mounting Type | Shield Termination | Connector Type | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Nickel | Gold | 85 °C | -40 C | Polytetrafluoroethylene (PTFE) | Zinc | 300 VDC | 500 | BNC Mini | 2 | Phosphor Bronze | Bayonet Lock | Silver | Solder | 2 GHz | 75 Ohms | Panel Mount Right Angle Through Hole | Solder | Female Socket Jack | Bulkhead - Front Side Nut |
