GWE32 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN PCI EXP FEMALE 64POS 0.039

Part	Material - Insulation	Pitch	Pitch	Read Out	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Termination	Contact Finish Thickness	Features	Number of Rows [custom]	Contact Material	Card Thickness	Card Thickness	Color	Card Type	Contact Finish	Contact Type	Number of Positions	Gender	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]
Sullins Connector Solutions GWE32DHRQ-T941	Polyamide (PA9T) Nylon 9T	1 mm	0.039 in	Dual	85 °C	-10 °C	Board Edge Straddle Mount	Solder	Flash	Cap Card Extender Locking Ramp	2	Phosphor Bronze	1.57 mm	0.062 in	Black	PCI Express™	Gold	Cantilever	98	Female

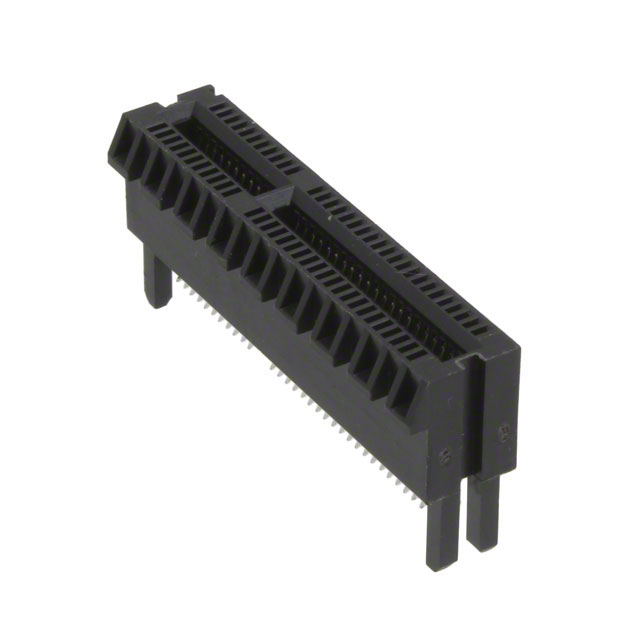

Sullins Connector Solutions GWE32DHRN-T9410	Polyamide (PA9T) Nylon 9T	1 mm	0.039 in	Dual	85 °C	-10 °C	Board Edge Straddle Mount	Solder	Flash	Cap Card Extender Locking Ramp	2	Phosphor Bronze	1.57 mm	0.062 in	Black	PCI Express™	Gold	Cantilever	64	Female	21	11
Sullins Connector Solutions GWE32DHHN-T931	Polyamide (PA9T) Nylon 9T	1 mm	0.039 in	Dual	125 °C	-65 ░C	Through Hole	Solder Staggered	Flash	Board Guide Locking Ramp	2	Phosphor Bronze	1.57 mm	0.062 in		PCI Express™	Gold	Cantilever	64	Female
Sullins Connector Solutions GWE32DHHN-T911	Polyamide (PA9T) Nylon 9T	1 mm	0.039 in	Dual	125 °C	-65 ░C	Through Hole	Solder Staggered	Flash	Board Guide Locking Ramp	2	Phosphor Bronze	1.57 mm	0.062 in		PCI Express™	Gold	Cantilever	64	Female

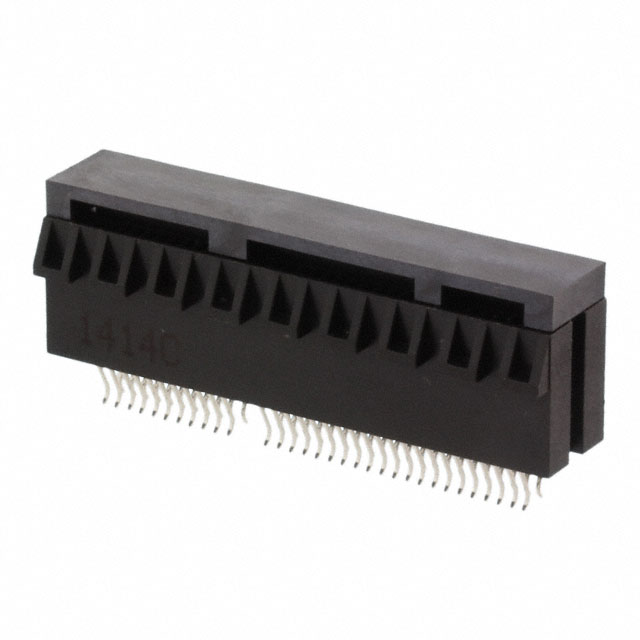

Sullins Connector Solutions GWE32DHRN-T941	Polyamide (PA9T) Nylon 9T	1 mm	0.039 in	Dual	85 °C	-10 °C	Board Edge Straddle Mount	Solder	Flash	Cap Card Extender Locking Ramp	2	Phosphor Bronze	1.57 mm	0.062 in	Black	PCI Express™	Gold	Cantilever	64	Female
