621-037 Series
Manufacturer: EDAC Inc.
Beta
⌘K

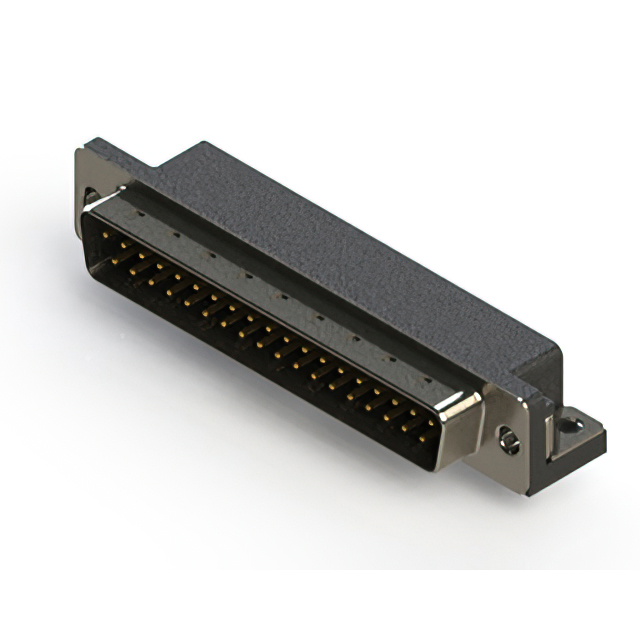

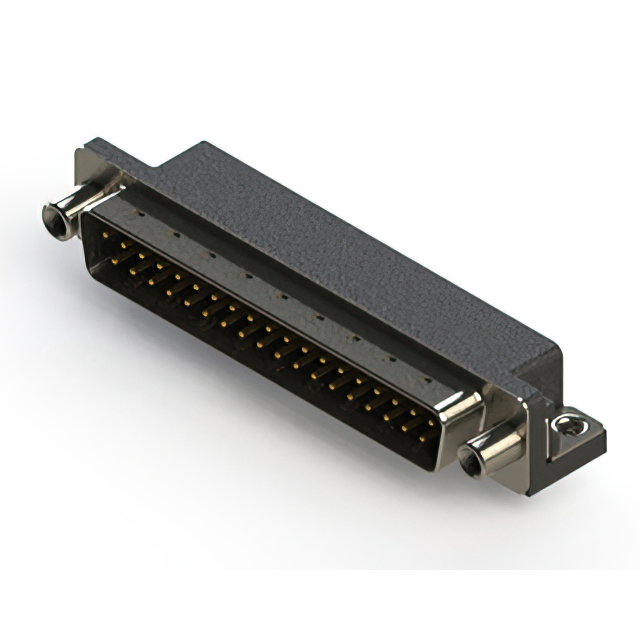

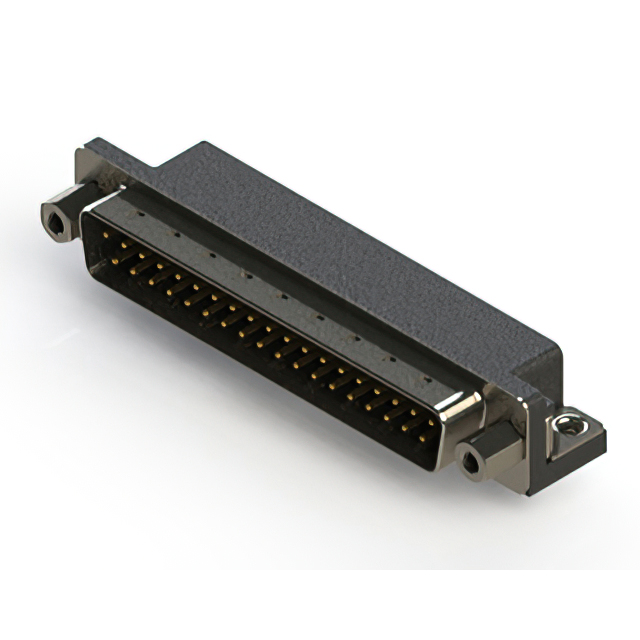

621 SERIES RIGHT ANGLE D-SUB PLU
| Part | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Color | Number of Rows [custom] | Contact Type | Material Flammability Rating | Contact Finish | Connector Style | Backset Spacing | Backset Spacing | Termination | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Features | Number of Positions | Shell Size, Connector Layout | Shell Size, Connector Layout | Mounting Type | Flange Feature | Shell Material, Finish | Current Rating (Amps) | Contact Finish Thickness | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | -55 C | 125 °C | Copper Alloy | Black | 2 | Signal | UL94 V-0 | Gold | D-Sub | 8.08 mm | 0.318 " | Solder | 30 Áin | 0.76 Ám | Plug Male Pins | Board Lock Grounding Indents Mounting Brackets Shielded | 37 | 4 | DC C | Board Edge Right Angle Through Hole | Housing/Shell (M3) | Nickel Plated Steel | 3 A | ||
 EDAC Inc. | Polyester Thermoplastic | -55 C | 125 °C | Copper Alloy | Black | 2 | Signal | UL94 V-0 | Gold | D-Sub | 8.08 mm | 0.318 " | Solder | 15 µin | 0.38 µm | Plug Male Pins | Board Lock Filter Grounding Indents Mounting Brackets Shielded | 37 | 4 | DC C | Board Edge Right Angle Through Hole | Housing/Shell (Unthreaded) | Nickel Plated Steel | 3 A | ||
 EDAC Inc. | Polyester Thermoplastic | -55 C | 125 °C | Copper Alloy | Black | 2 | Signal | UL94 V-0 | Gold | D-Sub | 8.08 mm | 0.318 " | Solder | Plug Male Pins | Grounding Indents Mounting Brackets Shielded | 37 | 4 | DC C | Board Edge Right Angle Through Hole | Housing/Shell | Nickel Plated Steel | 3 A | Flash | 4-40 | ||
 EDAC Inc. | Polyester Thermoplastic | -55 C | 125 °C | Copper Alloy | Black | 2 | Signal | UL94 V-0 | Gold | D-Sub | 8.08 mm | 0.318 " | Solder | 15 µin | 0.38 µm | Plug Male Pins | Board Lock Grounding Indents Mounting Brackets Shielded | 37 | 4 | DC C | Board Edge Right Angle Through Hole | Housing/Shell | Nickel Plated Steel | 3 A | 4-40 | |
 EDAC Inc. | Polyester Thermoplastic | -55 C | 85 °C | Copper Alloy | Black | 2 | Signal | UL94 V-0 | Gold | D-Sub | 8.08 mm | 0.318 " | Solder | 15 µin | 0.38 µm | Plug Male Pins | Filter Grounding Indents Mounting Brackets Shielded | 37 | 4 | DC C | Board Edge Right Angle Through Hole | Housing/Shell (Unthreaded) | Nickel Plated Steel | 3 A | ||
 EDAC Inc. | Polyester Thermoplastic | -55 C | 85 °C | Copper Alloy | Black | 2 | Signal | UL94 V-0 | Gold | D-Sub | 8.08 mm | 0.318 " | Solder | Plug Male Pins | Board Lock Grounding Indents Mounting Brackets Shielded | 37 | 4 | DC C | Board Edge Right Angle Through Hole | Housing/Shell (Unthreaded) | Nickel Plated Steel | 3 A | Flash | |||
 EDAC Inc. | Polyester Thermoplastic | -55 C | 85 °C | Copper Alloy | Black | 2 | Signal | UL94 V-0 | Gold | D-Sub | 8.08 mm | 0.318 " | Solder | 30 Áin | 0.76 Ám | Plug Male Pins | Filter Grounding Indents Mounting Brackets Shielded | 37 | 4 | DC C | Board Edge Right Angle Through Hole | Housing/Shell (Unthreaded) | Nickel Plated Steel | 3 A | ||
 EDAC Inc. | Polyester Thermoplastic | -55 C | 85 °C | Copper Alloy | Black | 2 | Signal | UL94 V-0 | Gold | D-Sub | 8.08 mm | 0.318 " | Solder | 30 Áin | 0.76 Ám | Plug Male Pins | Board Lock Grounding Indents Mounting Brackets Shielded | 37 | 4 | DC C | Board Edge Right Angle Through Hole | Housing/Shell (M3) | Nickel Plated Steel | 3 A | ||
 EDAC Inc. | Polyester Thermoplastic | -55 C | 125 °C | Copper Alloy | Black | 2 | Signal | UL94 V-0 | Gold | D-Sub | 8.08 mm | 0.318 " | Solder | 15 µin | 0.38 µm | Plug Male Pins | Filter Grounding Indents Mounting Brackets Shielded | 37 | 4 | DC C | Board Edge Right Angle Through Hole | Housing/Shell (M3) | Nickel Plated Steel | 3 A | ||
 EDAC Inc. | Polyester Thermoplastic | -55 C | 85 °C | Copper Alloy | Black | 2 | Signal | UL94 V-0 | Gold | D-Sub | 8.08 mm | 0.318 " | Solder | Plug Male Pins | Grounding Indents Mounting Brackets Shielded | 37 | 4 | DC C | Board Edge Right Angle Through Hole | 4-40 Mating Side Female Screwlock | Nickel Plated Steel | 3 A | Flash |
