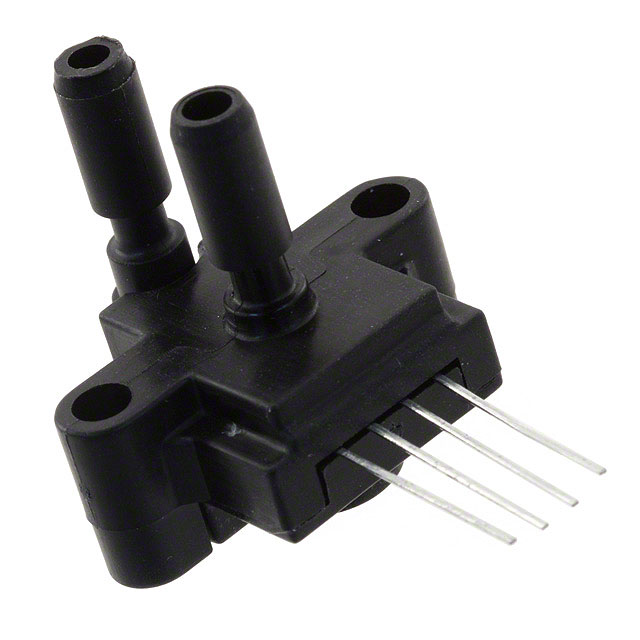

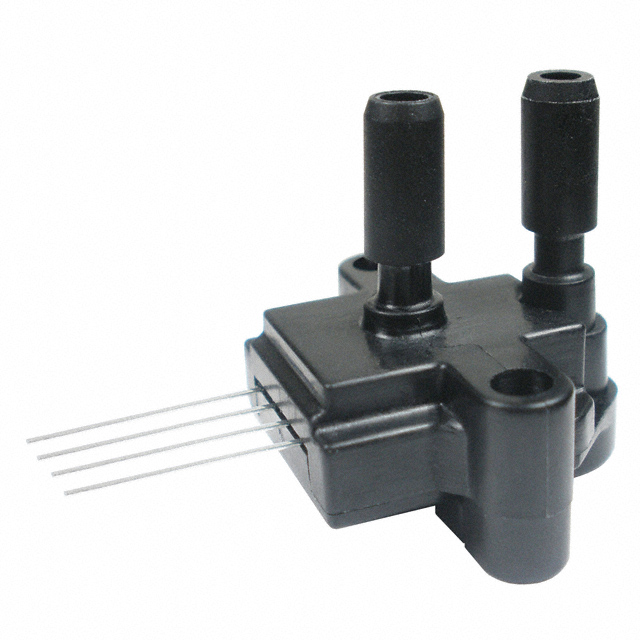

SSCSNBN Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SENSOR 0.07PSID 0.19" 4.5V 4SIP

Part	Accuracy	Features	Port Size	Port Size	Port Size	Port Style	Termination Style	Output Type	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Output [Max]	Output [Min]	Operating Pressure	Operating Pressure	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Applications	Mounting Type	Pressure Type	Maximum Pressure	Maximum Pressure	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Pressure

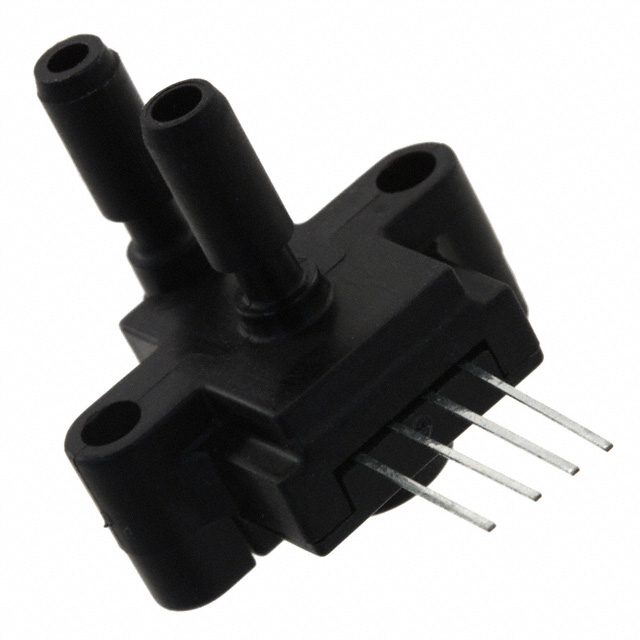

Honeywell Sensing and Productivity Solutions SSCSNBN002NDAA5	0.25 %	Amplified Output Temperature Compensated	0.19 in	Dual Male Tube	4.8 mm	Barbless	PC Pin	Analog Voltage	4-SIP	85 °C	-40 C	4.5 V	0.5 V	0.5 kPa	0.07 PSI	4.95 V	5.05 V	4-SIP Dual Ports Same Side	Board Mount	Through Hole	Differential
Honeywell Sensing and Productivity Solutions SSCSNBN001BAAA5	0.25 %	Amplified Output Temperature Compensated	0.19 in	Dual Male Tube	4.8 mm	Barbless	PC Pin	Analog Voltage	4-SIP	85 °C	-40 C	4.5 V	0.5 V	1 bar	14.5 PSI	4.75 V	5.25 V	4-SIP Dual Ports Same Side	Board Mount	Through Hole		29.01 PSI	200 kPa
Honeywell Sensing and Productivity Solutions SSCSNBN060MDAC5	0.25 %	Amplified Output Temperature Compensated	0.19 in	Dual Male Tube	4.8 mm	Barbless	PC Pin	Analog Voltage	4-SIP	85 °C	-40 C	4.25 V	0.25 V	6 kPa	0.87 PSI	4.75 V	5.25 V	4-SIP Dual Ports Same Side	Board Mount	Through Hole	Differential	9.79 PSI	67.5 kPa
Honeywell Sensing and Productivity Solutions SSCSNBN150PAAB5	0.25 %	Amplified Output Temperature Compensated	0.19 in	Dual Male Tube	4.8 mm	Barbless	PC Pin	Analog Voltage	4-SIP	85 °C	-40 C	4.75 V	0.25 V	1034.21 kPa	150 PSI	4.75 V	5.25 V	4-SIP Dual Ports Same Side	Board Mount	Through Hole		250 PSI	1723.69 kPa
Honeywell Sensing and Productivity Solutions SSCSNBN010NGAA5	0.25 %	Amplified Output Temperature Compensated	0.19 in	Dual Male Tube	4.8 mm	Barbless	PC Pin	Analog Voltage	4-SIP	85 °C	-40 C	4.5 V	0.5 V	2.49 kPa	0.36 PSI	4.95 V	5.05 V	4-SIP Dual Ports Same Side	Board Mount	Through Hole	Vented Gauge			74.75 kPa	10.84 PSI
Honeywell Sensing and Productivity Solutions SSCSNBN150PAAA5	0.25 %	Amplified Output Temperature Compensated	0.19 in	Dual Male Tube	4.8 mm	Barbless	PC Pin	Analog Voltage	4-SIP	85 °C	-40 C	4.5 V	0.5 V	1034.21 kPa	150 PSI	4.75 V	5.25 V	4-SIP Dual Ports Same Side	Board Mount	Through Hole		250 PSI	1723.69 kPa
Honeywell Sensing and Productivity Solutions SSCSNBN001PGAA5	0.25 %	Amplified Output Temperature Compensated	0.19 in	Dual Male Tube	4.8 mm	Barbless	PC Pin	Analog Voltage	4-SIP	85 °C	-40 C	4.5 V	0.5 V	6.89 kPa	1 PSI	4.75 V	5.25 V	4-SIP Dual Ports Same Side	Board Mount	Through Hole	Vented Gauge			68.95 kPa	10 PSI
Honeywell Sensing and Productivity Solutions SSCSNBN100MGAA5	0.25 %	Amplified Output Temperature Compensated	0.19 in	Dual Male Tube	4.8 mm	Barbless	PC Pin	Analog Voltage	4-SIP	85 °C	-40 C	4.5 V	0.5 V	10 kPa	1.45 PSI	4.75 V	5.25 V	4-SIP Dual Ports Same Side	Board Mount	Through Hole	Vented Gauge	12.33 PSI	85 kPa
Honeywell Sensing and Productivity Solutions SSCSNBN030PGAB5	0.25 %	Amplified Output Temperature Compensated	0.19 in	Dual Male Tube	4.8 mm	Barbless	PC Pin	Analog Voltage	4-SIP	85 °C	-40 C	4.75 V	0.25 V	206.84 kPa	30 PSI	4.75 V	5.25 V	4-SIP Dual Ports Same Side	Board Mount	Through Hole	Vented Gauge			413.69 kPa	60 PSI
Honeywell Sensing and Productivity Solutions SSCSNBN030NDAA5	0.25 %	Amplified Output Temperature Compensated	0.19 in	Dual Male Tube	4.8 mm	Barbless	PC Pin	Analog Voltage	4-SIP	85 °C	-40 C	4.5 V	0.5 V	1.08 PSI		4.75 V	5.25 V	4-SIP Dual Ports Same Side	Board Mount	Through Hole	Differential	12.64 PSI	87.15 kPa			7.48 kPa
