796981 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

TERM BLOCK PLUG 4POS STR 7.62MM

Part	Wire Strip Length [Max]	Wire Strip Length [Min]	Material Flammability Rating	Insulation Height	Insulation Height	Torque - Screw	Torque - Screw	Screw Size	Contact Material	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Number of Positions	Mounting Type	Positions Per Level	Contact Mating Finish	Pitch	Pitch	Plug Wire Entry	Color	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Levels	Termination Style	Type	Voltage - UL	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]
TE Connectivity AMP Connectors 796981-4	7.5 mm	6 mm	UL94 V-0	0.61 in	15.49 mm	7 Lb-In	0.79 Nm	M3	Phosphor Bronze	3 mm˛	0.05 mm˛	4	Free Hanging (In-Line)	4	Tin	0.3 in	7.62 mm	180 °	Green	3 mm²	0.05 mm²	-40 C	110 °C	1	Screw - Rising Cage Clamp	Plug Female Sockets	300 V	30 AWG	12 AWG
TE Connectivity AMP Connectors 1-796981-0	7.5 mm	6 mm	UL94 V-0	0.61 in	15.49 mm	7 Lb-In	0.79 Nm	M3	Phosphor Bronze	3 mm˛	0.05 mm˛	10	Free Hanging (In-Line)	10	Tin	0.3 in	7.62 mm	180 °	Green	3 mm²	0.05 mm²	-40 C	110 °C	1	Screw - Rising Cage Clamp	Plug Female Sockets	300 V	30 AWG	12 AWG
TE Connectivity AMP Connectors 796981-3	7.5 mm	6 mm	UL94 V-0	0.61 in	15.49 mm	7 Lb-In	0.79 Nm	M3	Phosphor Bronze				Free Hanging (In-Line)	3	Tin	0.3 in	7.62 mm	180 °	Green	3 mm²	0.05 mm²	-40 C	110 °C	1	Screw - Rising Cage Clamp	Plug Female Sockets	300 V	30 AWG	12 AWG

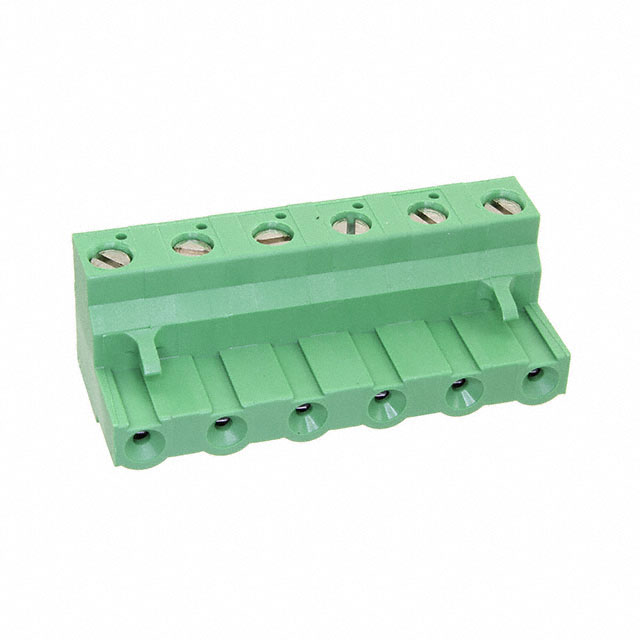

TE Connectivity AMP Connectors 796981-6	7.5 mm	6 mm	UL94 V-0	0.61 in	15.49 mm	7 Lb-In	0.79 Nm	M3	Phosphor Bronze	3 mm˛	0.05 mm˛	6	Free Hanging (In-Line)	6	Tin	0.3 in	7.62 mm	180 °	Green	3 mm²	0.05 mm²	-40 C	110 °C	1	Screw - Rising Cage Clamp	Plug Female Sockets	300 V	30 AWG	12 AWG
TE Connectivity AMP Connectors 796981-9	7.5 mm	6 mm	UL94 V-0	0.61 in	15.49 mm	7 Lb-In	0.79 Nm	M3	Phosphor Bronze			9	Free Hanging (In-Line)	9	Tin	0.3 in	7.62 mm	180 °	Green	3 mm²	0.05 mm²	-40 C	110 °C	1	Screw - Rising Cage Clamp	Plug Female Sockets	300 V	30 AWG	12 AWG
TE Connectivity AMP Connectors 796981-8	7.5 mm	6 mm	UL94 V-0	0.61 in	15.49 mm	7 Lb-In	0.79 Nm	M3	Phosphor Bronze			8	Free Hanging (In-Line)	8	Tin	0.3 in	7.62 mm	180 °	Green	3 mm²	0.05 mm²	-40 C	110 °C	1	Screw - Rising Cage Clamp	Plug Female Sockets	300 V	30 AWG	12 AWG
TE Connectivity AMP Connectors 796981-5	7.5 mm	6 mm	UL94 V-0	0.61 in	15.49 mm	7 Lb-In	0.79 Nm	M3	Phosphor Bronze			5	Free Hanging (In-Line)	5	Tin	0.3 in	7.62 mm	180 °	Green	3 mm²	0.05 mm²	-40 C	110 °C	1	Screw - Rising Cage Clamp	Plug Female Sockets	300 V	30 AWG	12 AWG
