6377 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

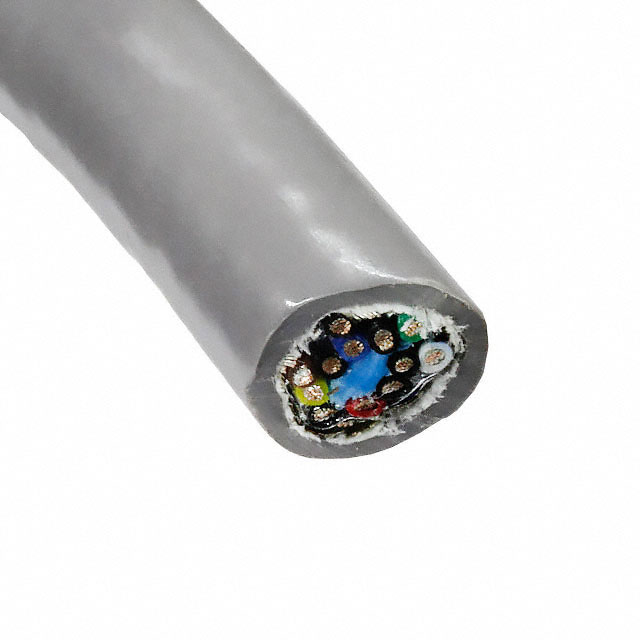

MULTIPAIR CABLE, COMMUNICATION, SHIELDED, 6 PAIR, 22 AWG, 0.35 MM², 1000 FT, 304.8 M
| Part | Shield Material | Shield Coverage | Length | Length | Cable Type | Number of Conductors | Jacket (Insulation) Material | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Features | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Voltage | Shield Type | Ratings | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | 304.8 m | 1000 ft | Multi-Pair | 12 | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | Copper Tinned | Drain Wire | 28 AWG | 7 | Slate | 0.337 " | 8.56 mm | 22 AWG | 300 VDC | Braid Foil | UL Style 2464 | ||
 ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | Multi-Pair | 12 | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | Copper Tinned | Drain Wire | 28 AWG | 7 | Slate | 0.337 " | 8.56 mm | 22 AWG | 300 VDC | Braid Foil | UL Style 2464 | 100 ft | 30.5 m | ||
ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | 152.4 m | 500 ft | Multi-Pair | 12 | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | Copper Tinned | Drain Wire | 28 AWG | 7 | Slate | 0.337 " | 8.56 mm | 22 AWG | 300 VDC | Braid Foil | UL Style 2464 |
