25003 Series

Catalog

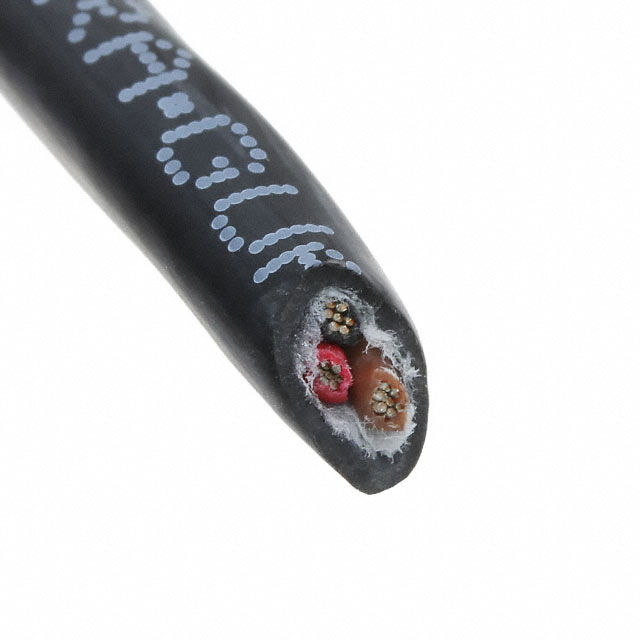

CABLE 3COND 22AWG BLACK FEET

Part	Spool Size [x]	Spool Size [x]	Length	Conductor Insulation	Conductor Material	Cable Type	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Wire Gauge	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Features	Jacket (Insulation) Material	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length	Length [x]	Length [x]
ALPHA WIRE 25003 BK199	304.8 m	1000 ft	Enter Number of Feet in Order Quantity	Poly-Vinyl Chloride (PVC)	Copper Tinned	Multi-Conductor	3	30 AWG	7	300 VDC	22 AWG	ISO 10993 UL Style 20668	-30 ░C	90 °C	Biological Compatibility Rip Cord	Polyurethane (PU)	Black	0.176 in	4.47 mm	0.813 mm	0.032 in
ALPHA WIRE 25003 SL199				Poly-Vinyl Chloride (PVC)	Copper Tinned	Multi-Conductor	3	30 AWG	7	300 VDC	22 AWG	ISO 10993 UL Style 20668	-30 ░C	90 °C	Biological Compatibility Rip Cord	Polyurethane (PU)	Slate	0.176 in	4.47 mm	0.813 mm	0.032 in	304.8 m	1000 ft
ALPHA WIRE 25003 YL199				Poly-Vinyl Chloride (PVC)	Copper Tinned	Multi-Conductor	3	30 AWG	7	300 VDC	22 AWG	ISO 10993 UL Style 20668	-30 ░C	90 °C	Biological Compatibility Rip Cord	Polyurethane (PU)	Yellow	0.176 in	4.47 mm	0.813 mm	0.032 in	304.8 m	1000 ft
ALPHA WIRE 25003 BK005				Poly-Vinyl Chloride (PVC)	Copper Tinned	Multi-Conductor	3	30 AWG	7	300 VDC	22 AWG	ISO 10993 UL Style 20668	-30 ░C	90 °C	Biological Compatibility Rip Cord	Polyurethane (PU)	Black	0.176 in	4.47 mm	0.813 mm	0.032 in			100 ft	30.5 m
