832-80 Series

Manufacturer: Preci-Dip

Catalog

Catalog

CONN HEADER SMD 46POS 2MM

...

Part	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Voltage Rating	Contact Finish - Post	Number of Rows [custom]	Mounting Type	Contact Length - Mating	Contact Length - Mating	Contact Material	Number of Positions	Connector Type	Contact Type	Termination	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Contact Shape	Pitch - Mating	Pitch - Mating	Shrouding	Number of Positions Loaded	Current Rating (Amps)	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height	Overall Contact Length	Overall Contact Length	Number of Positions [custom]

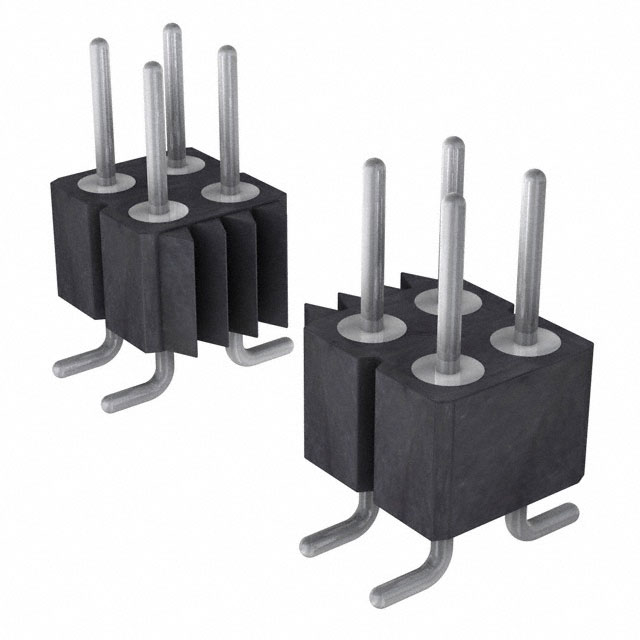

Preci-Dip 832-80-046-30-001101	UL94 V-0	2 mm	0.079 in	150 VDC	Tin	2	Surface Mount	0.141 in	3.6 mm	Brass	46	Header	Male Pin	Solder	Push-Pull	-55 C	125 °C	Black	Circular	0.079 "	2 mm	Unshrouded	All	3 A

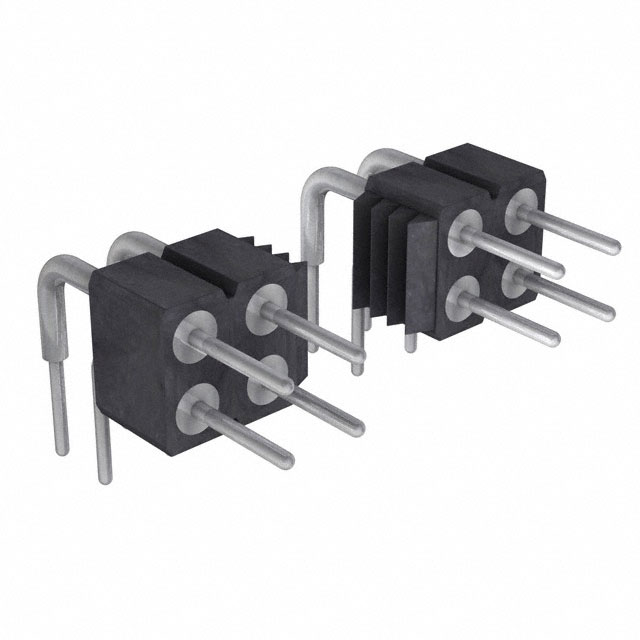

Preci-Dip 832-80-040-20-001101	UL94 V-0	2 mm	0.079 in	150 VDC	Tin	2	Right Angle Through Hole	0.141 in	3.6 mm	Brass	40	Header	Male Pin	Solder	Push-Pull	-55 C	125 °C	Black	Circular	0.079 "	2 mm	Unshrouded	All	3 A	0.126 "	3.2 mm	0.165 in	4.2 mm
Preci-Dip 832-80-070-20-001101	UL94 V-0	2 mm	0.079 in	150 VDC	Tin	2	Right Angle Through Hole	0.141 in	3.6 mm	Brass	70	Header	Male Pin	Solder	Push-Pull	-55 C	125 °C	Black	Circular	0.079 "	2 mm	Unshrouded	All	3 A	0.126 "	3.2 mm	0.165 in	4.2 mm
Preci-Dip 832-80-094-20-001101	UL94 V-0	2 mm	0.079 in	150 VDC	Tin	2	Right Angle Through Hole	0.141 in	3.6 mm	Brass	94	Header	Male Pin	Solder	Push-Pull	-55 C	125 °C	Black	Circular	0.079 "	2 mm	Unshrouded	All	3 A	0.126 "	3.2 mm	0.165 in	4.2 mm
Preci-Dip 832-80-086-30-001101	UL94 V-0	2 mm	0.079 in	150 VDC	Tin	2	Surface Mount	0.141 in	3.6 mm	Brass	86	Header	Male Pin	Solder	Push-Pull	-55 C	125 °C	Black	Circular	0.079 "	2 mm	Unshrouded	All	3 A
Preci-Dip 832-80-058-30-001101	UL94 V-0	2 mm	0.079 in	150 VDC	Tin	2	Surface Mount	0.141 in	3.6 mm	Brass	58	Header	Male Pin	Solder	Push-Pull	-55 C	125 °C	Black	Circular	0.079 "	2 mm	Unshrouded	All	3 A

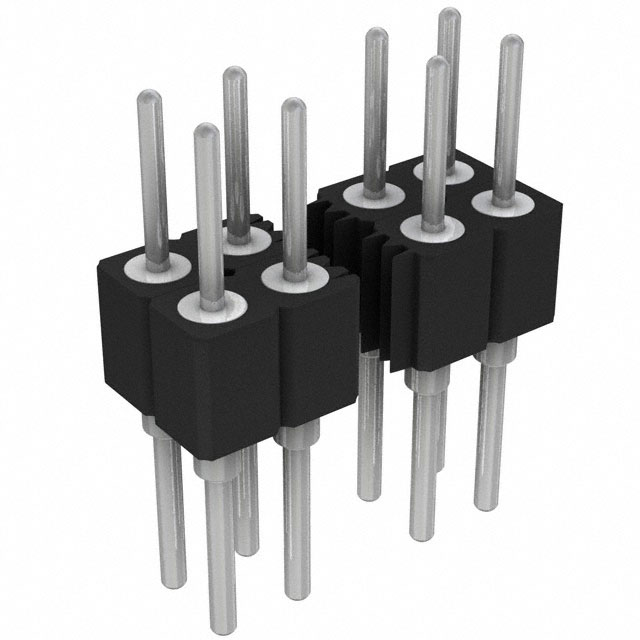

Preci-Dip 832-80-074-10-001101	UL94 V-0	2 mm	0.079 in	150 VDC	Tin	2	Through Hole	0.141 in	3.6 mm	Brass	74	Header	Male Pin	Solder	Push-Pull	-55 C	125 °C	Black	Circular	0.079 "	2 mm	Unshrouded	All	3 A	0.114 in	2.9 mm			10 mm	0.394 in
Preci-Dip 832-80-072-20-001101	UL94 V-0	2 mm	0.079 in	150 VDC	Tin	2	Right Angle Through Hole	0.141 in	3.6 mm	Brass	72	Header	Male Pin	Solder	Push-Pull	-55 C	125 °C	Black	Circular	0.079 "	2 mm	Unshrouded	All	3 A	0.126 "	3.2 mm	0.165 in	4.2 mm
Preci-Dip 832-80-026-20-001101	UL94 V-0	2 mm	0.079 in	150 VDC	Tin	2	Right Angle Through Hole	0.141 in	3.6 mm	Brass	26	Header	Male Pin	Solder	Push-Pull	-55 C	125 °C	Black	Circular	0.079 "	2 mm	Unshrouded	All	3 A	0.126 "	3.2 mm	0.165 in	4.2 mm
Preci-Dip 832-80-034-20-001101	UL94 V-0	2 mm	0.079 in	150 VDC	Tin	2	Right Angle Through Hole	0.141 in	3.6 mm	Brass		Header	Male Pin	Solder	Push-Pull	-55 C	125 °C	Black	Circular	0.079 "	2 mm	Unshrouded	All	3 A	0.126 "	3.2 mm	0.165 in	4.2 mm			34
