534204 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

MODU 2-PC CE RECP ASSY 40 POS, ROHS

Part	Contact Finish Thickness - Post	Contact Material	Contact Shape	Number of Rows	Insulation Color	Contact Finish - Mating	Row Spacing - Mating	Termination	Contact Finish Thickness - Mating	Number of Positions Loaded	Style	Number of Positions	Pitch - Mating	Connector Type	Fastening Type	Insulation Height	Mounting Type	Contact Type	Contact Length - Post	Contact Finish - Post	Features	Insulation Material
TE Connectivity AMP Connectors 6-534204-2	50 µin	Phosphor Bronze	Square	2	Black	Gold	0.1 in	Kinked Pin Solder	30 µin	All	Board	40	0.1 in	Receptacle	Push-Pull	0.238 in	Right Angle Through Hole	Female Socket	0.115 in	Tin	Guide Pin Ears
TE Connectivity AMP Connectors 1-534204-2	50 µin	Phosphor Bronze	Square	2	Black	Gold	0.1 in	Kinked Pin Solder	30 µin	All	Board	40	0.1 in	Receptacle	Push-Pull	0.238 in	Right Angle Through Hole	Female Socket	0.115 in	Tin-Lead	Guide Pin Ears
TE Connectivity AMP Connectors 6-534204-4	50 µin	Phosphor Bronze	Square	2	Black	Gold	0.1 in	Kinked Pin Solder	30 µin	All	Board	72	0.1 in	Receptacle	Push-Pull	0.238 in	Right Angle Through Hole	Female Socket	0.115 in	Tin	Guide Pin Ears	Glass Filled Polyphenylene Sulfide (PPS)

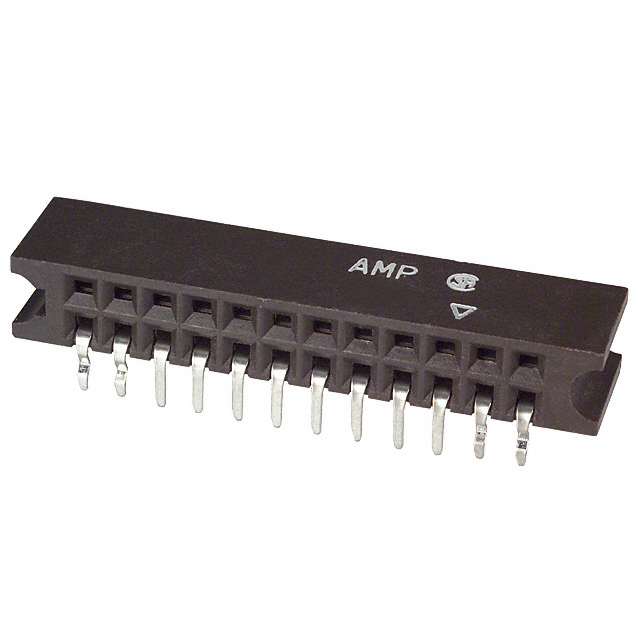

TE Connectivity AMP Connectors 1-534204-1	50 µin	Phosphor Bronze	Square	2	Black	Gold	0.1 in	Kinked Pin Solder	30 µin	All	Board	24 pos	0.1 in	Receptacle	Push-Pull	0.238 in	Right Angle Through Hole	Female Socket	0.115 in	Tin-Lead	Guide Pin Ears

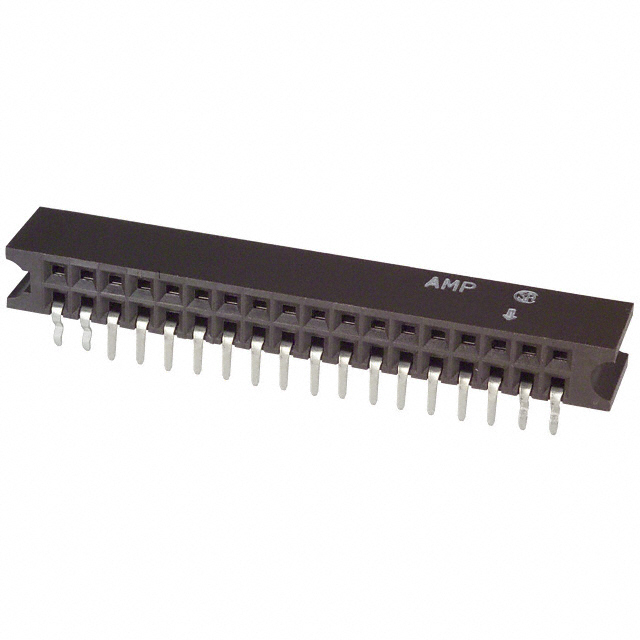

TE Connectivity AMP Connectors 5-534204-3	50 µin	Phosphor Bronze	Square	2	Black	Gold	0.1 in	Kinked Pin Solder	30 µin	All	Board	36	0.1 in	Receptacle	Push-Pull	0.238 in	Right Angle Through Hole	Female Socket	0.115 in	Tin	Guide Pin Ears
TE Connectivity AMP Connectors 534204-3	50 µin	Phosphor Bronze	Square	2	Black	Gold	0.1 in	Kinked Pin Solder	30 µin	All	Board	36	0.1 in	Receptacle	Push-Pull	0.238 in	Right Angle Through Hole	Female Socket	0.115 in	Tin-Lead	Guide Pin Ears

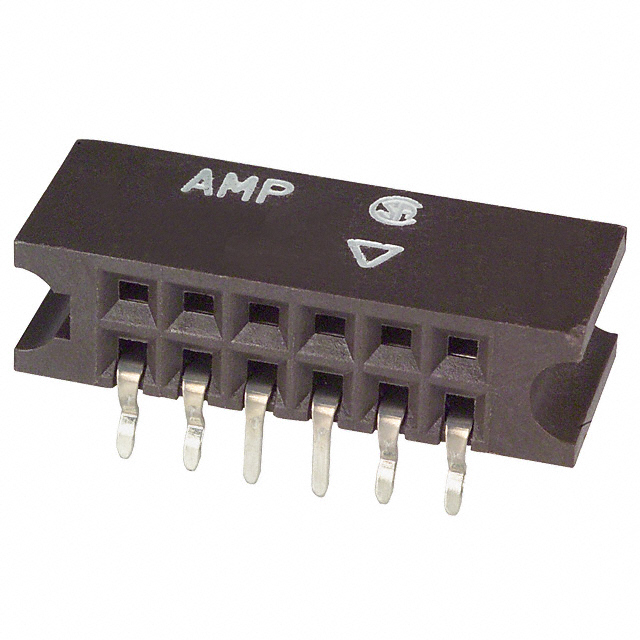

TE Connectivity AMP Connectors 534204-2	50 µin	Phosphor Bronze	Square	2	Black	Gold	0.1 in	Kinked Pin Solder	30 µin	All	Board	12	0.1 in	Receptacle	Push-Pull	0.238 in	Right Angle Through Hole	Female Socket	0.115 in	Tin-Lead	Guide Pin Ears

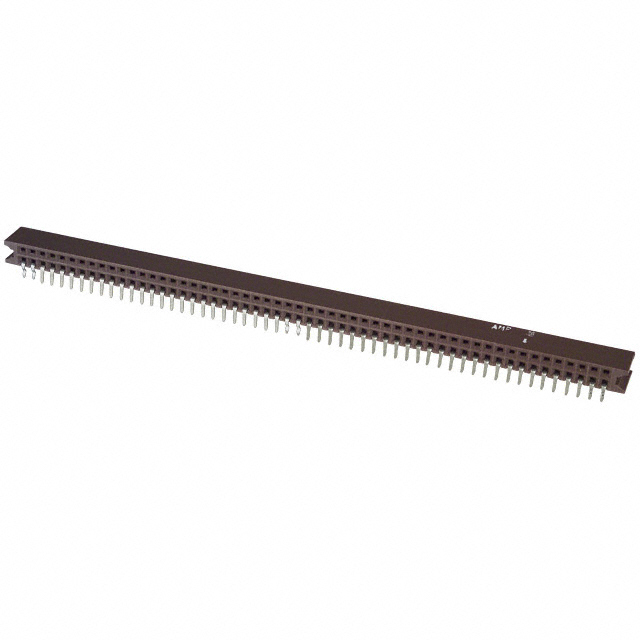

TE Connectivity AMP Connectors 1-534204-6	50 µin	Phosphor Bronze	Square	2	Black	Gold	0.1 in	Kinked Pin Solder	30 µin	All	Board	110	0.1 in	Receptacle	Push-Pull	0.238 in	Right Angle Through Hole	Female Socket	0.115 in	Tin-Lead	Guide Pin Ears	Glass Filled Polyphenylene Sulfide (PPS)
