125SH-D Series
Manufacturer: Adam Tech
Beta
⌘K
CONN HDR SMD R/A 5POS 1.25MM
| Part | Termination | Insulation Material | Shrouding | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Contact Finish - Post | Number of Positions | Contact Type | Features | Number of Rows | Contact Shape | Voltage Rating | Insulation Color | Insulation Height | Insulation Height | Number of Positions Loaded | Connector Type | Mounting Type | Style | Fastening Type | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Solder | Thermoplastic | Shrouded - 4 Wall | 0.049 in | 1.25 mm | UL94 V-0 | Tin | 5 | Male Pin | Board Guide Solder Retention | 1 | Rectangular | 100 VAC | Natural | 0.134 in | 3.4 mm | All | Header | Right Angle Surface Mount | Board to Board Cable | Friction Lock | Brass | 85 °C | -40 C |

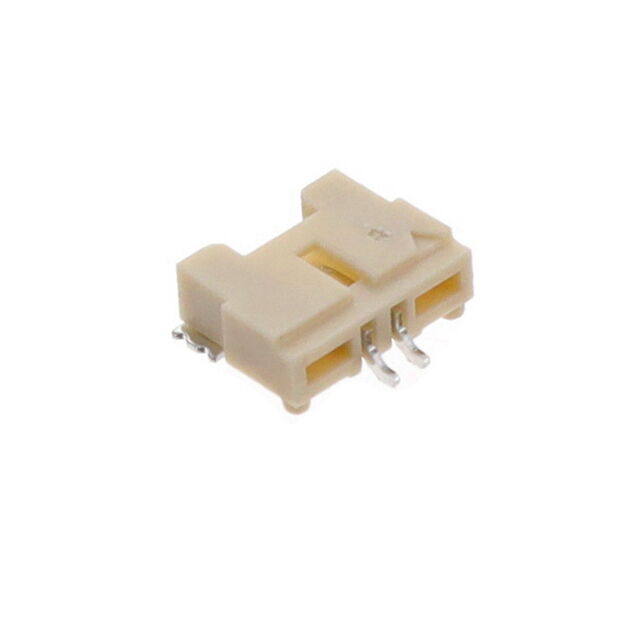

 Adam Tech | Solder | Thermoplastic | Shrouded - 4 Wall | 0.049 in | 1.25 mm | UL94 V-0 | Tin | 2 | Male Pin | Board Guide Solder Retention | 1 | Rectangular | 100 VAC | Natural | 0.134 in | 3.4 mm | All | Header | Right Angle Surface Mount | Board to Board Cable | Friction Lock | Brass | 85 °C | -40 C |
