83027 Series

Catalog

HOOK-UP STRND 20AWG BROWN

Part	Cable Type	Length [x]	Length [x]	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Features	Operating Temperature	Jacket Color	Ratings	Qualification	Wire Gauge	Jacket (Insulation) Material	Length	Length
Belden Inc. 83027 001100	Hook-Up	100 ft	30.5 m	1.73 mm	0.068 in	0.38 mm	0.015 in	300 VDC	Copper Silver Coated	19	32 AWG	High Temperature	200 °C	Brown	UL Style 1180	MIL-W-16878/5	20 AWG	Tetrafluoroethylene (TFE)
Belden Inc. 83027 009100	Hook-Up	100 ft	30.5 m	1.73 mm	0.068 in	0.38 mm	0.015 in	300 VDC	Copper Silver Coated	19	32 AWG	High Temperature	200 °C	White	UL Style 1180	MIL-W-16878/5	20 AWG	Tetrafluoroethylene (TFE)
Belden Inc. 83027 0061000	Hook-Up			1.73 mm	0.068 in	0.38 mm	0.015 in	300 VDC	Copper Silver Coated	19	32 AWG	High Temperature		Blue	UL Style 1180	MIL-W-16878/5	20 AWG	Tetrafluoroethylene (TFE)	304.8 m	1000 ft
Belden Inc. 83027 002100	Hook-Up	100 ft	30.5 m	1.73 mm	0.068 in	0.38 mm	0.015 in	300 VDC	Copper Silver Coated	19	32 AWG	High Temperature	200 °C	Red	UL Style 1180	MIL-W-16878/5	20 AWG	Tetrafluoroethylene (TFE)

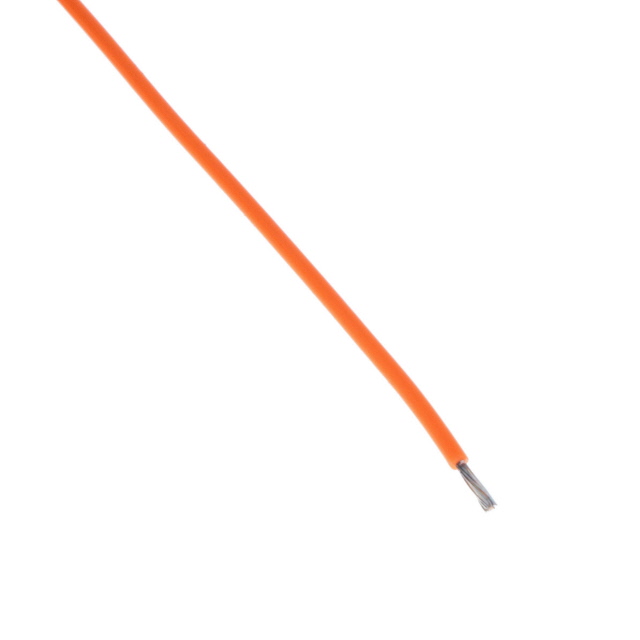

Belden Inc. 83027 0031000	Hook-Up			1.73 mm	0.068 in	0.38 mm	0.015 in	300 VDC	Copper Silver Coated	19	32 AWG	High Temperature		Orange	UL Style 1180	MIL-W-16878/5	20 AWG	Tetrafluoroethylene (TFE)	304.8 m	1000 ft
Belden Inc. 83027 0091000	Hook-Up			1.73 mm	0.068 in	0.38 mm	0.015 in	300 VDC	Copper Silver Coated	19	32 AWG	High Temperature		White	UL Style 1180	MIL-W-16878/5	20 AWG	Tetrafluoroethylene (TFE)	304.8 m	1000 ft
Belden Inc. 83027 010100	Hook-Up	100 ft	30.5 m	1.73 mm	0.068 in	0.38 mm	0.015 in	300 VDC	Copper Silver Coated	19	32 AWG	High Temperature	200 °C	Black	UL Style 1180	MIL-W-16878/5	20 AWG	Tetrafluoroethylene (TFE)
Belden Inc. 83027 007100	Hook-Up	100 ft	30.5 m	1.73 mm	0.068 in	0.38 mm	0.015 in	300 VDC	Copper Silver Coated	19	32 AWG	High Temperature		Violet	UL Style 1180	MIL-W-16878/5	20 AWG	Tetrafluoroethylene (TFE)
Belden Inc. 83027 0101000	Hook-Up			1.73 mm	0.068 in	0.38 mm	0.015 in	300 VDC	Copper Silver Coated	19	32 AWG	High Temperature		Black	UL Style 1180	MIL-W-16878/5	20 AWG	Tetrafluoroethylene (TFE)	304.8 m	1000 ft
Belden Inc. 83027 004100	Hook-Up	100 ft	30.5 m	1.73 mm	0.068 in	0.38 mm	0.015 in	300 VDC	Copper Silver Coated	19	32 AWG	High Temperature		Yellow	UL Style 1180	MIL-W-16878/5	20 AWG	Tetrafluoroethylene (TFE)
