OSTTE08 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

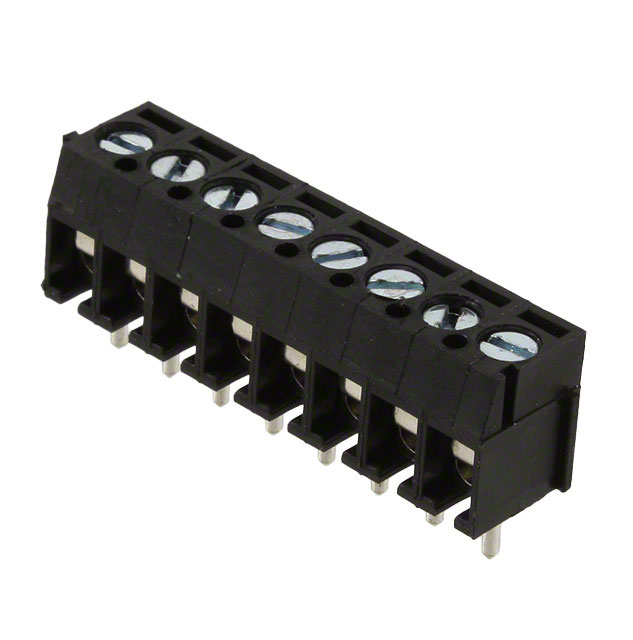

TERM BLK 8POS SIDE ENT 3.5MM PCB
| Part | Housing Material | Features | Screw Material - Plating | Wire Termination | Positions Per Level | Current | Pitch [x] | Pitch [x] | Contact Material - Plating [custom] | Wire Gauge [Max] | Wire Gauge [Min] | Color | Clamp Material - Plating | Voltage | Mating Orientation | Screw Thread | Number of Levels | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Torque - Screw | Torque - Screw | Contact Material - Plating [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | Thermoplastic | Interlocking (Side) | Steel Zinc Plated | Screw - Leaf Spring Wire Guard | 8 | 10 A | 3.5 mm | 0.138 in | Tin Plated | 26 AWG | 16 AWG | Black | Stainless Steel | 125 V | Horizontal with Board | M2 | 1 | Through Hole | -40 °C | 115 °C | 0.2 Nm | 1.7 Lb-In | |
 On Shore Technology Inc. | Polyamide (PA) Nylon | Interlocking (Side) | Steel Galvanized - Chromate Plated | Screw | 8 | 10 A | 26 AWG | 16 AWG | Stainless Steel | 125 V | Horizontal with Board | M2 | 1 | Through Hole | -33 °C | 120 °C | 0.15 Nm | 1.3 Lb-In | Brass |
