HDSP-U1 Series

Catalog

DISPLAY 7SEG 0.31" SGL RED 10DIP

Part	Common Pin	Package / Case	Display Type	Current - Test	Power Dissipation (Max) [Max]	Color	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Wavelength - Peak	Number of Characters [custom]	Digit/Alpha Size	Digit/Alpha Size

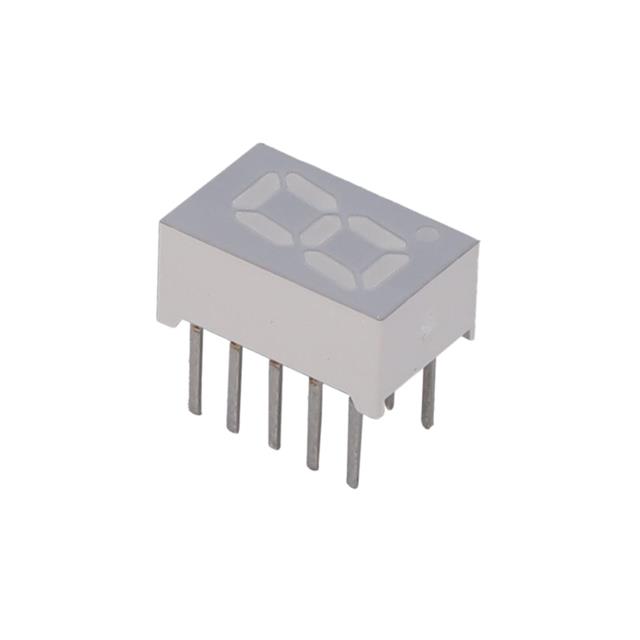

Broadcom Limited HDSP-U103	Common Cathode	10-DIP	7-Segment	5 mA	37 mW	Red	3.6 mcd	1.7 V	11 mm	0.28 in	0.433 in	7.1 mm	0.197 in	5 mm	645 nm	1	8 mm	0.31 in
Broadcom Limited HDSP-U113-FG000	Common Cathode	10-DIP	7-Segment	5 mA	37 mW	Red	3.6 mcd	1.7 V	11 mm	0.28 in	0.433 in	7.1 mm	0.197 in	5 mm	645 nm	1	8 mm	0.31 in
Broadcom Limited HDSP-U101	Common Anode	10-DIP	7-Segment	5 mA	37 mW	Red	3.6 mcd	1.7 V	11 mm	0.28 in	0.433 in	7.1 mm	0.197 in	5 mm	645 nm	1	8 mm	0.31 in

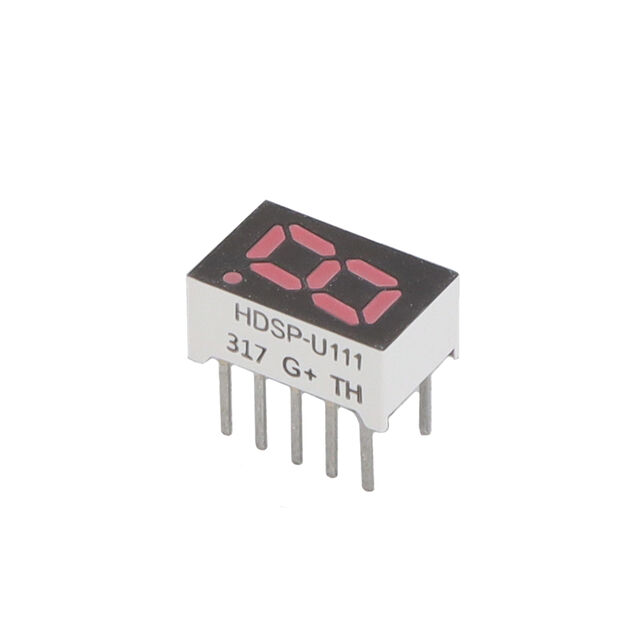

Broadcom Limited HDSP-U111	Common Anode	10-DIP	7-Segment	5 mA	37 mW	Red	3.6 mcd	1.7 V	11 mm	0.28 in	0.433 in	7.1 mm	0.197 in	5 mm	645 nm	1	8 mm	0.31 in
