LB25RKG01 Series
Manufacturer: NKK Switches
Beta
⌘K
STANDARD SIZE PANEL SEAL PUSHBUTTON
| Part | Mechanical Life | Electrical Life | Illumination Voltage (Nominal) | Type | Voltage Rating - AC | Mounting Type | Color - Actuator/Cap | Actuator Marking | Actuator Type | Illumination Type, Color | Voltage Rating - DC | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Termination Style | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 1000000 Cycles | 100000 Cycles | 12 VDC | Illuminated Standard | 28 V | Panel Mount Snap-In | Clear | No Marking | Button Rectangular | Green LED | 28 V | 16.2 mm | 22.4 mm | DPDT | 50 °C | -25 °C | 0.4 VA | Solder Quick Connect - 0.110" (2.8mm) | On-Mom |

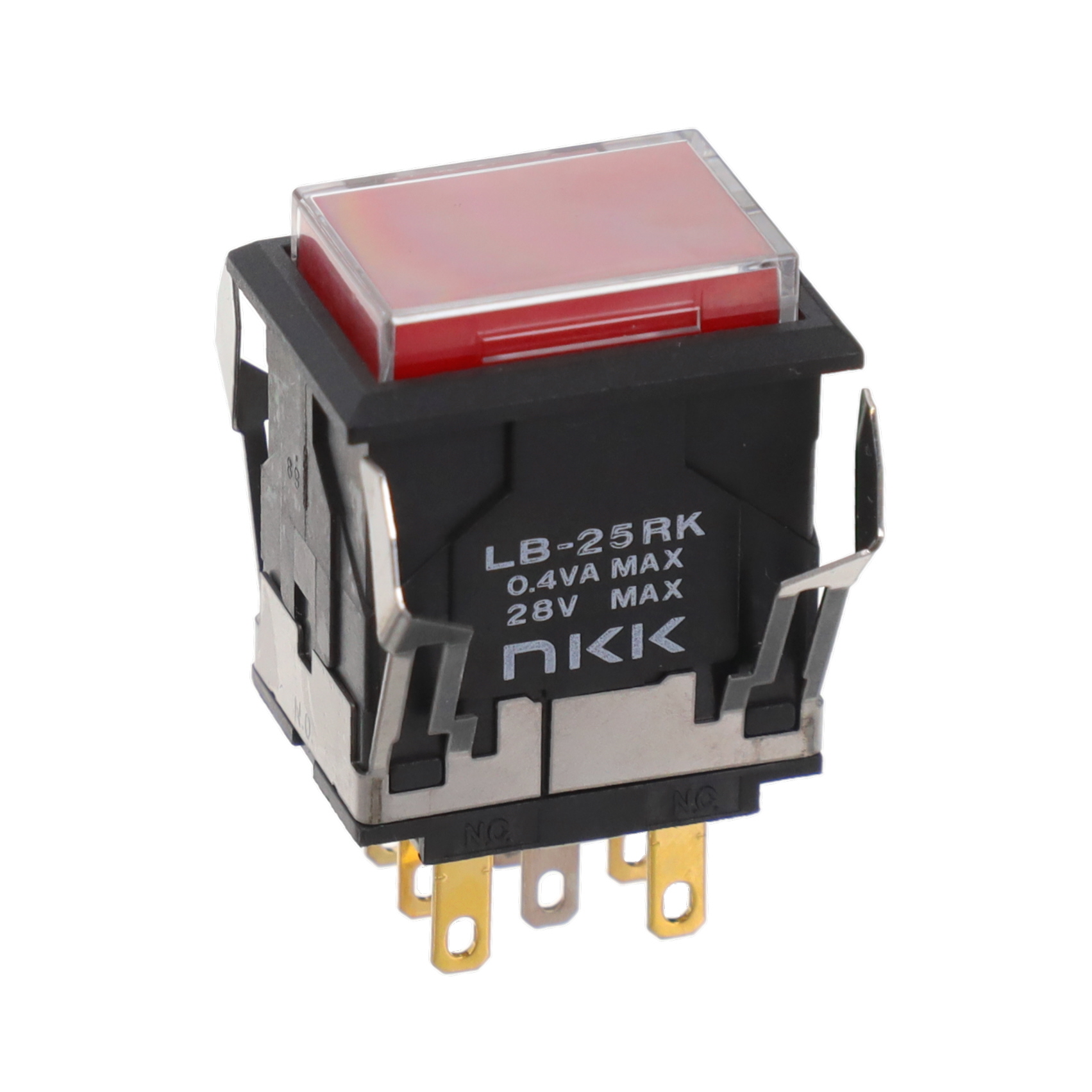

 NKK Switches | 1000000 Cycles | 100000 Cycles | 12 VDC | Illuminated Standard | 28 V | Panel Mount Snap-In | Clear | No Marking | Button Rectangular | LED Red | 28 V | 16.2 mm | 22.4 mm | DPDT | 50 °C | -25 °C | 0.4 VA | Solder Quick Connect - 0.110" (2.8mm) | On-Mom |

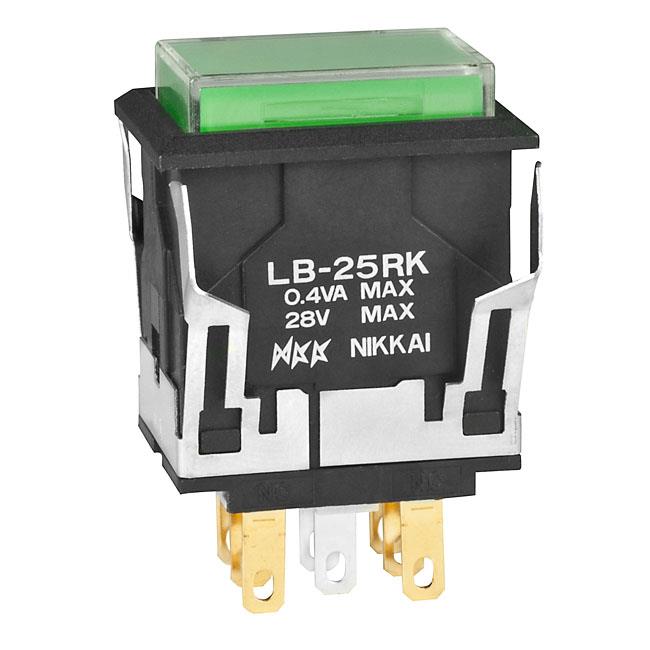

 NKK Switches | 1000000 Cycles | 100000 Cycles | 24 V | Illuminated Standard | 28 V | Panel Mount Snap-In | Clear | No Marking | Button Rectangular | Green LED | 28 V | 16.2 mm | 22.4 mm | DPDT | 50 °C | -25 °C | 0.4 VA | Solder Quick Connect - 0.110" (2.8mm) | On-Mom |
