ATA 10 Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 10W 18-75VIN +/-12V 416MA

Part	Voltage - Output 1	Efficiency	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Mounting Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Approval Agency	Type	Features	Voltage - Output 2	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Voltage - Input (Max) [Max]	Package / Case	Applications	Number of Outputs

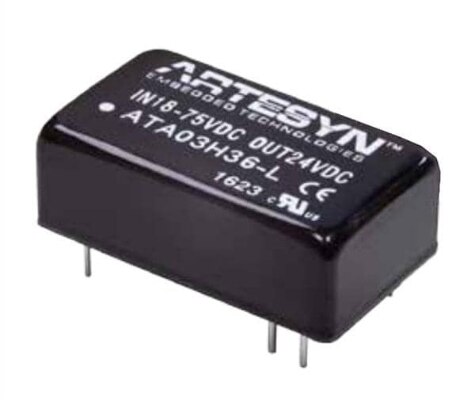

ARTESYN / Advanced Energy ATA03BB36-L	12 V	87 %	416 mA	416 mA	18 V	Through Hole	0.31 "	0.94 in	0.54 in	13.7 mm	23.8 mm	8 mm	CE cURus	Isolated Module	OCP SCP	-12 V	1.5 kV	80 °C	-40 C	10 W	75 V	16-DIP Module 6 Leads	ITE (Commercial)	2
