27T Series

Catalog

POWER INDUCTOR (SMD), 10 ΜH, 700 MA, UNSHIELDED, 2700T SERIES

Part	Shielding	Inductance	Package / Case	Mounting Type	DC Resistance (DCR) [Max]	Current Rating (Amps)	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	DC Resistance (DCR)
Murata Electronics 27T103C	Unshielded	10 µH	Nonstandard	Surface Mount	410 mOhm	700 mA	20 %	125 °C	-40 C	Wirewound	5.4 mm	6.45 mm	0.254 in	0.213 "
Murata Electronics 27T222C	Unshielded	2.2 µH	Nonstandard	Surface Mount	120 mOhm	1.4 A	20 %	125 °C	-40 C	Wirewound	5.4 mm	6.45 mm	0.254 in	0.213 "
Murata Electronics 27T223C	Unshielded	22 µH	Nonstandard	Surface Mount	850 mOhm	0.5 A	20 %	125 °C	-40 C	Wirewound	5.4 mm	6.45 mm	0.254 in	0.213 "
Murata Electronics 27T104C	Unshielded	100 µH	Nonstandard	Surface Mount	3.5 Ohm	0.23 A	20 %	125 °C	-40 C	Wirewound	5.4 mm	6.45 mm	0.254 in	0.213 "
Murata Electronics 27T154C	Unshielded	150 µH	Nonstandard	Surface Mount	5 Ohm	0.17 A	20 %	125 °C	-40 C	Wirewound	5.4 mm	6.45 mm	0.254 in	0.213 "
Murata Electronics 27T333C	Unshielded	33 µH	Nonstandard	Surface Mount	1.3 Ohm	400 mA	20 %	125 °C	-40 C	Wirewound	5.4 mm	6.45 mm	0.254 in	0.213 "

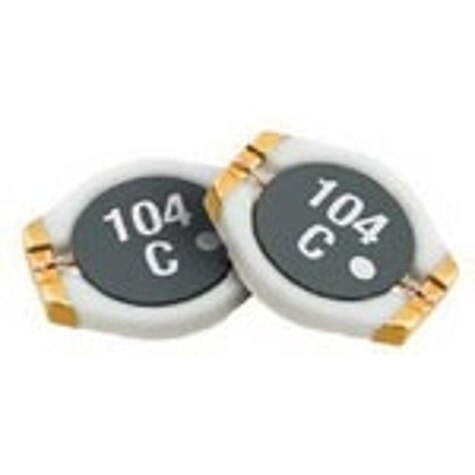

Murata Electronics 27T473C	Unshielded	47 µH	Nonstandard	Surface Mount	1.8 Ohm	320 mA	20 %	125 °C	-40 C	Wirewound	5.4 mm	6.45 mm	0.254 in	0.213 "
Murata Electronics 27T224C	Unshielded	220 µH	Nonstandard	Surface Mount		150 mA	20 %	125 °C	-40 C	Wirewound	5.4 mm	6.45 mm	0.254 in	0.213 "
Murata Electronics 27T332C	Unshielded	3.3 µH	Nonstandard	Surface Mount	160 mOhm	1.2 A	20 %	125 °C	-40 C	Wirewound	5.4 mm	6.45 mm	0.254 in	0.213 "
Murata Electronics 27T683C	Unshielded	68 µH	Nonstandard	Surface Mount		0.28 A	20 %	125 °C	-40 C	Wirewound	5.4 mm	6.45 mm	0.254 in	0.213 "	2.5 Ohm
