430265 Series
Manufacturer: Laird Thermal Systems, Inc.
Beta
⌘K

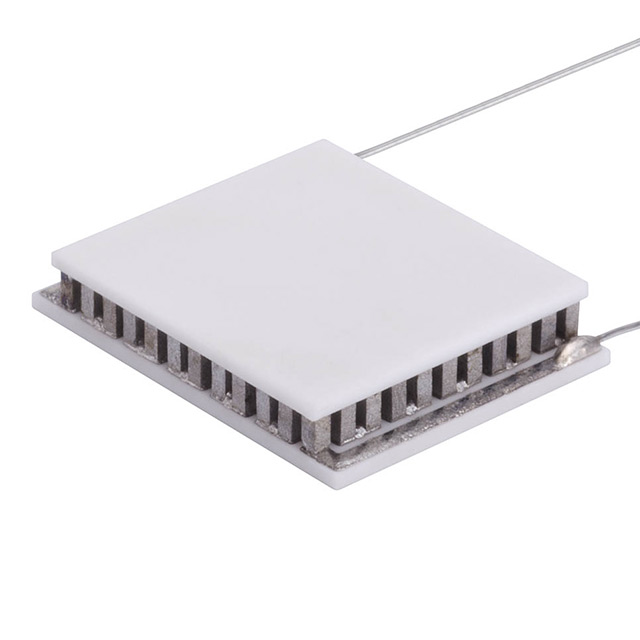

PELTIER OT20,66,F0,1211,11,W2.25
| Part | Resistance | Current - Max [Max] | Delta Tmax @ Th | Size / Dimension [y] | Size / Dimension [x] | Number of Stages | Qmax @ Th | Operating Temperature | Height [z] | Voltage - Max [Max] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Laird Thermal Systems, Inc. | 3.44 Ohms | 2 A | 67 °C | 11.18 mm | 14.22 mm | 1 | 9 W | 80 °C | 2.18 mm | 7.5 V | Lead Wires Non-Sealed |
Laird Thermal Systems, Inc. | 3.44 Ohms | 2 A | 67 °C | 11.18 mm | 14.22 mm | 1 | 9 W | 80 °C | 2.18 mm | 7.5 V | Lead Wires Sealed - Epoxy |
