NPPN132 Series

Catalog

CONN HDR 26POS 0.079 GOLD PCB

Part	Insulation Material	Contact Material	Contact Shape	Contact Finish Thickness - Post	Material Flammability Rating	Contact Finish - Mating	Insulation Height	Insulation Height	Connector Type	Contact Type	Mounting Type	Fastening Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Length - Post [custom]	Contact Length - Post	Number of Rows [custom]	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Number of Positions Loaded	Number of Positions	Contact Length - Post	Insulation Height [z]	Current Rating (Amps)	Insulation Height
Sullins Connector Solutions NPPN132AFEN-RC	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Square	Flash	UL94 V-0	Gold	4.3 mm	0.169 "	Header	Female Socket	Through Hole	Push-Pull	Solder	-40 C	105 ░C	0.079 "	2 mm	Gold	Flash	0.11 in	2.79 mm	2	2 mm	0.079 in	Black	All	26

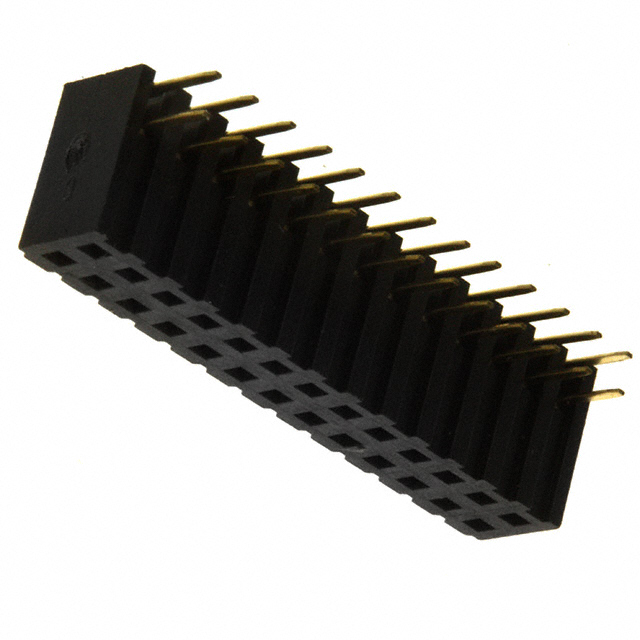

Sullins Connector Solutions NPPN132FJFN-RC	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Square	Flash	UL94 V-0	Gold	4.85 mm		Header	Female Socket	Right Angle Through Hole	Push-Pull	Solder	-40 C	105 ░C	0.079 "	2 mm	Gold	Flash		3 mm	2	2 mm	0.079 in	Black	All	26	0.118 in	0.191 in

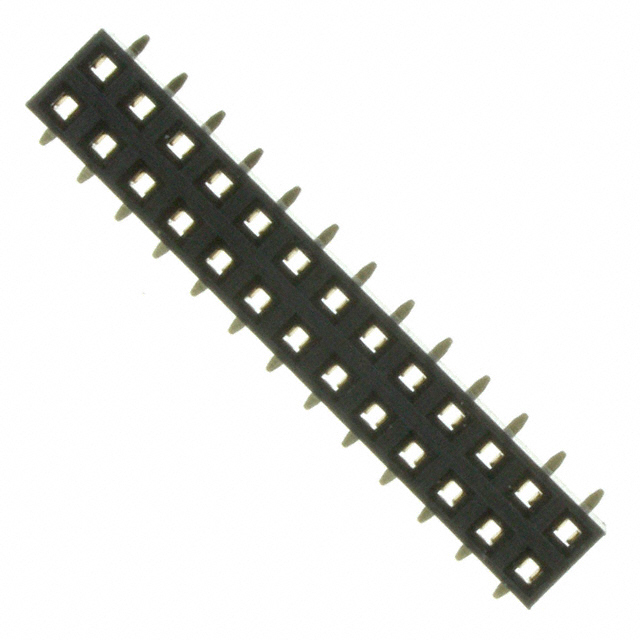

Sullins Connector Solutions NPPN132FFKS-RC	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Square	Flash	UL94 V-0	Gold	0.173 in		Header	Female Socket	Surface Mount	Push-Pull	Solder	-40 C	105 ░C	0.079 "	2 mm	Gold	Flash			2	2 mm	0.079 in	Black	All	26			2 A	4.4 mm
