HLW17S Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

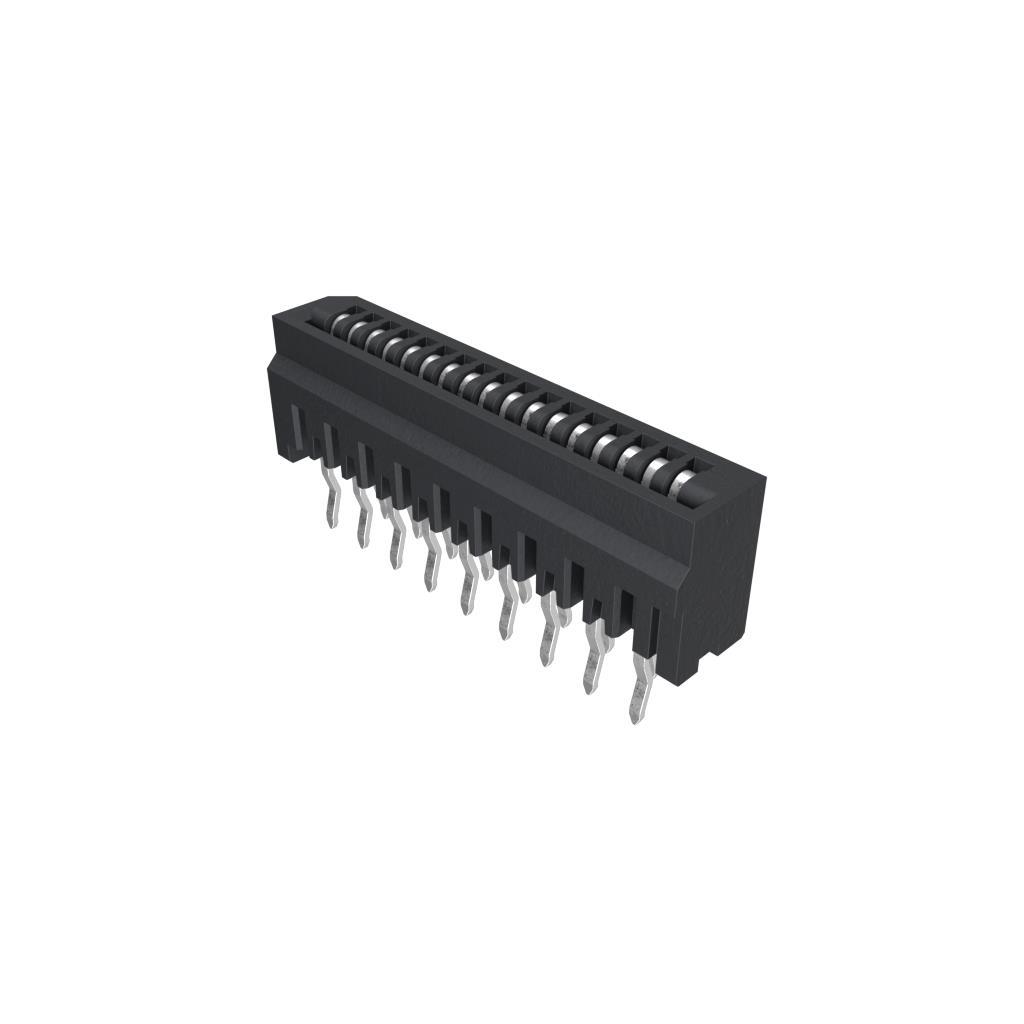

CONN FFC FPC VERT 17POS 1MM PCB
| Part | Housing Color | Mating Cycles | Contact Material | Voltage Rating | Flat Flex Type | Termination | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | FFC, FCB Thickness | Housing Material | Material Flammability Rating | Connector/Contact Type | Height Above Board [z] | Height Above Board [z] | Contact Finish | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Black | 30 | Phosphor Bronze | 100 V | FFC FPC | Kinked Pin | Through Hole | -55 C | 85 °C | 0.33 mm | Polybutylene Terephthalate (PBT) Glass Filled | UL94 V-0 | Contacts Vertical - 1 Sided | 5.9 mm | 0.232 " | Tin | 1 mm | 0.039 in |
