0921-5 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

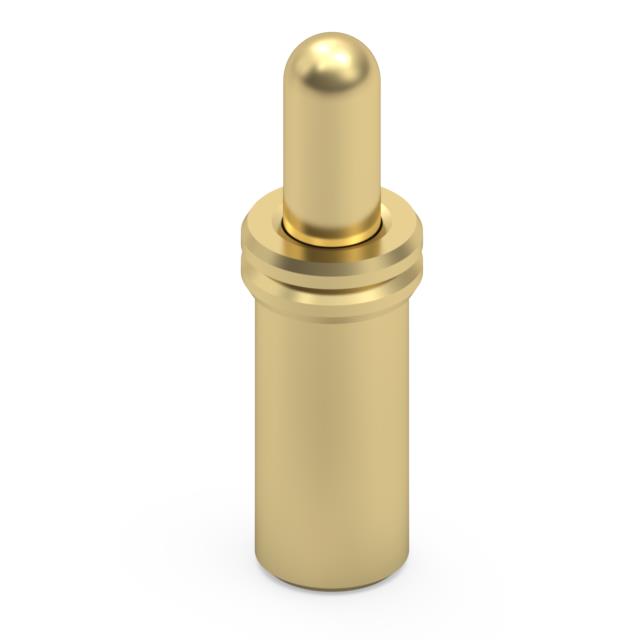

.256" LONG SPRING-LOADED PIN
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Mating Cycles | Maximum Working Height [Max] | Maximum Working Height [Max] | Current Rating (Amps) | Mounting Type | Operating Force - Mid Compression | Contact Type | Contact Finish | Plunger Size [diameter] | Plunger Size [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Brass Alloy | 20 µin | 0.51 µm | 1000000 | 6.5 mm | 0.256 in | 5.6 A | Through Hole | 60 gf | Sleeve & Plunger (Pogo Pins) | Gold | 0.042 in | 1.07 mm |
