SI8710 Series

Catalog

DIGITAL ISOLATOR OPEN COLLECTOR 1-CH 15MBPS 8-PIN SOIC N

Part	Inputs - Side 1/Side 2 [custom]	Package / Case	Package / Case [y]	Package / Case [x]	Supplier Device Package	Technology	Pulse Width Distortion (Max) [Max]	Number of Channels	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Voltage - Isolation	Propagation Delay tpLH / tpHL (Max)	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Channel Type	Operating Temperature [Max]	Operating Temperature [Min]	Data Rate	Common Mode Transient Immunity (Min) [Min]	Type
Skyworks Solutions Inc. SI8710BC-B-IS	1	8-SOIC	3.9 mm	0.154 in	8-SOIC	Capacitive Coupling	20 ns	1	30 VDC	3 V	Surface Mount	3750 Vrms	60 ns	15 ns	5 ns	Unidirectional	125 °C	-40 °C	15 Mbps	35 kV/µs	General Purpose
Skyworks Solutions Inc. SI8710BC-B-ISR	1	8-SOIC	3.9 mm	0.154 in	8-SOIC	Capacitive Coupling	20 ns	1	30 VDC	3 V	Surface Mount	3750 Vrms	60 ns	15 ns	5 ns	Unidirectional	125 °C	-40 °C	15 Mbps	35 kV/µs	General Purpose

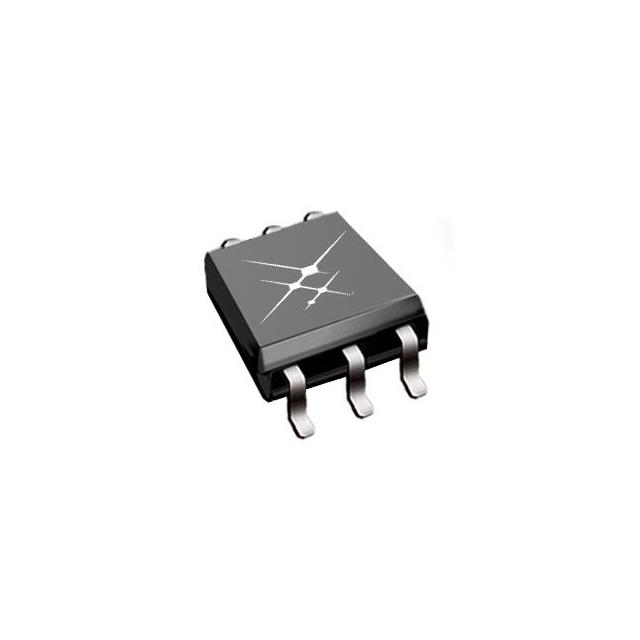

Skyworks Solutions Inc. SI8710AD-B-IS	1	6-SOIC	7.5 mm	0.295 in	6-SDIP Gull Wing	Capacitive Coupling	20 ns	1	30 VDC	3 V	Surface Mount		60 ns	15 ns	5 ns	Unidirectional	125 °C	-40 °C	15 Mbps	20 kV/µs	General Purpose
Skyworks Solutions Inc. SI8710BC-B-IP	1				8-DIP Gull Wing	Capacitive Coupling	20 ns	1	30 VDC	3 V	Surface Mount	3750 Vrms	60 ns	15 ns	5 ns	Unidirectional	125 °C	-40 °C	15 Mbps	35 kV/µs	General Purpose
Skyworks Solutions Inc. SI8710AC-B-IS	1	8-SOIC	3.9 mm	0.154 in	8-SOIC	Capacitive Coupling	20 ns	1	30 VDC	3 V	Surface Mount	3750 Vrms	60 ns	15 ns	5 ns	Unidirectional	125 °C	-40 °C	15 Mbps	20 kV/µs	General Purpose
Skyworks Solutions Inc. SI8710BD-B-IS	1	6-SOIC	7.5 mm	0.295 in	6-SDIP Gull Wing	Capacitive Coupling	20 ns	1	30 VDC	3 V	Surface Mount		60 ns	15 ns	5 ns	Unidirectional	125 °C	-40 °C	15 Mbps	35 kV/µs	General Purpose
Skyworks Solutions Inc. SI8710AD-B-ISR	1	6-SOIC	7.5 mm	0.295 in	6-SDIP Gull Wing	Capacitive Coupling	20 ns	1	30 VDC	3 V	Surface Mount		60 ns	15 ns	5 ns	Unidirectional	125 °C	-40 °C	15 Mbps	20 kV/µs	General Purpose
Skyworks Solutions Inc. SI8710CC-B-IS	1	8-SOIC	3.9 mm	0.154 in	8-SOIC	Capacitive Coupling	20 ns	1	30 VDC	3 V	Surface Mount	3750 Vrms	60 ns	15 ns	5 ns	Unidirectional	125 °C	-40 °C	1 Mbps	20 kV/µs	General Purpose
