CEA27 Series

Catalog

CONN RCPT HSG MALE 6POS PNL MNT

Part	Operating Temperature (Min)	Operating Temperature (Max)	Shielding	Housing Color	Note	Insert Material	Shell Finish	Mounting Feature	Material Flammability Rating	Orientation	Ingress Protection Description	Ingress Protection IP Rating	Fastening Type	Shell Material	Includes Total Count	Includes	Mounting Type	Position Types	Number of Positions	Shell Size - Insert	Type	Connector Type	Contact Shape

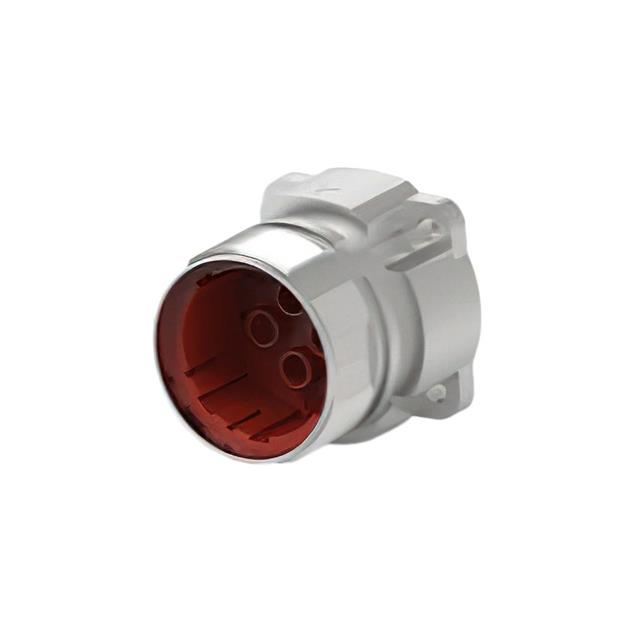

TE Intercontec CEA270N00000030000	-20 °C	130 °C	Unshielded	Silver	Contacts Not Included	Nylon 6/6 PA66 Polyamide	Nickel	Flange	UL94 V-0	Keyed	Dust Tight Water Resistant Waterproof	IP66 IP67	Push-Twist	Zinc Die Cast	2 pcs	Connector O-Ring	Panel Mount	PE Power	6	M40-6	For Male Pins	Receptacle Housing	Circular
TE Intercontec CEA271N00000051000	-20 °C	130 °C	Unshielded	Silver	Contacts Not Included	Nylon 6/6 PA66 Polyamide	Nickel	Flange	UL94 V-0	Keyed	Dust Tight Water Resistant Waterproof	IP66 IP67	Push-Twist	Zinc Die Cast	2 pcs	Connector O-Ring	Panel Mount	PE Power	8	M40-8	For Male Pins	Receptacle Housing	Circular
TE Intercontec CEA270N00000051000	-20 °C	130 °C	Unshielded	Silver	Contacts Not Included	Nylon 6/6 PA66 Polyamide	Nickel	Flange	UL94 V-0	Keyed	Dust Tight Water Resistant Waterproof	IP66 IP67	Push-Twist	Zinc Die Cast	2 pcs	Connector O-Ring	Panel Mount	PE Power	6	M40-6	For Male Pins	Receptacle Housing	Circular

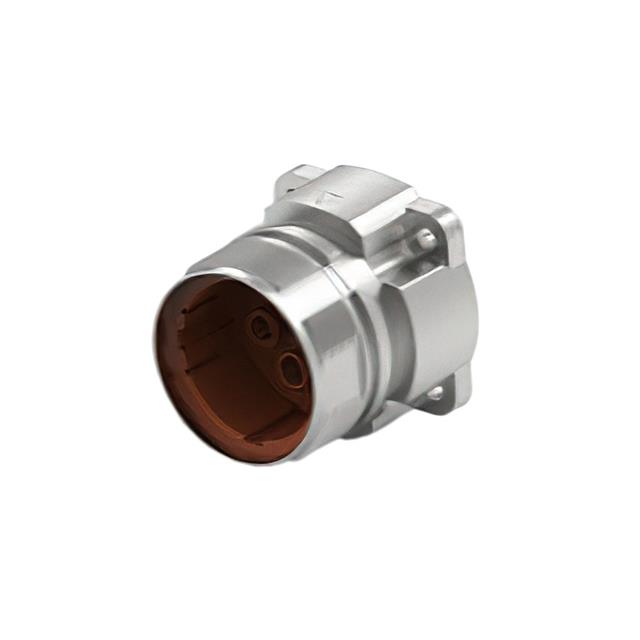

TE Intercontec CEA271N00000030000	-20 °C	130 °C	Unshielded	Silver	Contacts Not Included	Nylon 6/6 PA66 Polyamide	Nickel	Flange	UL94 V-0	Keyed	Dust Tight Water Resistant Waterproof	IP66 IP67	Push-Twist	Zinc Die Cast			Panel Mount	PE Power	8	M40-8	For Male Pins	Receptacle Housing	Circular
