325030 Series
Manufacturer: Curtis Industries
Beta
⌘K

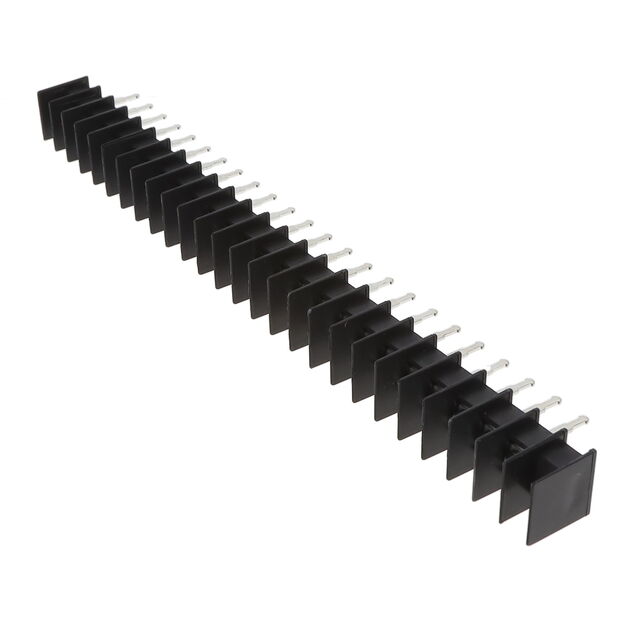

CONN BARRIER STRP 23CIRC 0.325"
| Part | Material - Insulation | Operating Temperature | Terminal Screw Material | Mounting Type | Material Flammability Rating | Number of Wire Entries | Bottom Termination | Terminal Block Type | Pitch | Pitch | Voltage Rating | Number of Circuits [custom] | Top Termination | Barrier Type | Number of Rows | Features | Wire Gauge [Min] | Wire Gauge [Max] | Current Rating (Amps) | Number of Circuits | Number of Wire Entries [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Curtis Industries | Polypropylene (PP) | 105 C | Steel | Chassis Panel | UL94 V-0 | 23 | Solder Turret | Barrier Block | 0.325 in | 8.26 mm | 300 VDC | 23 | Screws | 2 Wall (Dual) | 1 | Flange | 14 AWG | 22 AWG | 15 A | ||
Curtis Industries | Polypropylene (PP) | 105 C | Steel | Chassis Panel | UL94 V-0 | Solder Turret | Barrier Block | 0.325 in | 8.26 mm | 300 VDC | Screws | 2 Wall (Dual) | 1 | Flange | 14 AWG | 22 AWG | 15 A | 7 | 7 | ||
Curtis Industries | Polypropylene (PP) | 105 C | Steel | Chassis Panel | UL94 V-0 | 26 | Solder Turret | Barrier Block | 0.325 in | 8.26 mm | 300 VDC | Screws | 2 Wall (Dual) | 1 | Flange | 14 AWG | 22 AWG | 15 A | 26 | ||
Curtis Industries | Polypropylene (PP) | 105 C | Steel | Chassis Panel | UL94 V-0 | 6 | Solder Turret | Barrier Block | 0.325 in | 8.26 mm | 300 VDC | Screws | 2 Wall (Dual) | 1 | Flange | 14 AWG | 22 AWG | 15 A | 6 | ||
Curtis Industries | Polypropylene (PP) | 105 C | Steel | Chassis Panel | UL94 V-0 | 17 | Solder Turret | Barrier Block | 0.325 in | 8.26 mm | 300 VDC | Screws | 2 Wall (Dual) | 1 | Flange | 14 AWG | 22 AWG | 15 A | 17 | ||
Curtis Industries | Polypropylene (PP) | 105 C | Steel | Chassis Panel | UL94 V-0 | 1 | Solder Turret | Barrier Block | 300 VDC | Screws | 2 Wall (Dual) | 1 | Flange | 14 AWG | 22 AWG | 15 A | 1 | ||||
Curtis Industries | Polypropylene (PP) | 105 C | Steel | Chassis Panel | UL94 V-0 | 5 | Solder Turret | Barrier Block | 0.325 in | 8.26 mm | 300 VDC | Screws | 2 Wall (Dual) | 1 | Flange | 14 AWG | 22 AWG | 15 A | 5 | ||
Curtis Industries | Polypropylene (PP) | 105 C | Steel | Chassis Panel | UL94 V-0 | 13 | Solder Turret | Barrier Block | 0.325 in | 8.26 mm | 300 VDC | Screws | 2 Wall (Dual) | 1 | Flange | 14 AWG | 22 AWG | 15 A | 13 | ||
Curtis Industries | Polypropylene (PP) | 105 C | Steel | Chassis Panel | UL94 V-0 | 11 | Solder Turret | Barrier Block | 0.325 in | 8.26 mm | 300 VDC | Screws | 2 Wall (Dual) | 1 | Flange | 14 AWG | 22 AWG | 15 A | 11 | ||
 Curtis Industries | Polypropylene (PP) | 105 C | Steel | Chassis Panel | UL94 V-0 | Solder Turret | Barrier Block | 0.325 in | 8.26 mm | 300 VDC | Screws | 2 Wall (Dual) | 1 | Flange | 14 AWG | 22 AWG | 15 A | 24 |
