TPA6021A4 Series

2-W, stereo Class-AB audio amplifier with DC volume control & stereo headphone driver

Catalog

2-W, stereo Class-AB audio amplifier with DC volume control & stereo headphone driver

Part	Package / Case	Package / Case	Package / Case	Mounting Type	Max Output Power x Channels @ Load [custom]	Max Output Power x Channels @ Load	Voltage - Supply [Max]	Voltage - Supply [Min]	Type	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Features	Amplifier Type	Board Type	Supplied Contents	Utilized IC / Part
Texas Instruments TPA6021A4N	20-DIP	7.62 mm	0.3 in	Through Hole	2	2 W	5.5 V	4 V	Class AB	20-PDIP	85 °C	-40 °C	2-Channel (Stereo) with Stereo Headphones	Differential Inputs Mute Shutdown Thermal Protection Volume Control

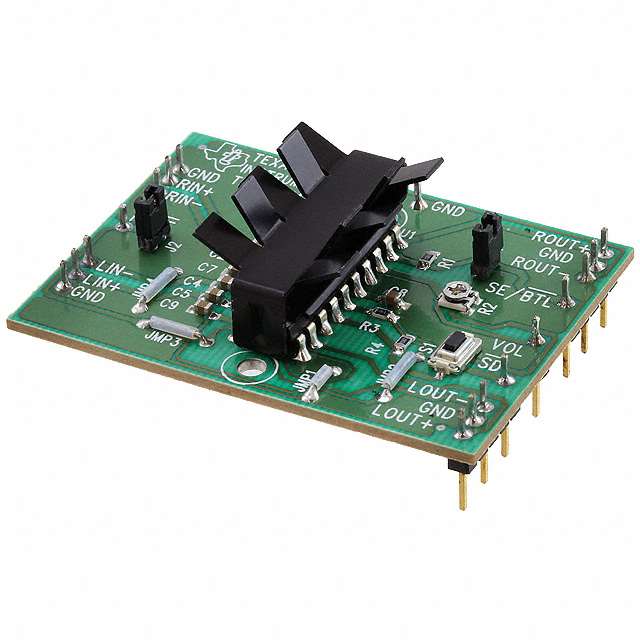

Texas Instruments TPA6021A4EVM					2	2 W	5.5 V	4 V					2-Channel (Stereo) with Stereo Headphones		Class AB	Fully Populated	Board(s)	TPA6021A4

Catalog

2-W, stereo Class-AB audio amplifier with DC volume control & stereo headphone driver

Key Features

• 2 W Into 4-Speakers With External HeatsinkDC Volume Control With 2-dBSteps from -40 dB to 20 dBFade Mode-85-dB Mute ModeDifferential Inputs1-µA Shutdown Current (Typical)Headphone ModeAPPLICATIONSLCD Monitors2 W Into 4-Speakers With External HeatsinkDC Volume Control With 2-dBSteps from -40 dB to 20 dBFade Mode-85-dB Mute ModeDifferential Inputs1-µA Shutdown Current (Typical)Headphone ModeAPPLICATIONSLCD Monitors

Description

The TPA6021A4 is a stereo audio power amplifier that drives 2 W/channel of continuous RMS power into a 4-load when utilizing a heat sink. Advanced dc volume control minimizes external components and allows BTL (speaker) volume control and SE (headphone) volume control. The 20-pin DIP package allows for the use of a heatsink which provides higher output power. To ensure a smooth transition between active and shutdown modes, a fade mode ramps the volume up and down. The TPA6021A4 is a stereo audio power amplifier that drives 2 W/channel of continuous RMS power into a 4-load when utilizing a heat sink. Advanced dc volume control minimizes external components and allows BTL (speaker) volume control and SE (headphone) volume control. The 20-pin DIP package allows for the use of a heatsink which provides higher output power. To ensure a smooth transition between active and shutdown modes, a fade mode ramps the volume up and down.
