GWCS8PM1.E Series

Catalog

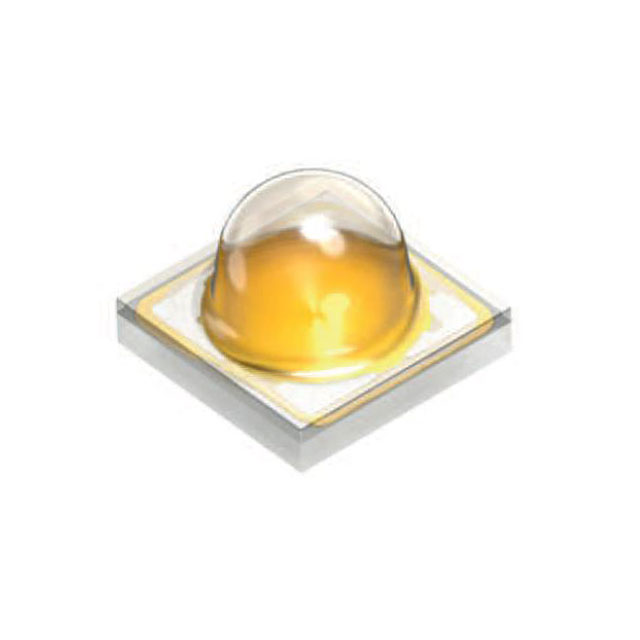

LED OSLON NEUTRAL WHT 4500K SMD

Part	Thermal Resistance of Package	Supplier Device Package	CRI (Color Rendering Index)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Flux @ 85°C, Current - Test [Max]	Flux @ 85°C, Current - Test [Min]	Flux @ 85°C, Current - Test	Lumens/Watt @ Current - Test	Current - Test	Color	Voltage - Forward (Vf) (Typ)	Viewing Angle	Current - Max [Max]	Package / Case	Package / Case	CCT (K)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
ams-OSRAM USA INC. GW CS8PM1.EM-LQLS-XX54-1	5.25 °C/W	SMD	80	3 mm	0.118 in	3 mm	0.118 "	Surface Mount	150 lm	121 lm	136 lm	136 lm/W	350 mA	Neutral White	2.85 V	80 °	1.3 A	3030 Metric	1212
ams-OSRAM USA INC. GW CS8PM1.EM-LPLR-XX57-1-350-R18	5.25 °C/W	SMD	80	3 mm	0.118 in	3 mm	0.118 "	Surface Mount	140 lm	112 lm		126 lm/W	350 mA	Warm White	2.85 V	80 °	1.3 A	3030 Metric	1212	3000 K
ams-OSRAM USA INC. GW CS8PM1.EM-LRLT-A333-1-350-R18	5.25 °C/W	SMD	80	3 mm	0.118 in	3 mm	0.118 "	Surface Mount	164 lm	130 lm	147 lm	147 lm/W	350 mA	Cool White	2.85 V	80 °	1 A	3030 Metric	1212	5000 K
ams-OSRAM USA INC. GW CS8PM1.EM-LPLR-XX58-1-350-R18	5.25 °C/W	SMD	80	3 mm	0.118 in	3 mm	0.118 "	Surface Mount	140 lm	112 lm		126 lm/W	350 mA	Warm White	2.85 V	80 °	1.3 A	3030 Metric	1212	2700 K
ams-OSRAM USA INC. GW CS8PM1.EM-LQLS-XX55-1-350-R18	5.25 °C/W	SMD	80	3 mm	0.118 in	3 mm	0.118 "	Surface Mount	150 lm	121 lm	136 lm	136 lm/W	350 mA	Neutral White	2.85 V	80 °	1.3 A	3030 Metric	1212	4000 K
ams-OSRAM USA INC. GW CS8PM1.EM-LPLR-A636-1-350-R18	5.25 °C/W	SMD	80	3 mm	0.118 in	3 mm	0.118 "	Surface Mount	140 lm	112 lm		126 lm/W	350 mA	Warm White	2.85 V	80 °	1.3 A		2-SMD No Lead	3500 K
ams-OSRAM USA INC. GW CS8PM1.EM-KULQ-XX59-1-350-R18	5.25 °C/W	1212 SMD	80	3 mm	0.118 in	3 mm	0.118 "	Surface Mount	130 lm	104 lm	117 lm	117 lm/W	350 mA	Warm White	2.85 V	80 °	1.3 A	3030 Metric	1212 2-SMD No Lead	2500 K	2.3 mm	0.091 in
ams-OSRAM USA INC. GW CS8PM1.EM-LQLS-A535-1-350-R18		SMD	80	3 mm	0.118 in	3 mm	0.118 "	Surface Mount	150 lm	121 lm	136 lm	136 lm/W	350 mA	Neutral White	2.85 V	80 °	1.3 A	3030 Metric	1212	4000 K	2.3 mm	0.091 in
ams-OSRAM USA INC. GW CS8PM1.EM-LQLS-XX53-1-350-R18	5.25 °C/W	SMD	80	3 mm	0.118 in	3 mm	0.118 "	Surface Mount	150 lm	121 lm	136 lm	136 lm/W	350 mA	Cool White	2.85 V	80 °	1.3 A	3030 Metric	1212	5000 K
ams-OSRAM USA INC. GW CS8PM1.EM-LQLS-A333-1-350-R18	5.25 °C/W	SMD	80	3 mm	0.118 in	3 mm	0.118 "	Surface Mount	150 lm	121 lm	136 lm	136 lm/W	350 mA	Cool White	2.85 V	80 °	1.3 A	3030 Metric	1212	5000 K
