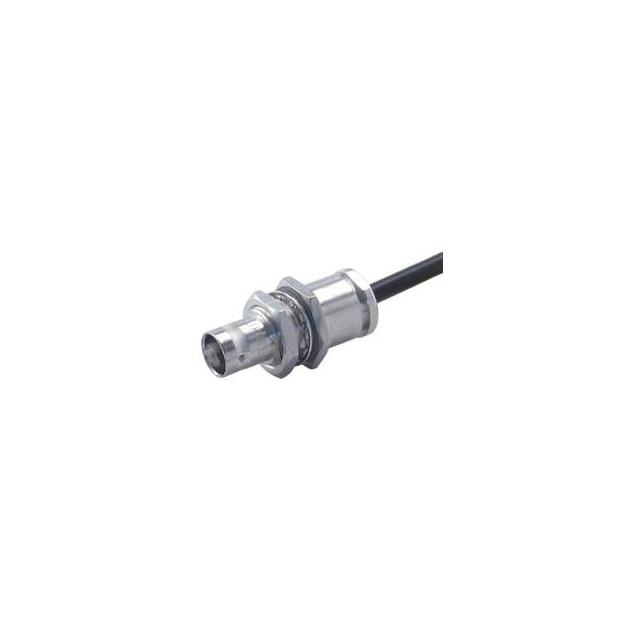

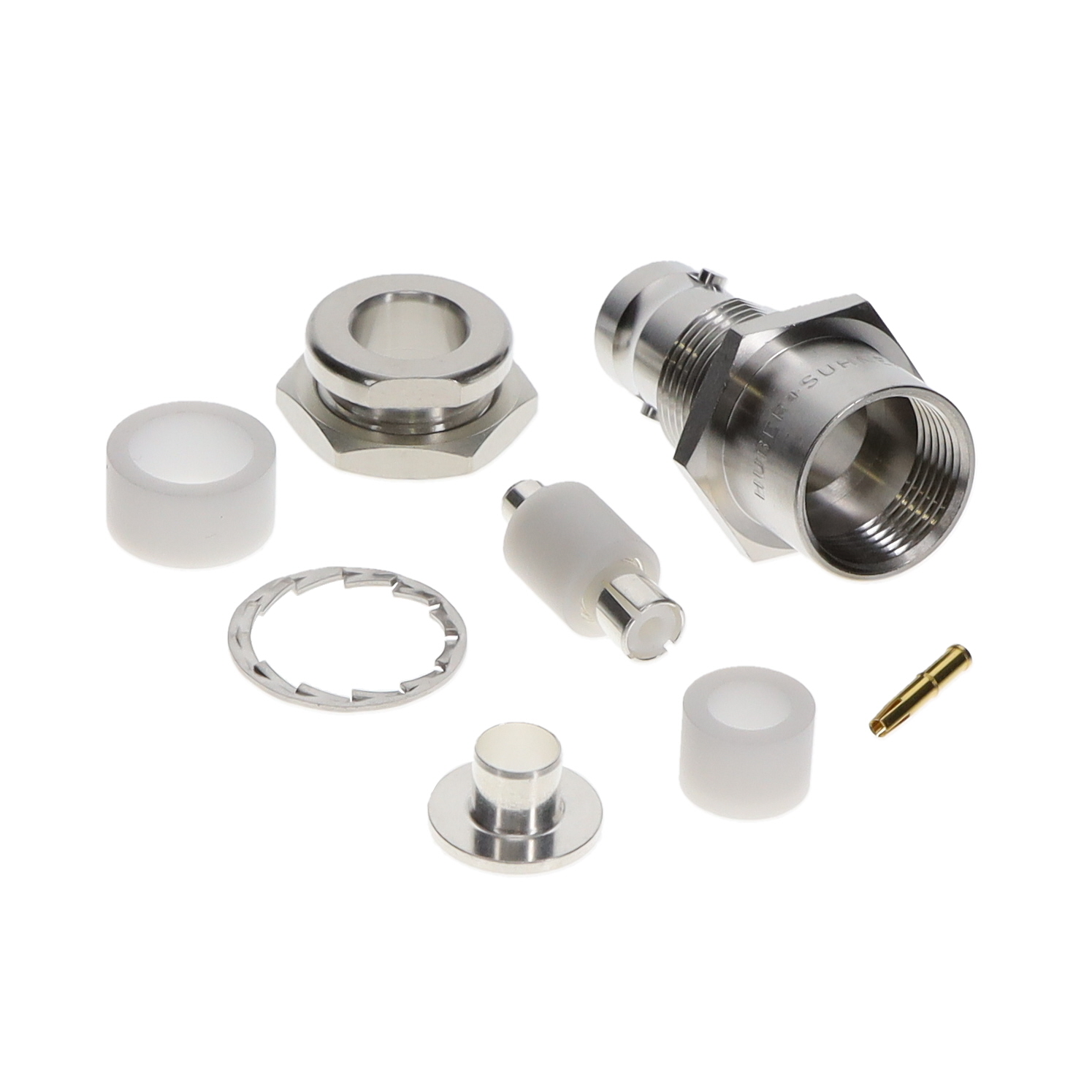

24_BNT-50 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K
RF CONNECTORS / COAXIAL CONNECTORS BMT STRAIGHT BULKHEAD CABLE JACK(F)
| Part | Body Finish | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Plating | Dielectric Material | Body Material | Impedance | Shield Termination | Connector Style | Fastening Type | Mounting Type | Connector Type | Number of Ports | Frequency - Max [Max] | Contact Termination | Housing Color | Center Contact Material | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | Silver | 125 °C | -50 °C | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Bronze | 50 Ohms | Clamp | BNT | Bayonet Lock | Panel Mount | Female Socket Jack | 1 | 3 GHz | Solder | Silver | Beryllium Copper | Bulkhead - Front Side Nut |
 Huber+Suhner, Inc. | White Bronze | 125 °C | -50 °C | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Brass | 50 Ohms | Clamp | BNT | Bayonet Lock | Panel Mount | Female Socket Jack | 1 | 3 GHz | Solder | Silver | Beryllium Copper | Bulkhead - Front Side Nut |
