APD-2 Series

Catalog

CONN PLUG HSG MALE 51POS INLINE

Part	Connector Type	Shell Material	Ingress Protection	Features	Fastening Type	Shielding	Note	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Orientation [custom]	Insert Material [custom]	Type	Contact Shape	Mounting Type	Contact Type	Mounting Feature	Contact Size
ITT Cannon, LLC APD-2BP51	Plug Housing	Polybutylene Terephthalate (PBT) Glass Filled	IP67/IP69K	Coupling Nut	Bayonet Lock	Unshielded	Contacts Not Included	Black Yellow	125 °C	-40 C	51	2	Polybutylene Terephthalate (PBT) Glass Filled	For Male Pins	Circular	Free Hanging (In-Line)	Crimp
ITT Cannon, LLC APD-2BP19S	Receptacle Housing	Polybutylene Terephthalate (PBT) Glass Filled	IP67 - Dust Tight Waterproof		Bayonet Lock	Unshielded	Contacts Not Included	Black Gray	125 °C	-40 C	19	2	Polybutylene Terephthalate (PBT) Glass Filled	For Male Pins	Circular	Free Hanging (In-Line)	Crimp
ITT Cannon, LLC APD-2SS51	Receptacle Housing	Polybutylene Terephthalate (PBT) Glass Filled	IP67/IP69K		Bayonet Lock	Unshielded	Contacts Not Included	Yellow	125 °C	-40 C	51	2	Polybutylene Terephthalate (PBT) Glass Filled	For Female Sockets	Circular	Panel Mount	Crimp	Bulkhead

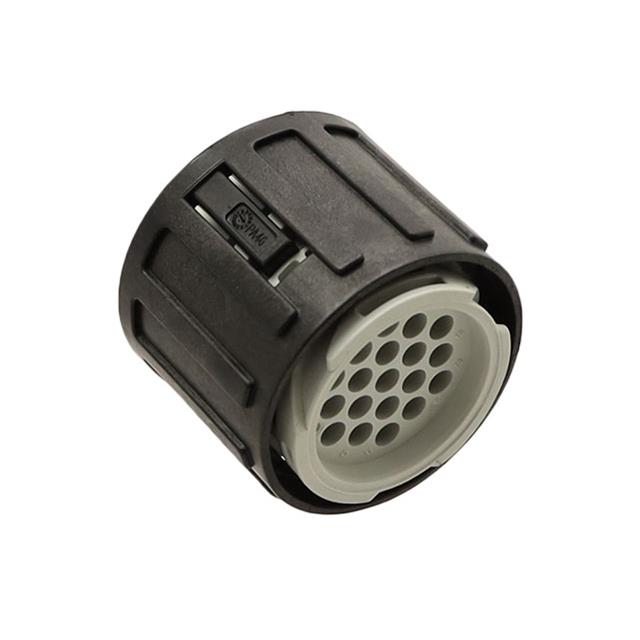

ITT Cannon, LLC APD-2BS19S	Plug Housing	Polybutylene Terephthalate (PBT) Glass Filled	IP67 - Dust Tight Waterproof	Coupling Nut	Bayonet Lock	Unshielded	Contacts Not Included	Black Gray	125 °C	-40 C	19	2	Polybutylene Terephthalate (PBT) Glass Filled	For Female Sockets	Circular	Free Hanging (In-Line)	Crimp
ITT Cannon, LLC APD-2SS51-S	Receptacle Housing	Polybutylene Terephthalate (PBT) Glass Filled	IP67/IP69K		Bayonet Lock	Unshielded	Contacts Not Included	Yellow	125 °C	-40 C	51	2	Polybutylene Terephthalate (PBT) Glass Filled	For Female Sockets	Circular	Panel Mount	Crimp	Bulkhead
ITT Cannon, LLC APD-2BS-K2	Plug Housing	Polybutylene Terephthalate (PBT) Glass Filled	IP67 - Dust Tight Waterproof	Coupling Nut	Bayonet Lock	Unshielded	Contacts Not Included	Black Gray	125 °C	-40 C	4	2	Polybutylene Terephthalate (PBT) Glass Filled	For Female Sockets	Circular	Free Hanging (In-Line)	Crimp		2.5 mm

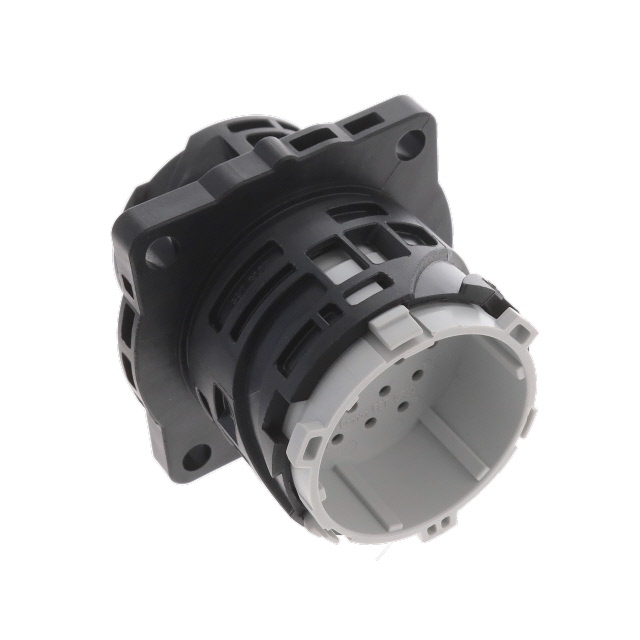

ITT Cannon, LLC APD-2AP19S	Receptacle Housing	Polybutylene Terephthalate (PBT) Glass Filled	IP67 - Dust Tight Waterproof		Bayonet Lock	Unshielded	Contacts Not Included	Black Gray	125 °C	-40 C	19	2	Polybutylene Terephthalate (PBT) Glass Filled	For Male Pins	Circular	Panel Mount	Crimp	Flange
ITT Cannon, LLC APD-2BP51-SN	Plug Housing	Polybutylene Terephthalate (PBT) Glass Filled	IP67/IP69K	Coupling Nut	Bayonet Lock	Unshielded	Contacts Not Included	Black Yellow	125 °C	-40 C	51	2	Polybutylene Terephthalate (PBT) Glass Filled	For Male Pins	Circular	Free Hanging (In-Line)	Crimp
