7136WS Series
Manufacturer: Belden Inc.
Beta
⌘K

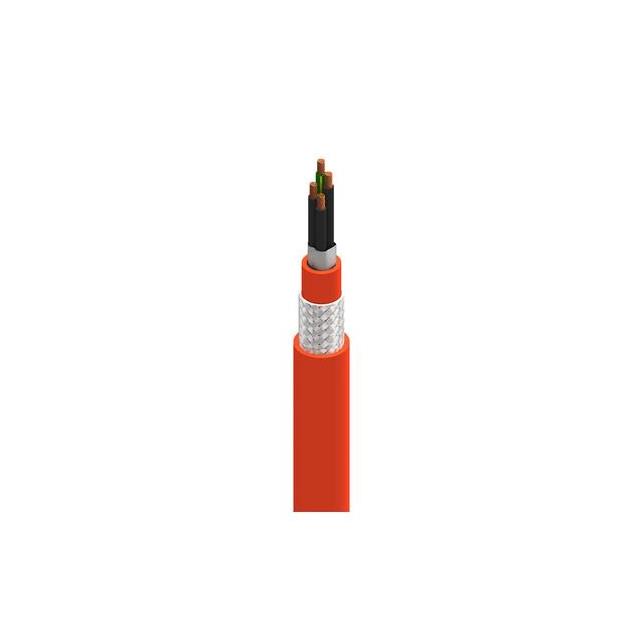

CABLE 4COND 14AWG ORG SHLD
| Part | Shield Coverage | Shield Material | Wire Gauge | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Conductor Insulation | Conductor Insulation | Conductor Insulation | Features | Conductor Material | Jacket (Insulation) Material | Cable Type | Jacket Color | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 85 % | Copper Tinned | 14.5 AWG | 4 | 12.4 mm | 0.488 in | Braid | Polyamide (PA) | Nylon | Poly-Vinyl Chloride (PVC) | Oil Resistant UV Resistant | Copper Bare | Thermoplastic Elastomer (TPE) | Multi-Conductor | Orange | 304.8 m | 1000 ft | 38 | 266 strands | UL Style 20328 | 0.053 " | 1.346 mm |
