4DUC51016 Series

Manufacturer: Tamura

Catalog

IC GATE DRVR HALF-BRIDGE MODULE

Part	Package / Case	High Side Voltage - Max (Bootstrap) [Max]	Gate Type	Driven Configuration	Mounting Type	Input Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Number of Drivers	Channel Type

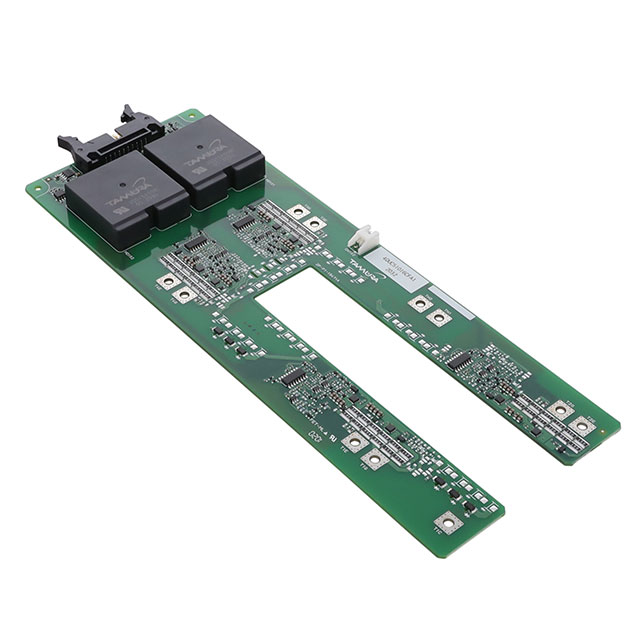

Tamura 4DUC51016CFA1	Module	1.2 kV	IGBT	Half-Bridge	Chassis Mount	Non-Inverting	28 V	13 V	85 C	-40 ¯C	Module	4	Synchronous

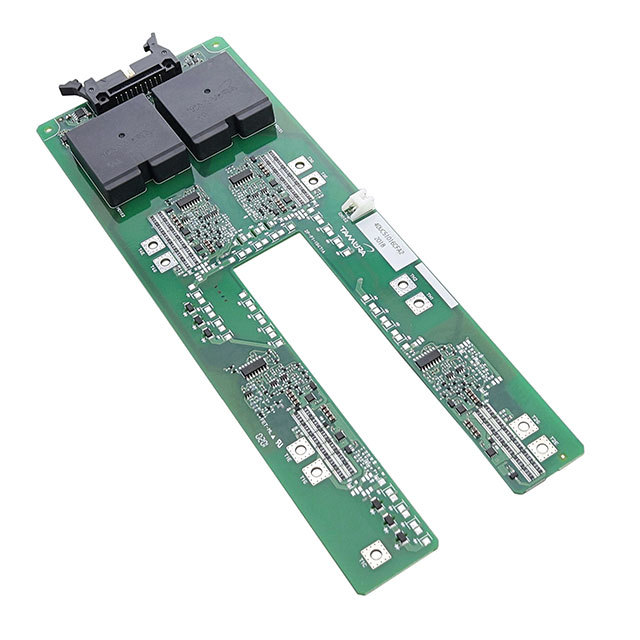

Tamura 4DUC51016CFA2	Module	1.2 kV	IGBT	Half-Bridge	Chassis Mount	Non-Inverting	28 V	13 V	85 C	-40 ¯C	Module	4	Synchronous

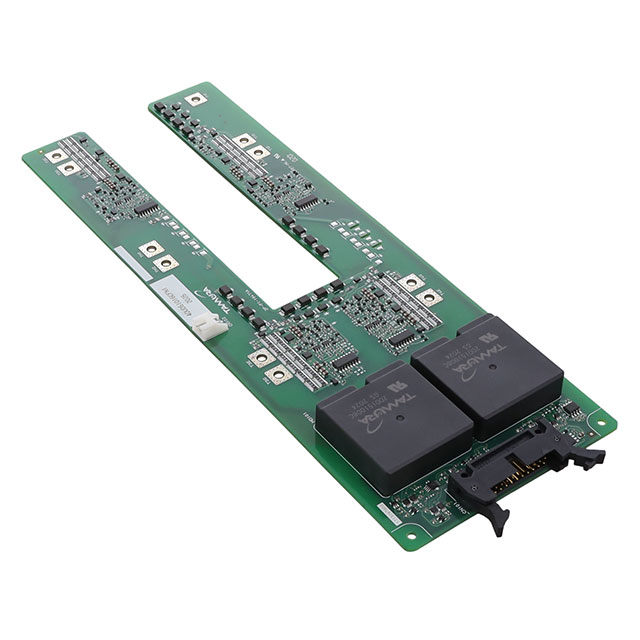

Tamura 4DUD51016CFN1	Module	1.2 kV	IGBT	Half-Bridge	Chassis Mount	Non-Inverting	28 V	13 V	85 C	-40 ¯C	Module	4	Synchronous
